Park Lamp Control and Right Park Lamps
Park Lamp Control and Right Park Lamps

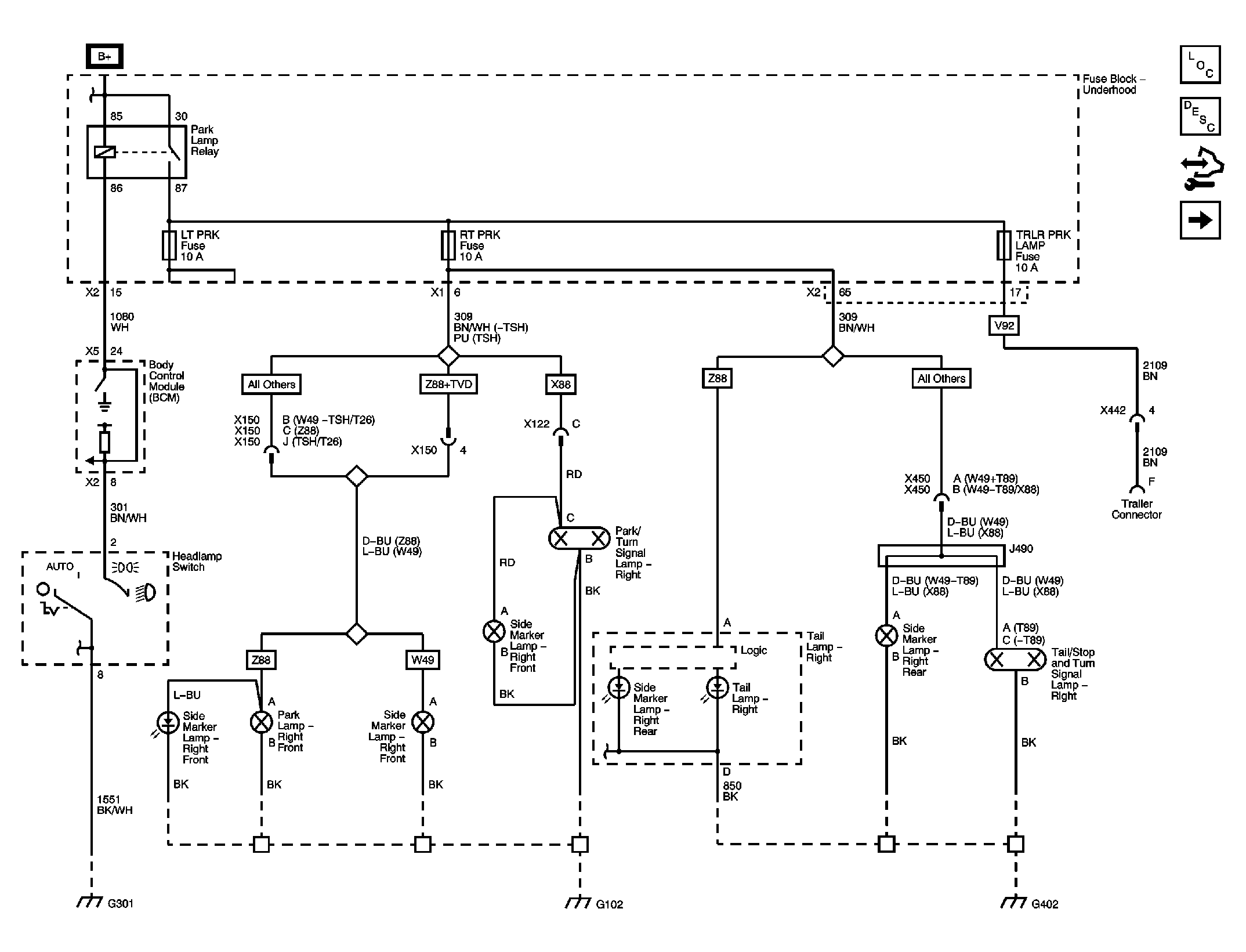

Fig 1: Park Lamp Control and Right Park Lamps Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
