Rear License Plate Lamp Bulb Replacement (Acadia)
Rear License Plate Lamp Bulb Replacement (Acadia)

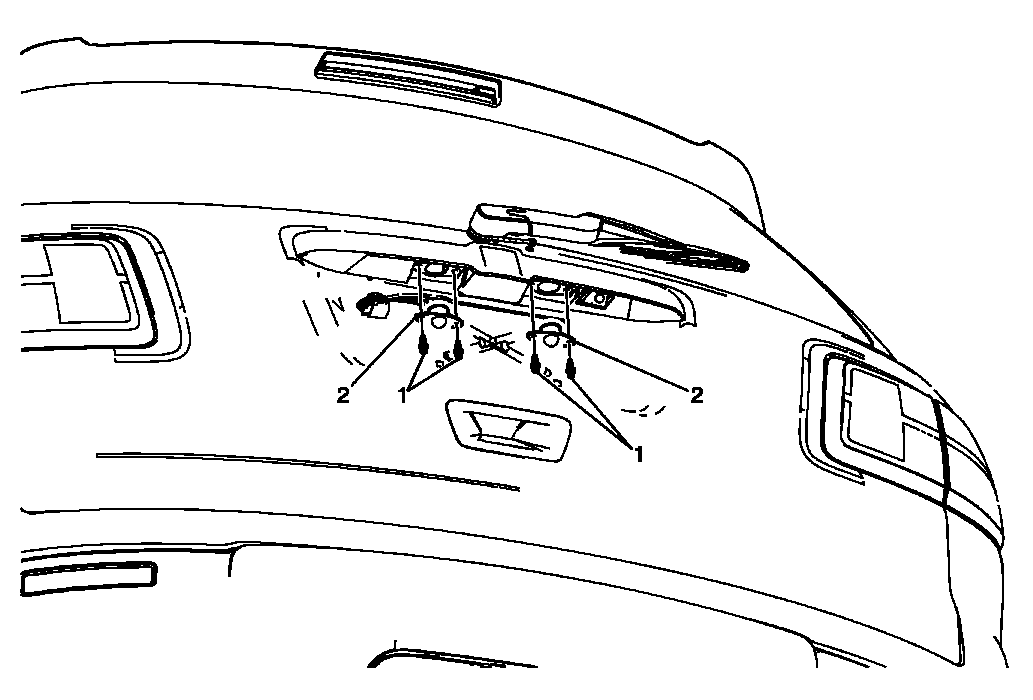

| Callout | Component Name |
|---|---|
| 1 | Rear License Plate Lamp Screws (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Rear License Plate Lamp (Qty: 2) Procedure Pull the lamps downward and disconnect the bulb from the lamp sockets. |
