Secondary Air Injection Pump Pipe Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

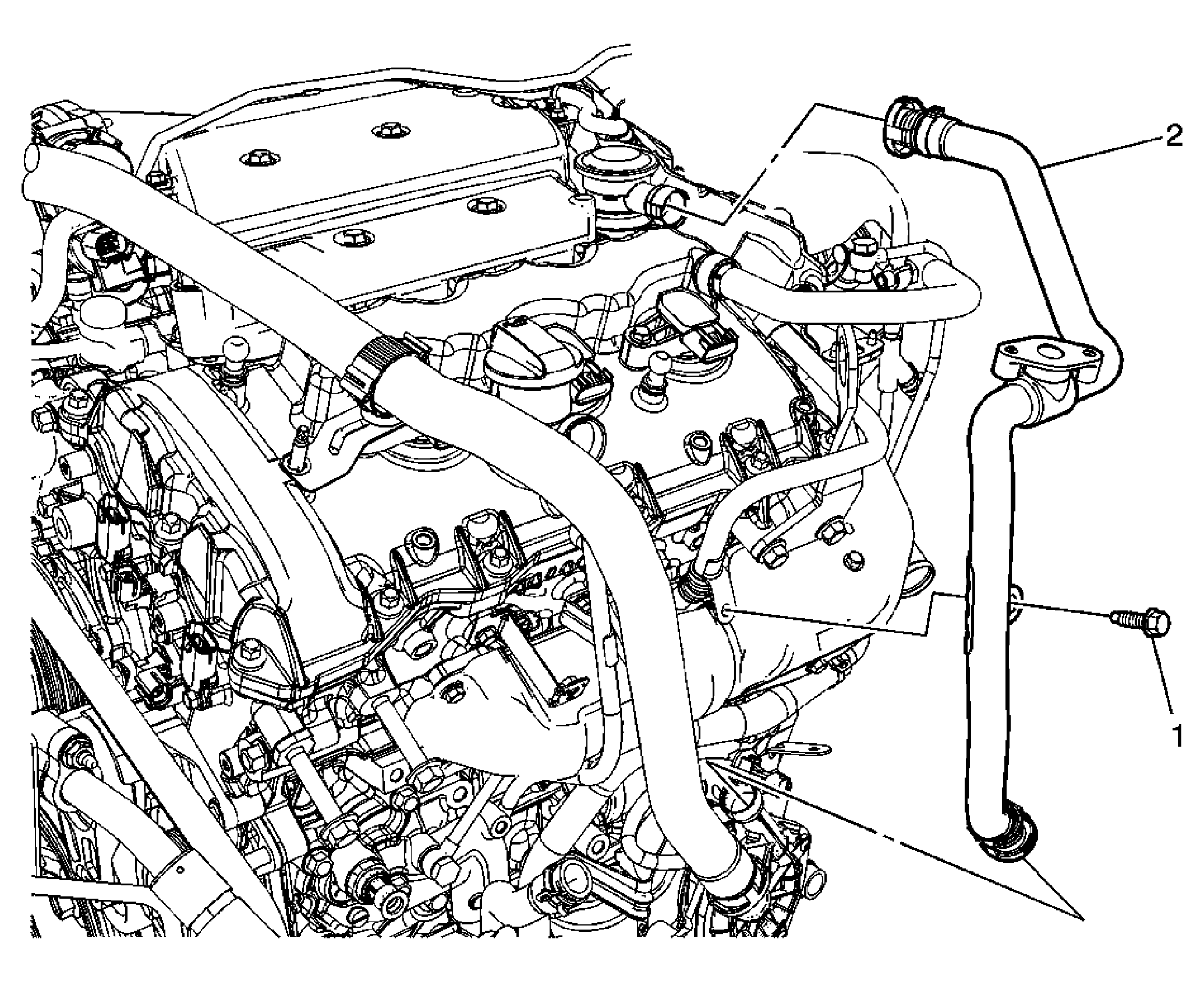

Fig 1: Identifying Secondary Air Injection Pump Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the secondary injection shutoff valve pressure sensor. Refer to Secondary Injection Shutoff Valve Pressure Sensor Replacement . Disconnect the air pump connectors. Refer to Plastic Collar Quick Connect Fitting Service .
1	Secondary Air Injection Pump Pipe Fastener CAUTION: Refer to Fastener Caution Tighten: 10 N.m (89 lb in)
2	Secondary Air Injection Pump Pipe

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Remove the secondary injection shutoff valve pressure sensor. Refer to Secondary Injection Shutoff Valve Pressure Sensor Replacement .
Disconnect the air pump connectors. Refer to Plastic Collar Quick Connect Fitting Service .

Secondary Air Injection Pump Pipe Fastener

CAUTION: Refer to Fastener Caution

Tighten: 10 N.m (89 lb in)

Secondary Air Injection Pump Pipe
