Camshaft Position Actuator Solenoid Valve Solenoid Replacement - Bank 2 (Left Side) Intake
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

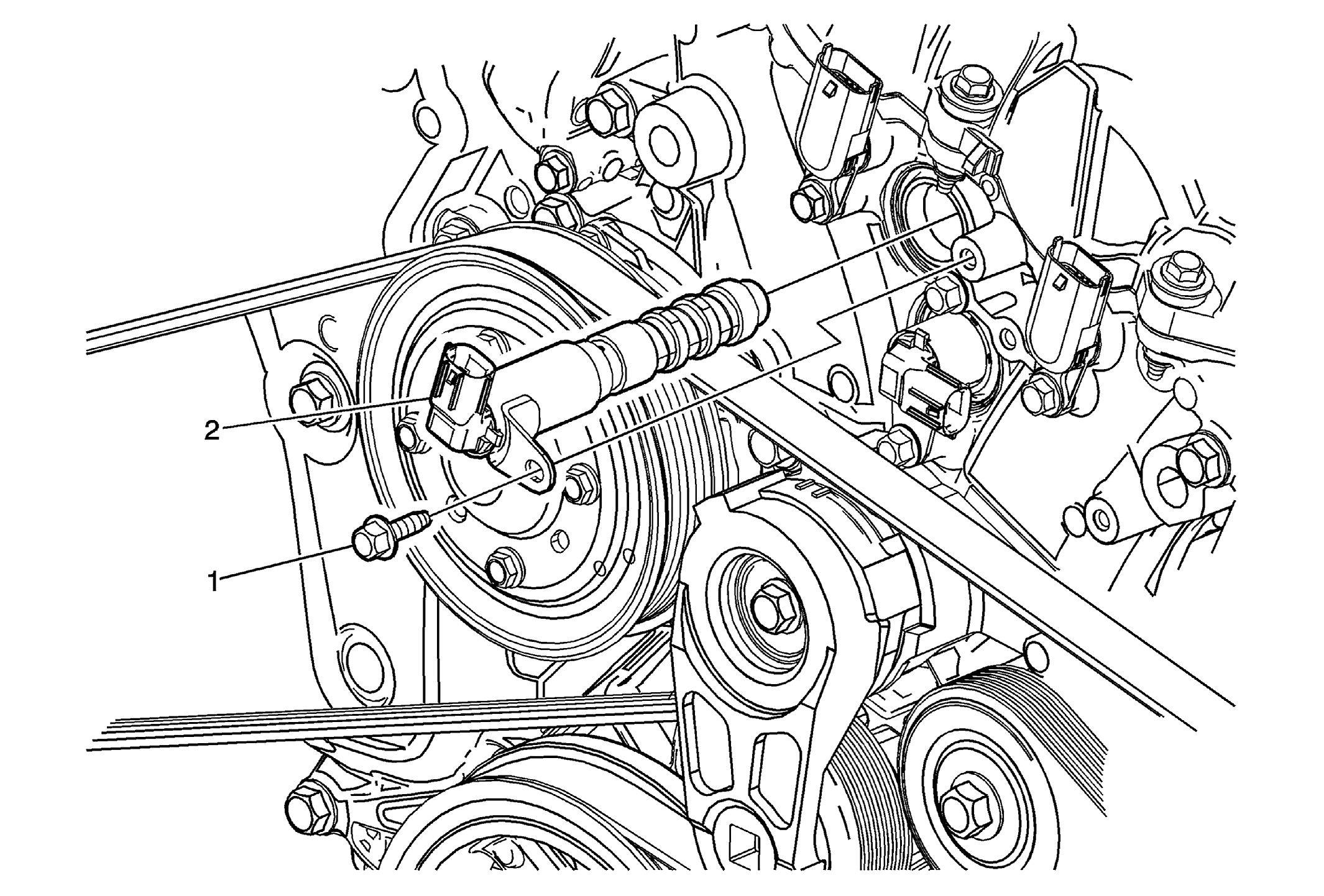

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side . |
|
| 1 | Camshaft Position Actuator Solenoid Valve Fastener
CAUTION:
Refer to Fastener Caution
. Procedure: Disconnect the electrical connector. Tighten: 10 N.m (89 lb in) |
| 2 | Camshaft Position Actuator Solenoid Valve |
