Exhaust Manifold Heat Shield Replacement - Right Side (LAU)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

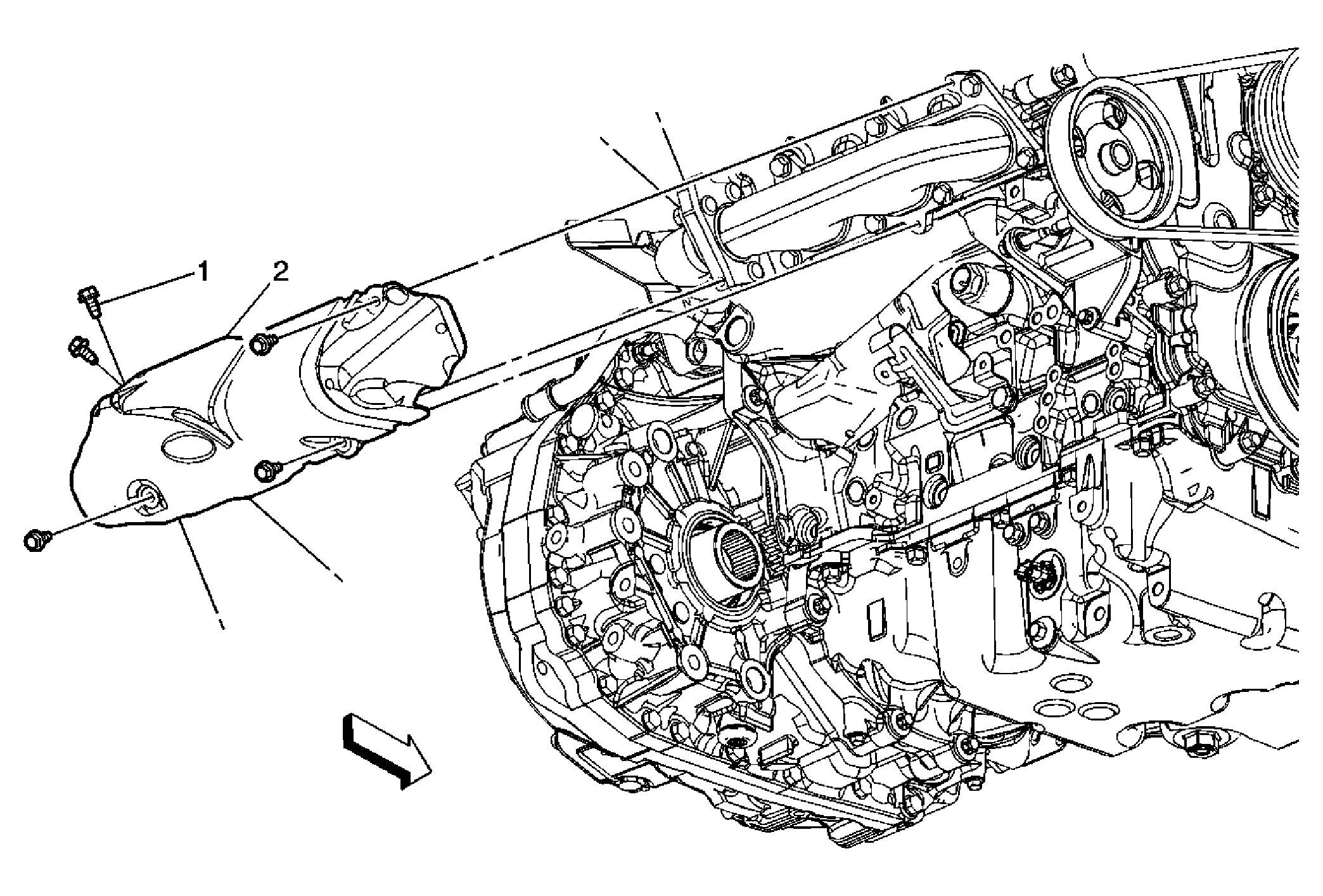

Fig 1: Identifying Exhaust Manifold Heat Shield - Right Side (LAU)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the catalytic converter. Refer to Catalytic Converter Replacement (LAU) .
1	Exhaust Manifold Heat Shield Bolt (Qty: 5) WARNING: Refer to Hot Exhaust System Warning . CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (7 lb ft)
2	Exhaust Manifold Heat Shield

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the catalytic converter. Refer to Catalytic Converter Replacement (LAU) .

Exhaust Manifold Heat Shield Bolt (Qty: 5)

WARNING: Refer to Hot Exhaust System Warning .

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (7 lb ft)

Exhaust Manifold Heat Shield
