Exhaust Flexible Pipe Replacement (LF1- Service)
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

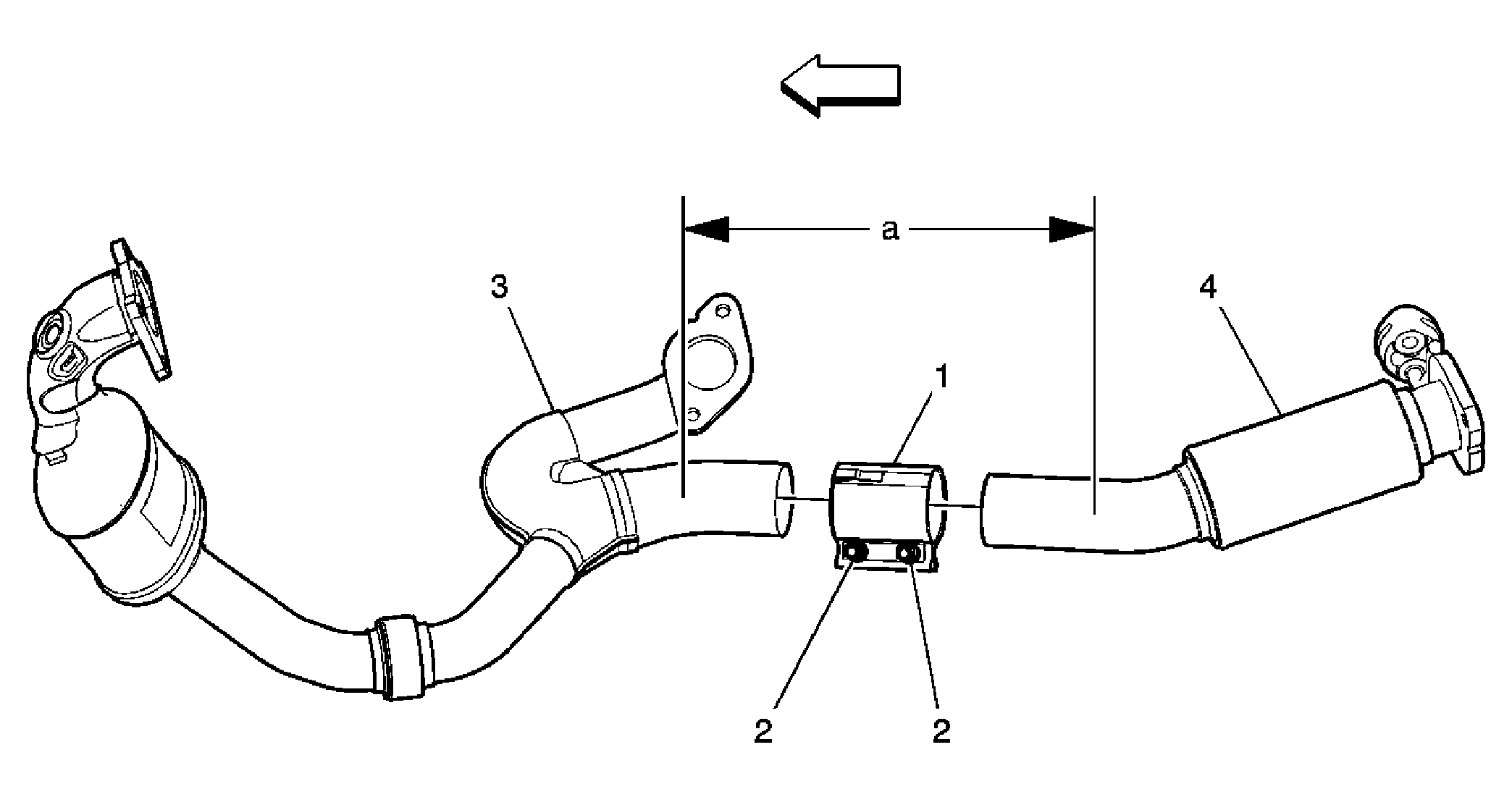

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Service Exhaust Clamp
WARNING:
Refer to Exhaust Service Warning
.
CAUTION:
Refer to Fastener Caution
. Procedure: Cut the exhaust flex pipe in the center of the straight pipe (a). |
| 2 | Nut (Qty: 2) Tighten: 48 N.m (35 lb ft) |
| 3 | Exhaust Flex Pipe (Y-Pipe) |
| 4 | Exhaust Flex Pipe |
