Exhaust Flexible Pipe Replacement (LAU)
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

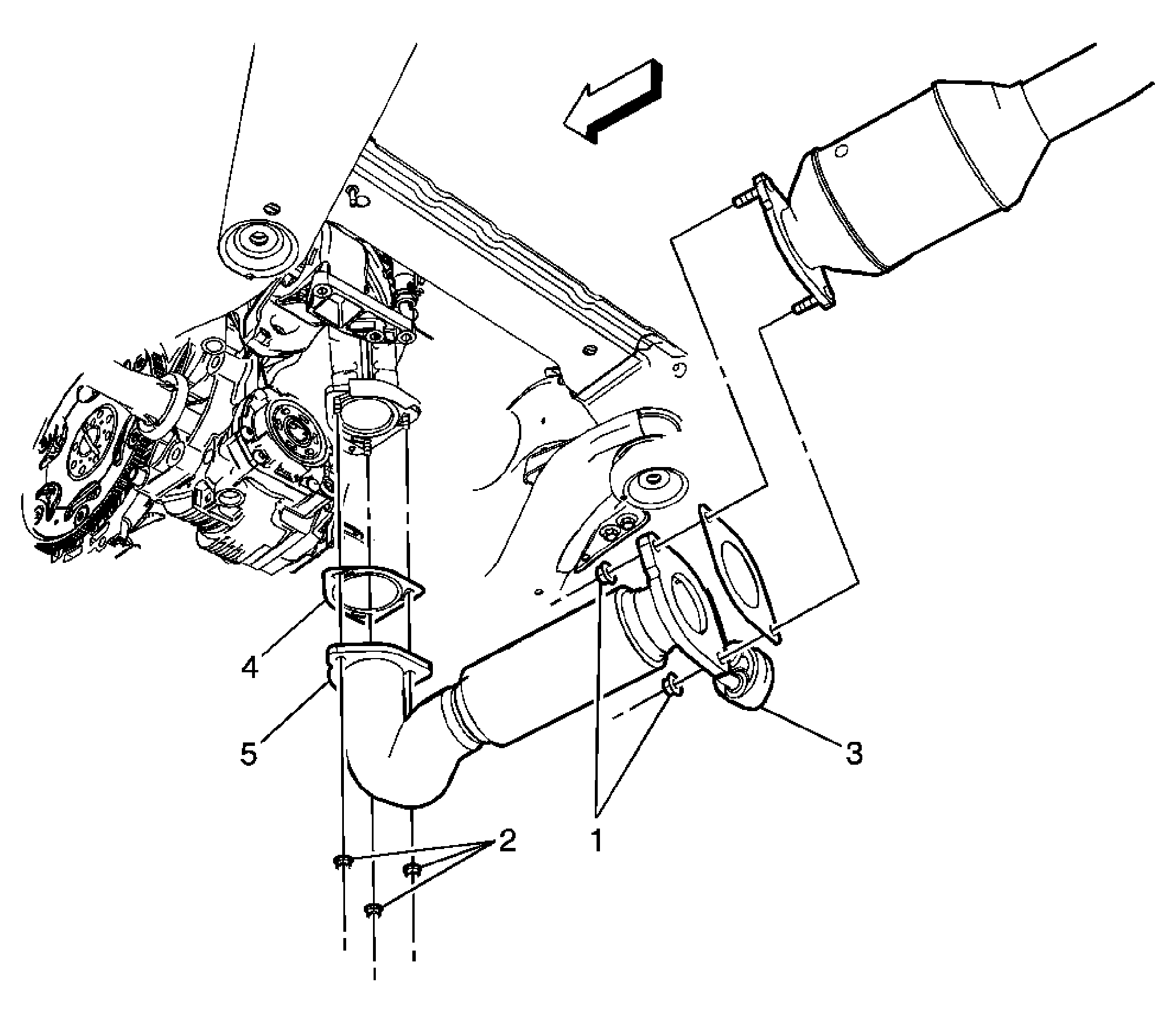

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Exhaust Service Warning
.
CAUTION:
Refer to Exhaust System Inspection Caution
. Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
. |
|
| 1 | Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 46 N.m (34 lb ft) |
| 2 | Nut (Qty: 3) Tighten: 18 N.m (13 lb ft) |
| 3 | Exhaust Muffler Insulators Tip: Use an isolator tool to remove the flex pipe rods from the insulator. Inspect for worn, torn or damaged insulator, replace as necessary. |
| 4 | Seal Tip: Clean the gasket surfaces and replace any worn seals. |
| 5 | Exhaust Front Flex Pipe |
