Turbocharger Bracket Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

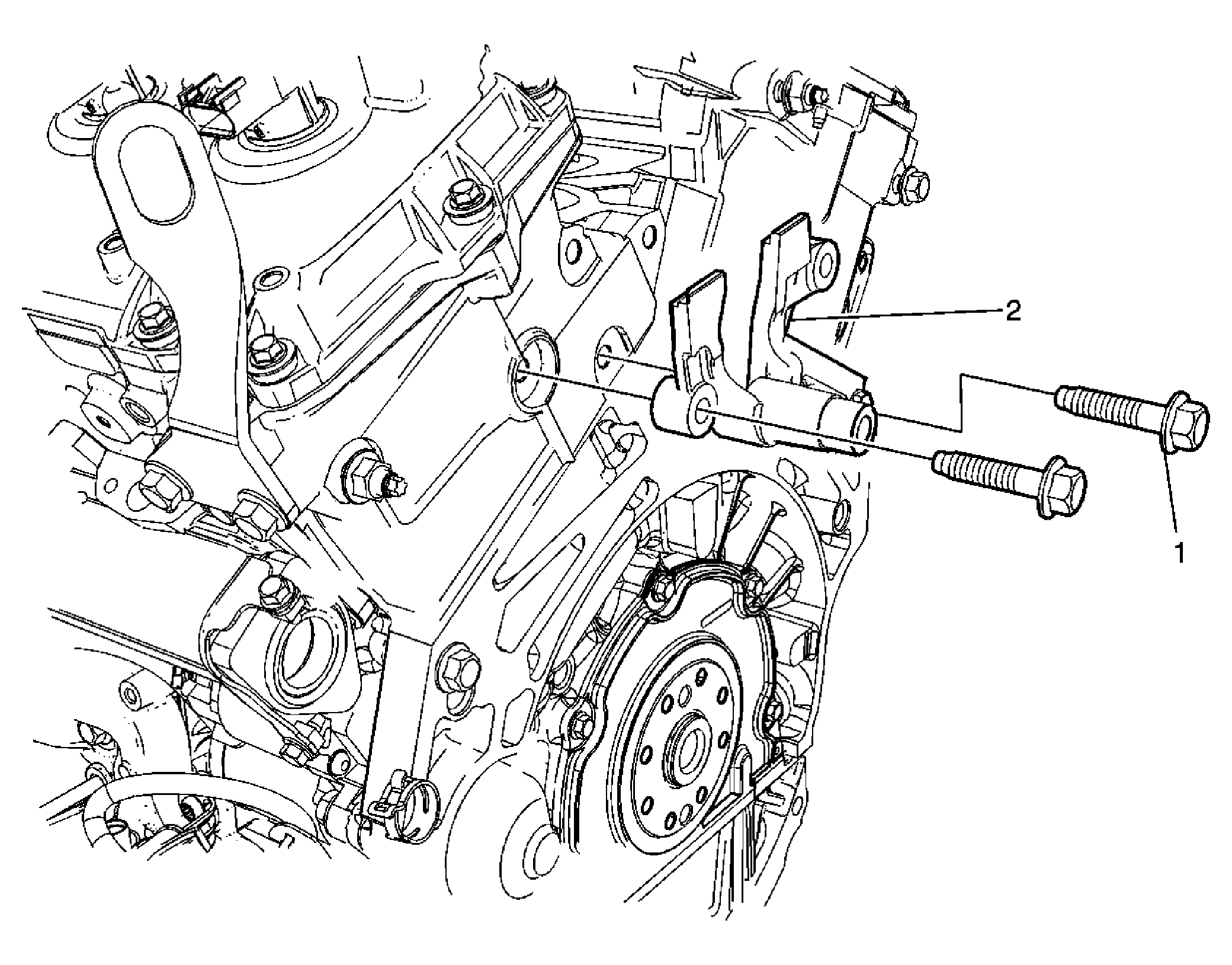

Fig 1: Identifying Turbocharger Bracket & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the turbocharger. Refer to Turbocharger Replacement . Remove the secondary air injection pipe with check valve. Refer Secondary Air Injection Pipe Replacement .
1	Turbocharger Bracket Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 65 N.m (48 lb ft)
2	Turbocharger Bracket Procedure: Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Remove the turbocharger. Refer to Turbocharger Replacement .
Remove the secondary air injection pipe with check valve. Refer Secondary Air Injection Pipe Replacement .

Turbocharger Bracket Fastener (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 65 N.m (48 lb ft)

Turbocharger Bracket
Procedure:
Transfer components as necessary.
