LT TRLR STOP/TRN, TRLR BCK/UP, and RT TRLR STOP/TRN Fuses

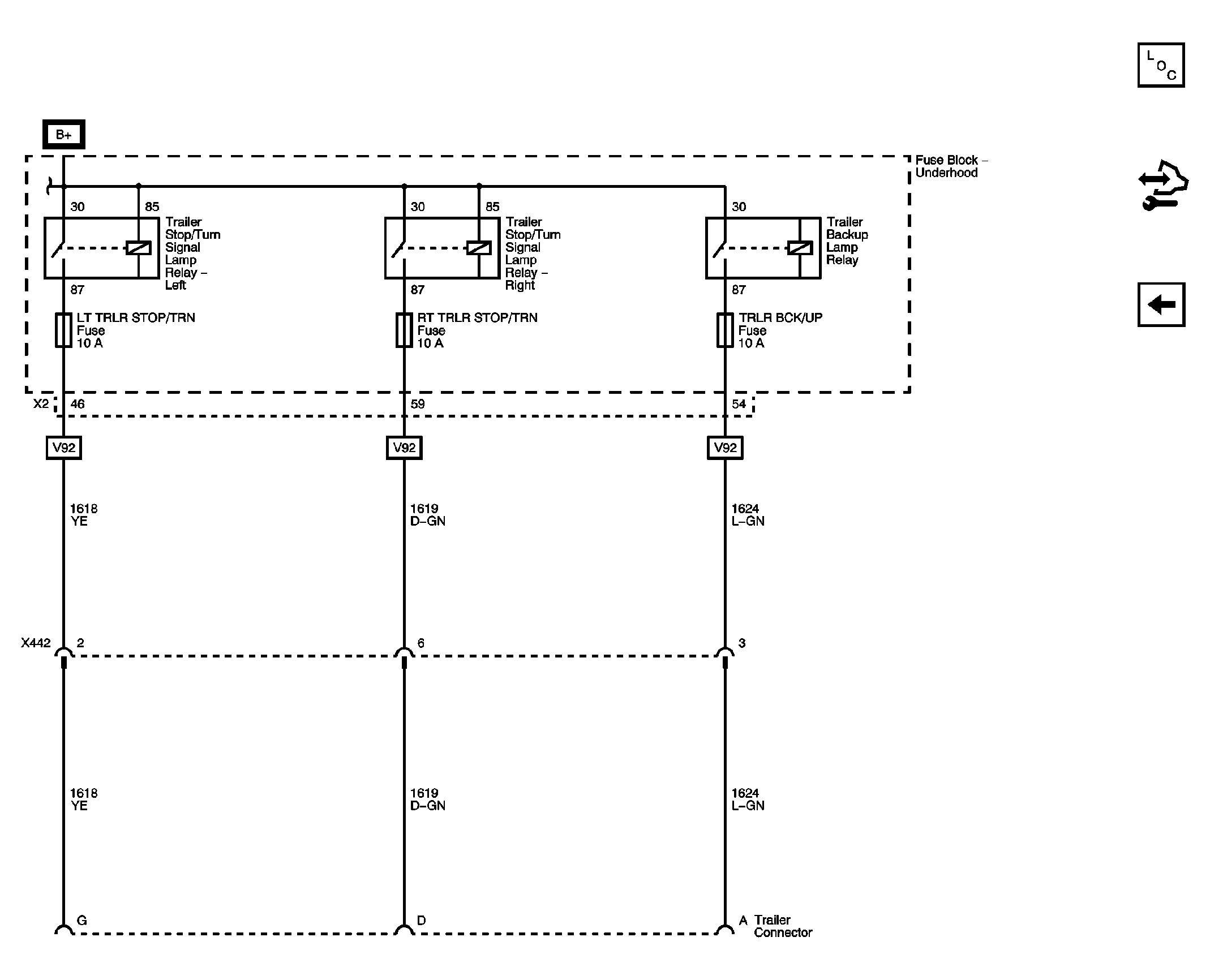

Fig 1: LT TRLR STOP/TRN, TRLR BCK/UP, and RT TRLR STOP/TRN Fuses Wiring Schematic

GM2381959

Courtesy of GENERAL MOTORS CORP.
