Acadia Denali, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams
>>
Schematic and Routing Diagrams
>>
Power Distribution Wiring Schematics
>>
Ignition Switch and AIRBAG, PCM IGN, REAR CAMERA, and TRANS Fuses
Ignition Switch and AIRBAG, PCM IGN, REAR CAMERA, and TRANS Fuses

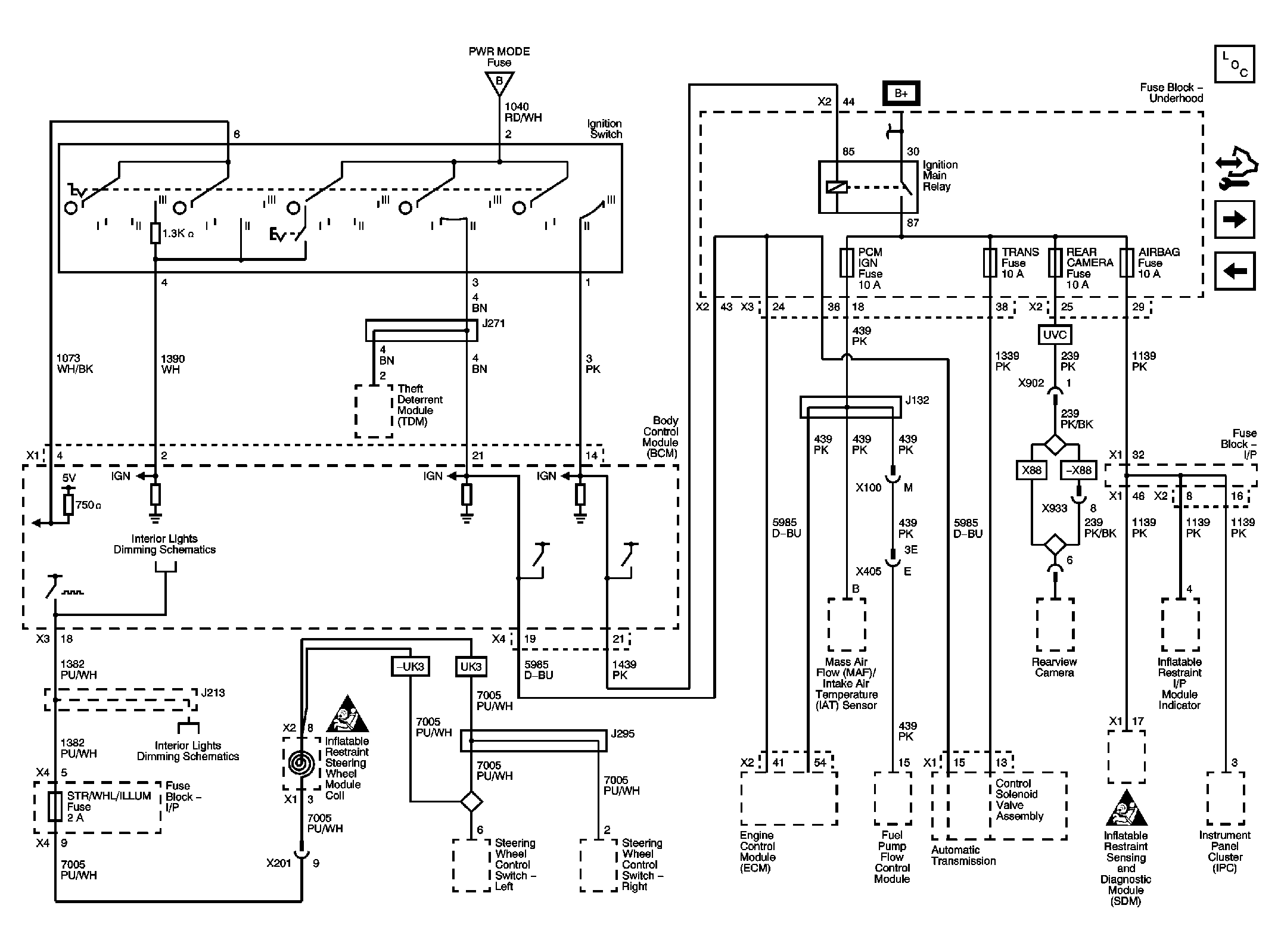

Fig 1: Ignition Switch and AIRBAG, PCM IGN, REAR CAMERA, and TRANS Fuses Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
