FRT/WSW, HVAC, HTD/COOL SEAT, and REAR WPR Fuses

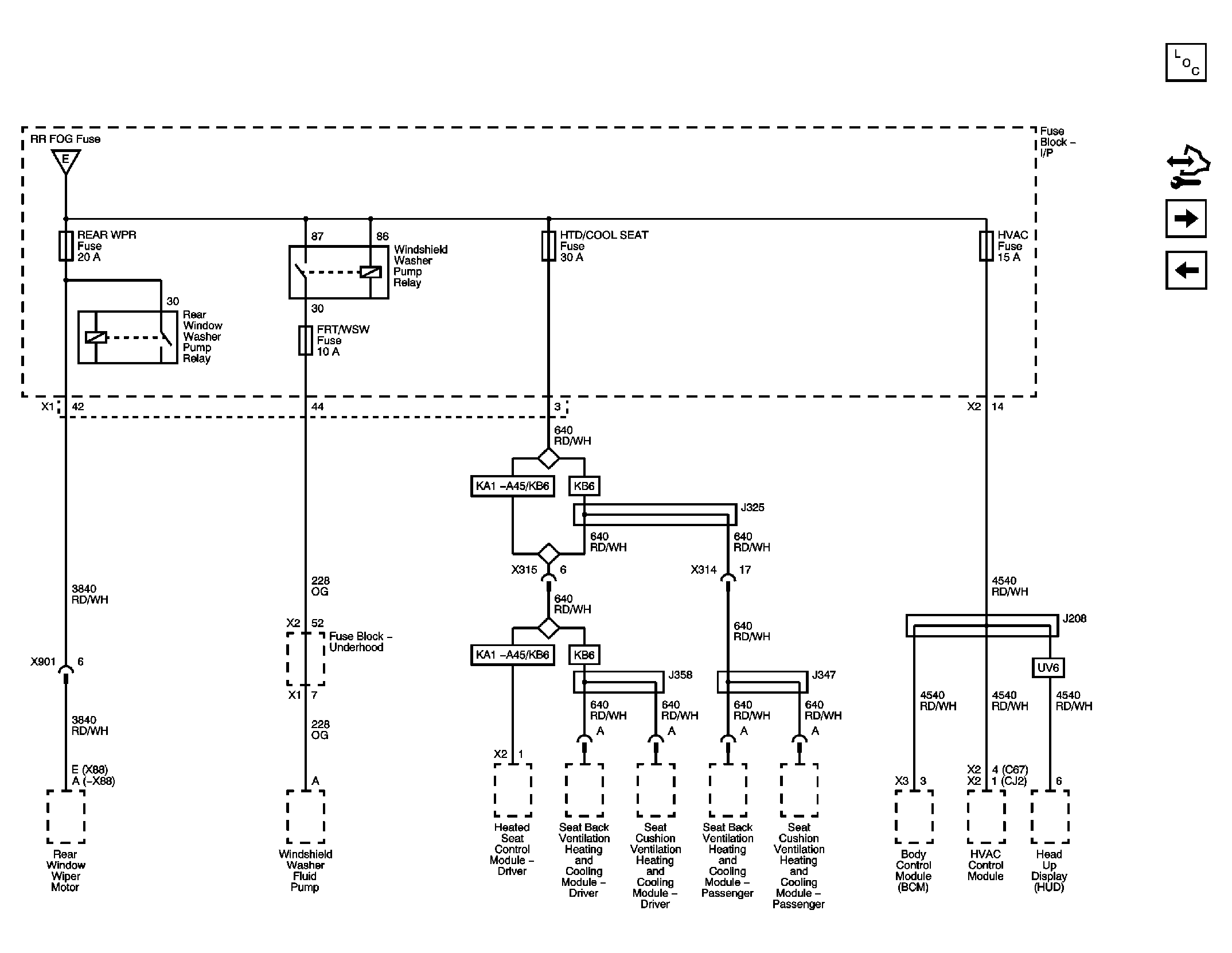

Fig 1: FRT/WSW, HVAC, HTD/COOL SEAT, and REAR WPR Fuses Wiring Schematic

GM2381892

Courtesy of GENERAL MOTORS CORP.
