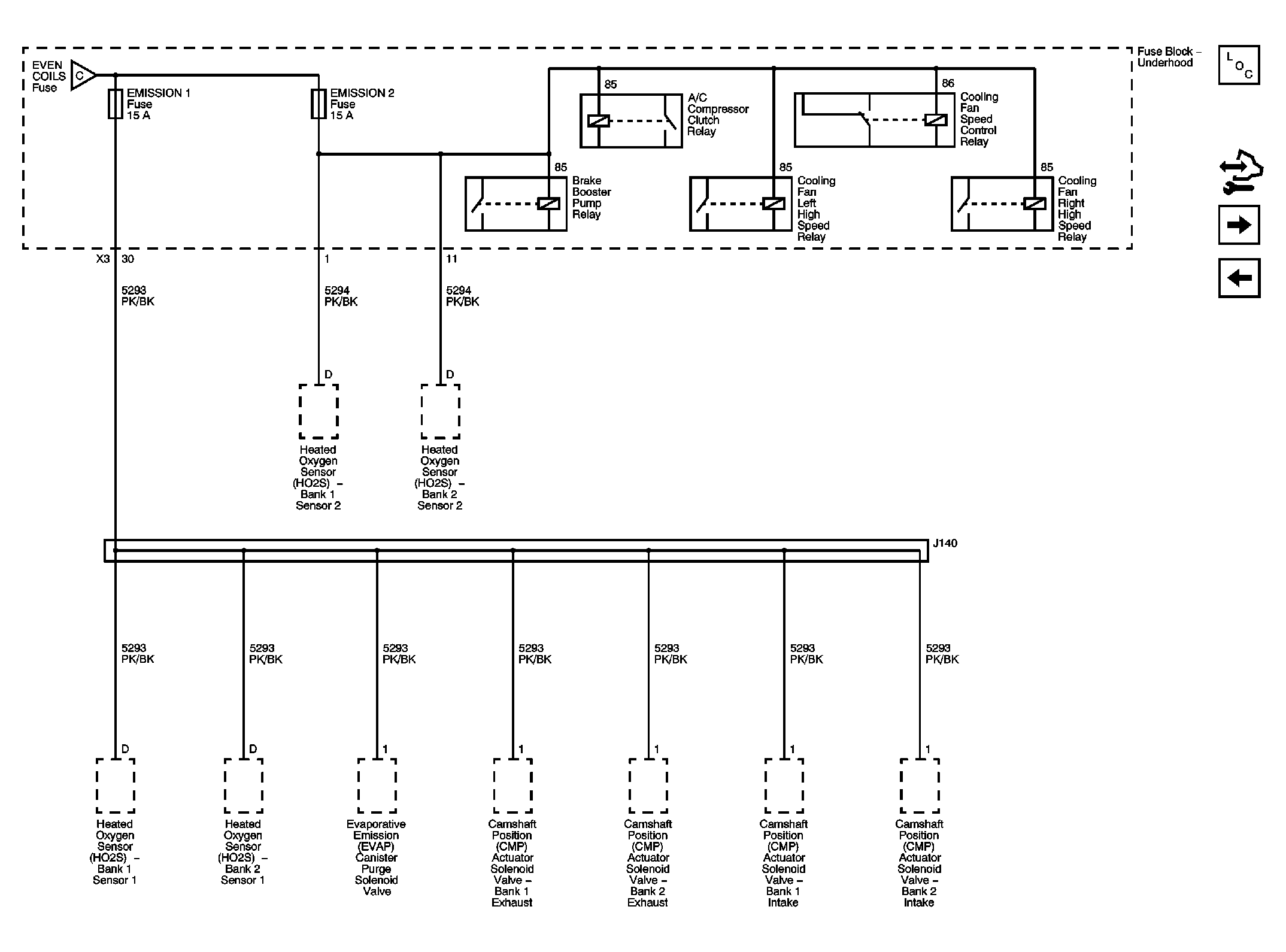

Home >> GMC >> 2011 >> Acadia Denali, FWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Schematic and Routing Diagrams >> Power Distribution Wiring Schematics >> EMISSION 1 and EMISSION 2 Fuses
