DRL, DRL 2, LT LO BEAM, and RT LO BEAM Fuses

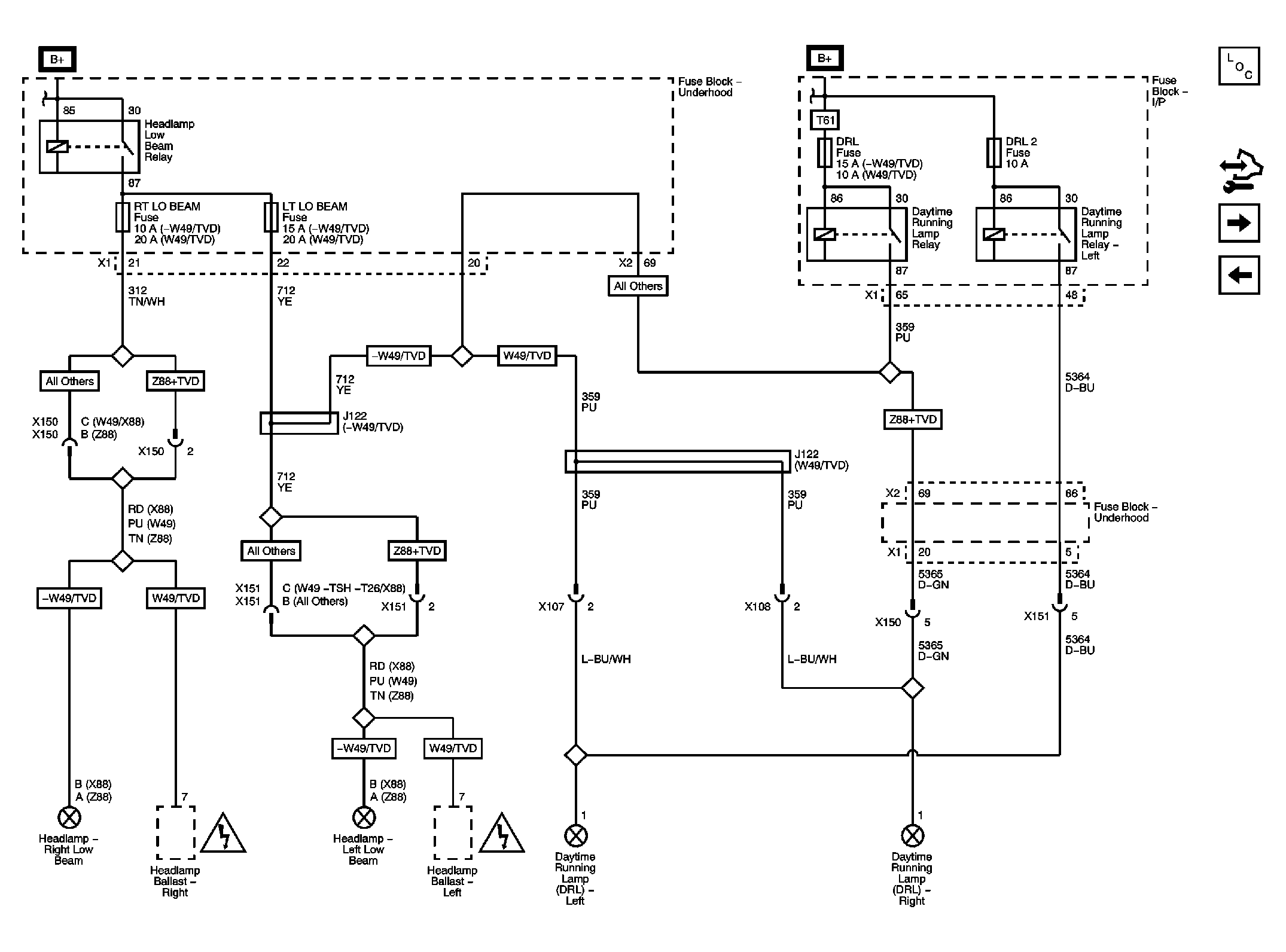

Fig 1: DRL, DRL 2, LT LO BEAM, and RT LO BEAM Fuses Wiring Schematic

GM2381953

Courtesy of GENERAL MOTORS CORP.
