AIRBAG, AMP, BATT 1, BCM, CNSTR/VENT, CTSY, INADV/PWR/LED, and MSM Fuses

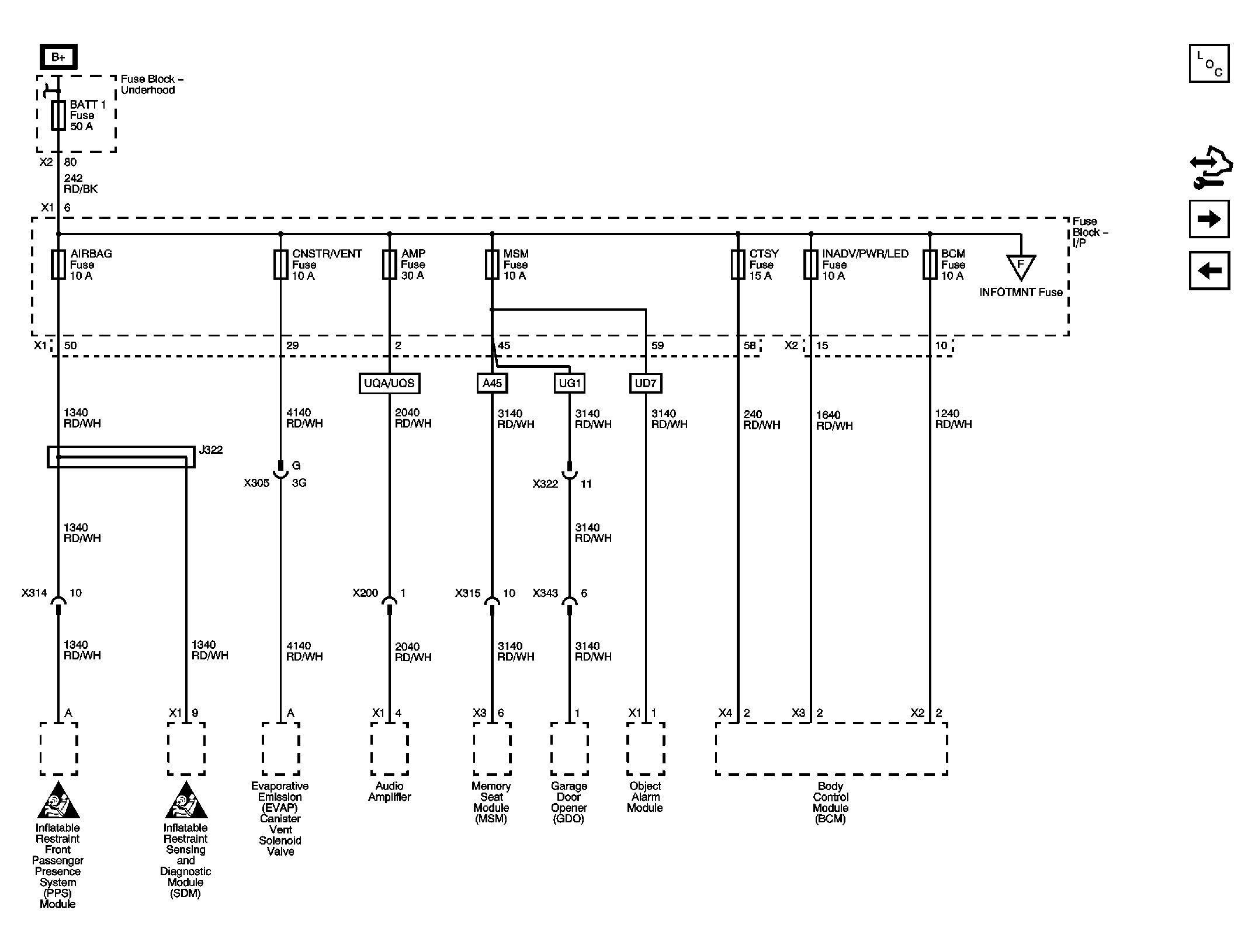

Fig 1: AIRBAG, AMP, BATT 1, BCM, CNSTR/VENT, CTSY, INADV/PWR/LED, and MSM Fuses Wiring Schematic
GM2381864Courtesy of GENERAL MOTORS CORP.
