ABS MTR, AWD, ECM, HVAC BLWR, PWR L/GATE, PWR OUTLET, RR APO, RR HVAC, S/ROOF/SUNSHADE and TCM Fuses

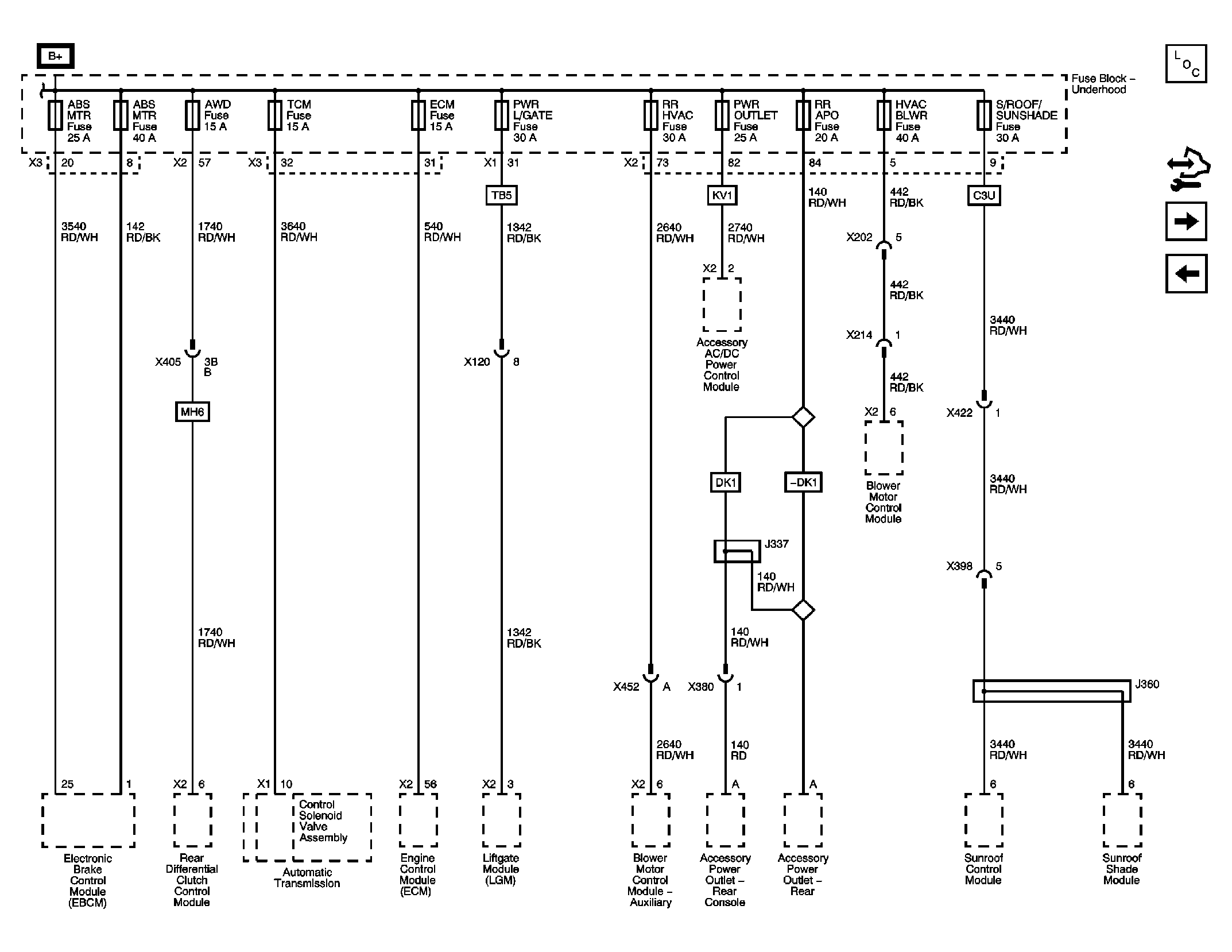

Fig 1: ABS MTR, AWD, ECM, HVAC BLWR, PWR L/GATE, PWR OUTLET, RR APO, RR HVAC, S/ROOF/SUNSHADE and TCM Fuses Wiring Schematic
GM2381947Courtesy of GENERAL MOTORS CORP.
