Liftgate Harness Routing

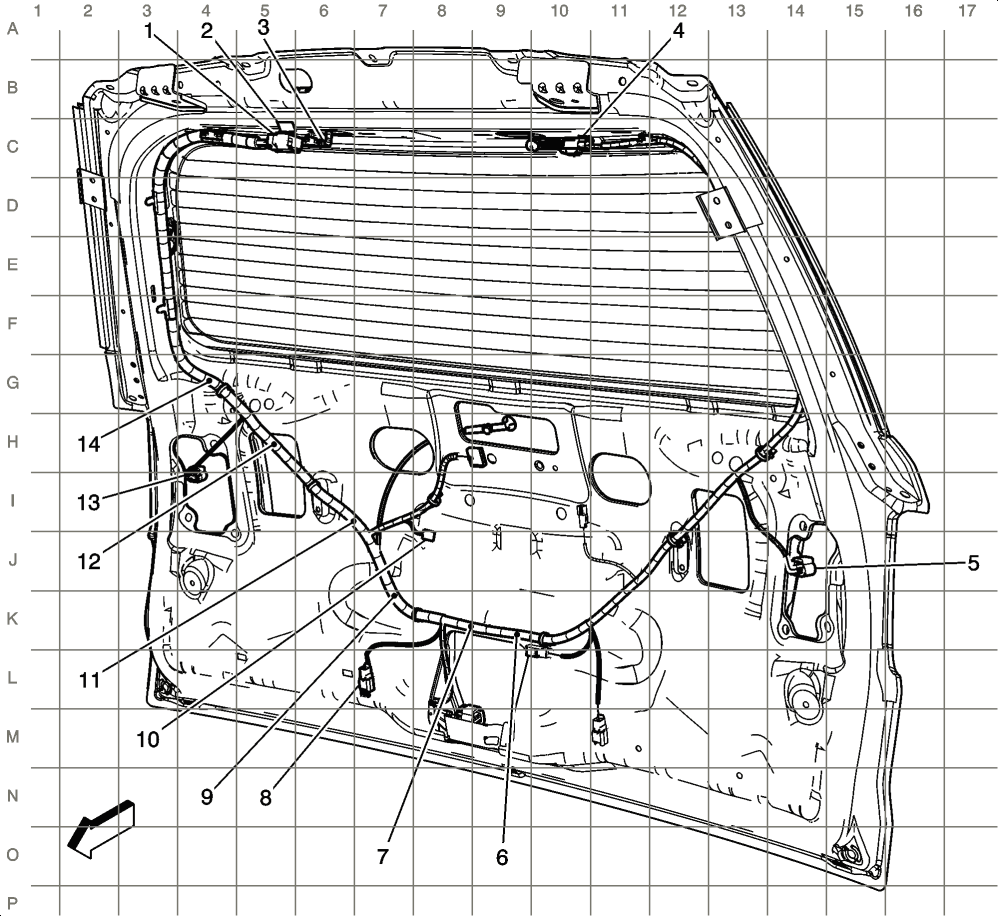

Fig 1: Liftgate Harness Routing
GM2358123Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X903
2 X902 (UVC)
3 X901
4 X911
5 X931 (W49 or Z88)
6 J911 (Z88)
7 J915
8 X940
9 J905 (TB5)
10 X933
11 J907 (TB5)
12 J913
13 X920 (W49 or Z88)
14 J903 (Z88)
