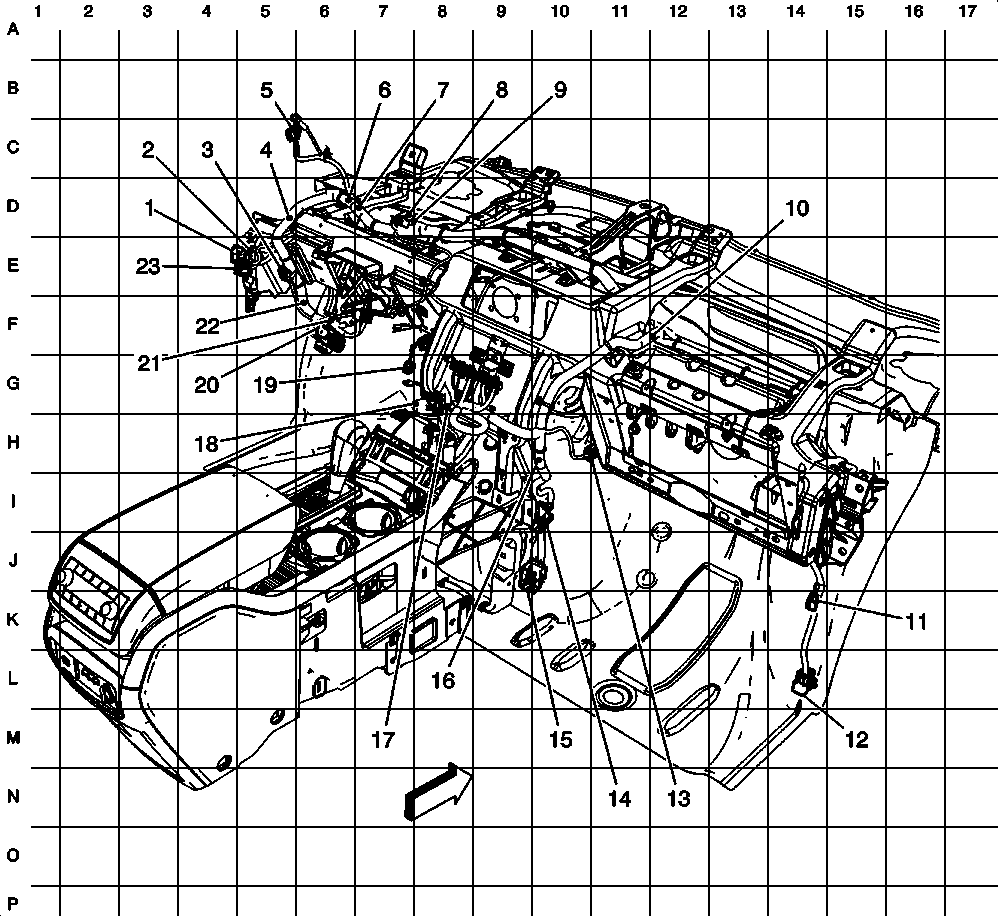

Instrument Panel Harness Routing- Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
X203 |
| 2 |
J216 |
| 3 |
JX205 |
| 4 |
J219 (U42 or UQS) |
| 5 |
X216 (U42) |
| 6 |
J273 (RCA) |
| 7 |
J215 |
| 8 |
J213 |
| 9 |
J202 |
| 10 |
J206 (CJ2) |
| 11 |
X252 |
| 12 |
X200 |
| 13 |
X214 |
| 14 |
X240 |
| 15 |
X202 |
| 16 |
J208 |
| 17 |
J214 |
| 18 |
J211 |
| 19 |
J220 |
| 20 |
X201 |
| 21 |
J221 |
| 22 |
J251 |
| 23 |
X205 |
