Front Floor Console Harness Routing

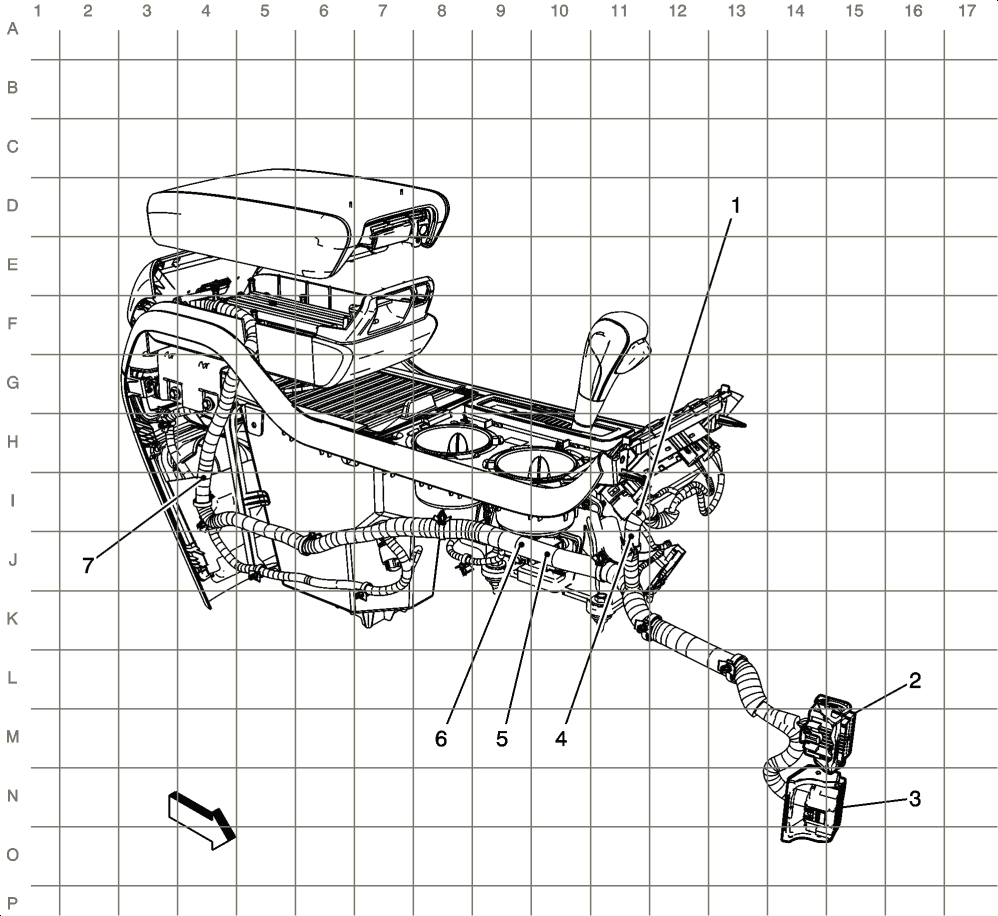

Fig 1: Front Floor Console Harness Routing
GM2358062Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J371 (without KA1 or ULD)
2 X240
3 X340
4 J377
5 J373
6 J379 (without ULD)
7 J375
