Forward Lamp Harness Routing

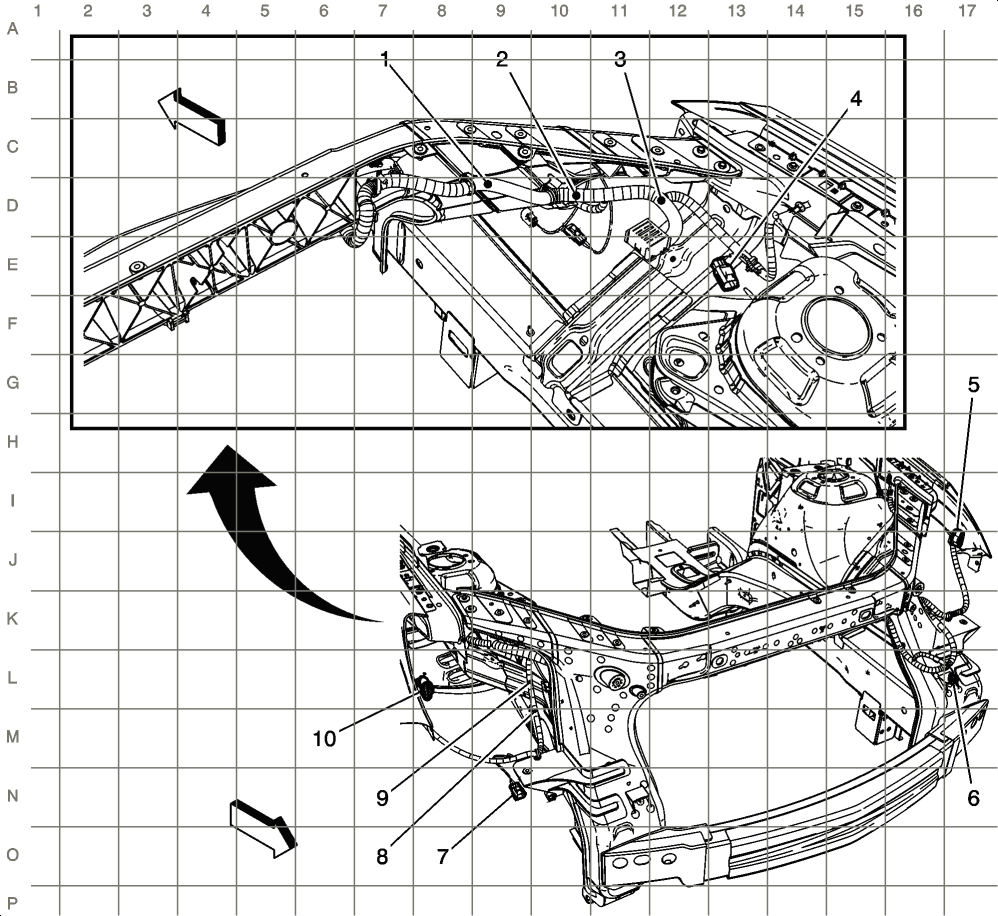

Fig 1: Forward Lamp Harness Routing
GM2358063Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J122
2 J120
3 J126 (Z88)
4 X120
5 X151
6 X107 (W49)
7 X108 (W49)
8 J121 (W49 with TSH or T26)
9 J123 (W49 with TSH or T26)
10 X150
