Body Harness Routing- Near Liftgate

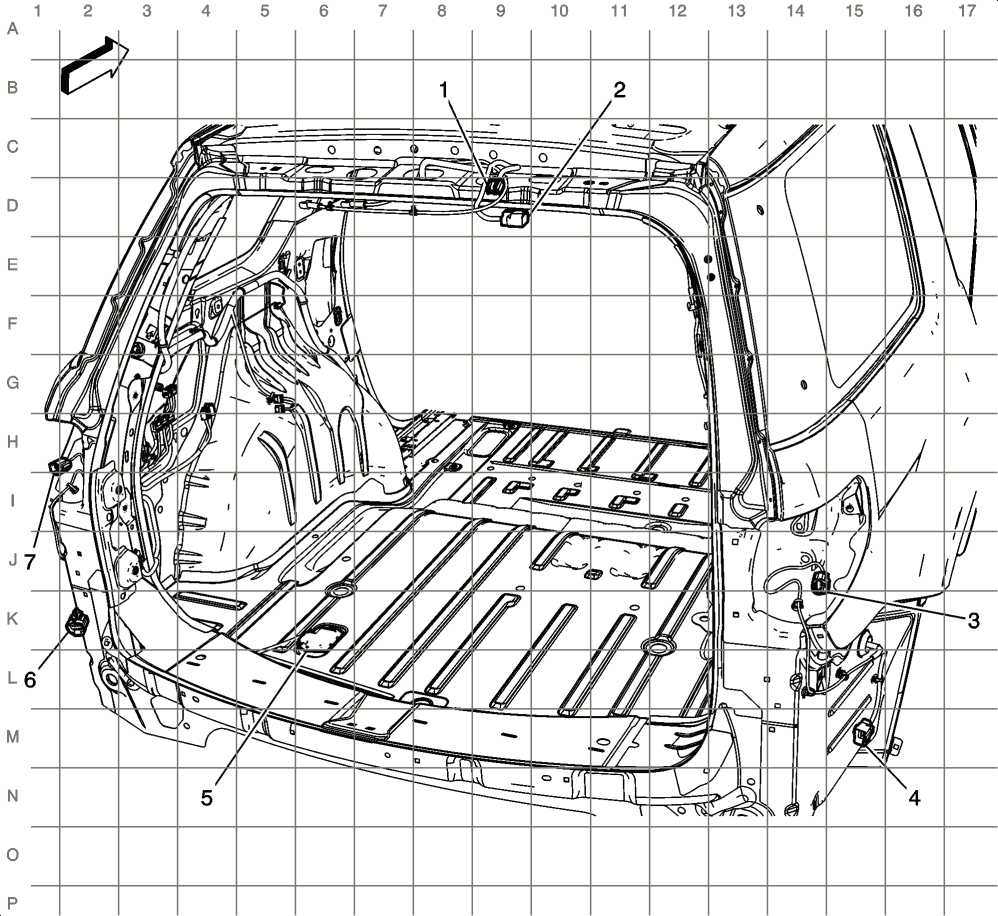

Fig 1: Body Harness Routing- Near Liftgate
GM2358121Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X901
2 X903
3 X450 (W49 or X88)
4 X442 (V92)
5 X405
6 X440 (UD7 or X88)
7 X451 (W49 or X88)
