Ground Distribution Wiring Schematics: G300

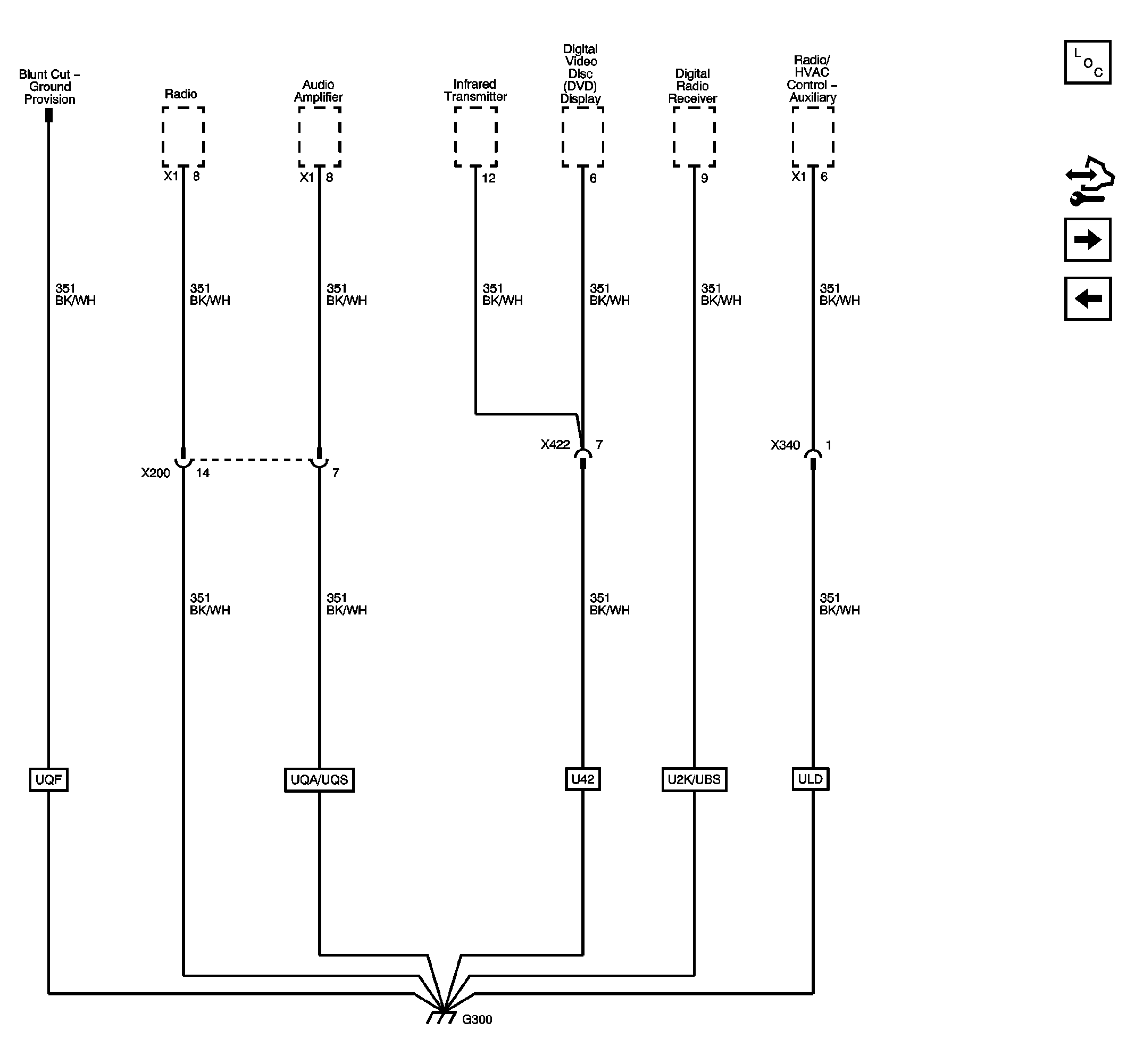

Fig 1: G300 Wiring Schematic

GM2382017

Courtesy of GENERAL MOTORS CORP.
