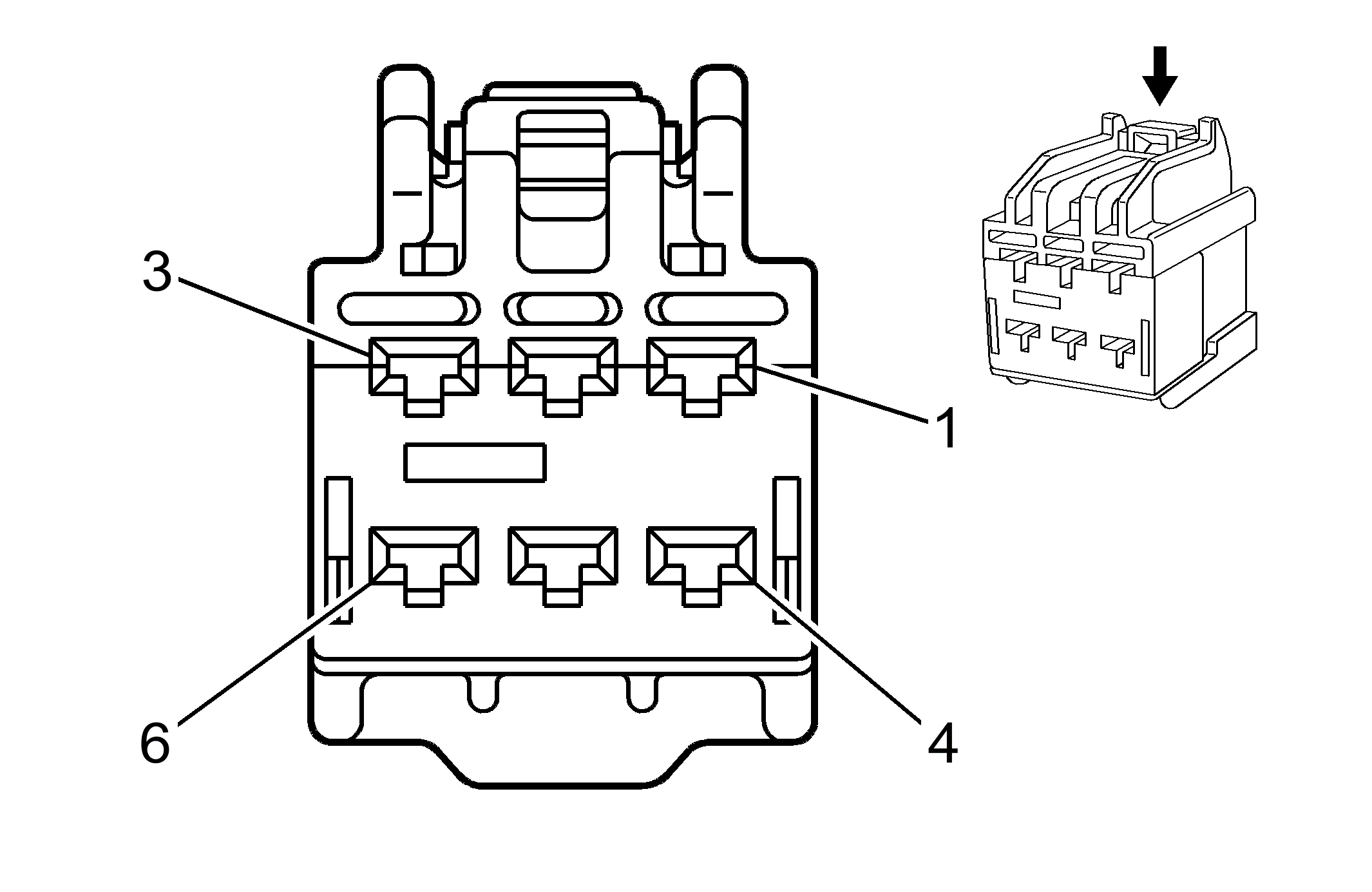

Door Lock/Window Switch - Driver X1 (AXE)
Courtesy of GENERAL MOTORS CORP. Door Lock/Window Switch - Driver X1 (AXE)
| Pin |
Wire |
Circuit |
Function |
| 1-3 |
- |
- |
Not Used |
| 4 |
1 RD/WH |
3240 |
Battery Positive Voltage |
| 5 |
2 BK |
550 |
Ground |
| 6 |
- |
- |
Not Used |
Connector Part Information
- Harness Type: Driver Door Trim Panel
- OEM Connector: 6098-4607
- Service Connector: 88988497
- Description: 6-Way F 2.8mm PBT (BK)
|
Terminal Part Information
- Pins: 4
- Terminated Lead: 13582326
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 8100-4444/22
- Core/Insulation Crimp: 2/A
- Pins: 5
- Terminated Lead: 13575578
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 8100-4445/22
- Core/Insulation Crimp: 4/4
|
