Control Solenoid Valve Assembly X2

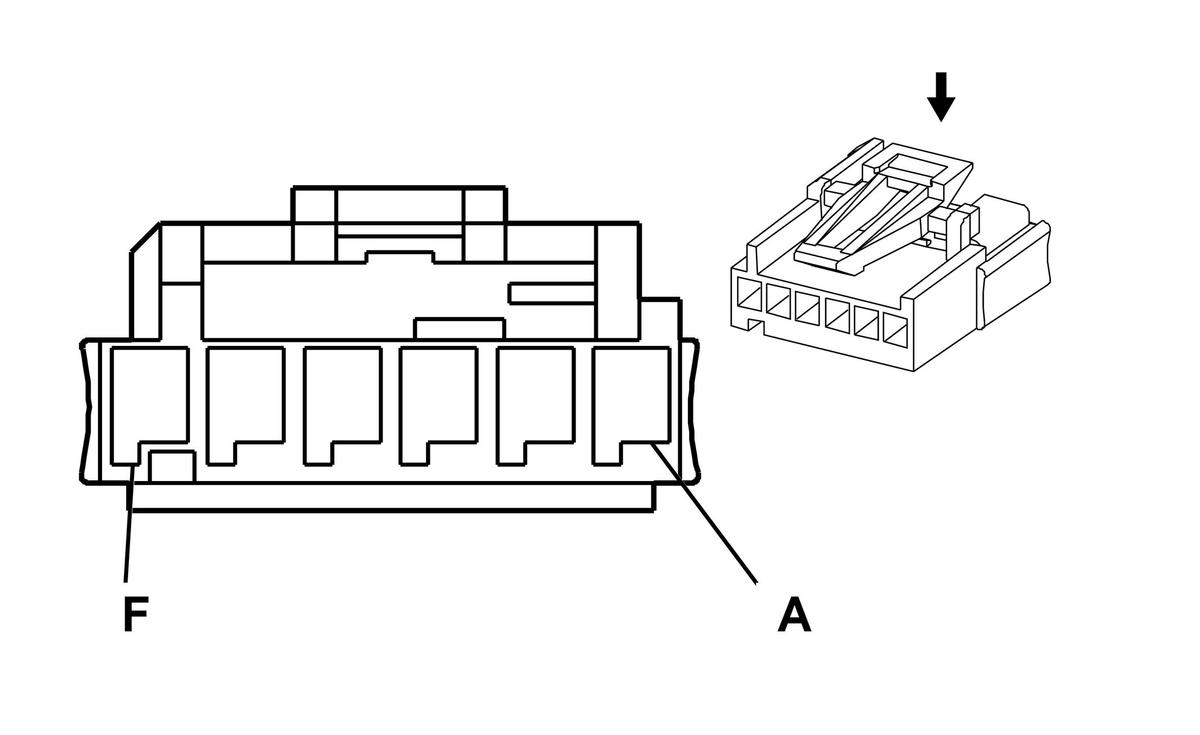

Courtesy of GENERAL MOTORS CORP. Control Solenoid Valve Assembly X2
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 GY |
- |
Low Reference |
| B |
0.5 BK |
- |
Transmission Range Switch Signal P |
| C |
0.5 YE |
- |
Transmission Range Switch Signal C |
| D |
0.5 RD |
- |
Transmission Range Switch Signal B |
| E |
0.5 GN |
- |
Transmission Range Switch Signal A |
| F |
0.5 WH |
- |
Park/Neutral Switch Signal |
Connector Part Information
- Harness Type: Automatic Transmission
- OEM Connector: 15336500
- Service Connector: Non-Serviceable
- Description: 6-Way F Metri-Pack 150.2 Series (GN)
|
Terminal Part Information
- Terminated Lead: Service by Component Assembly
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
