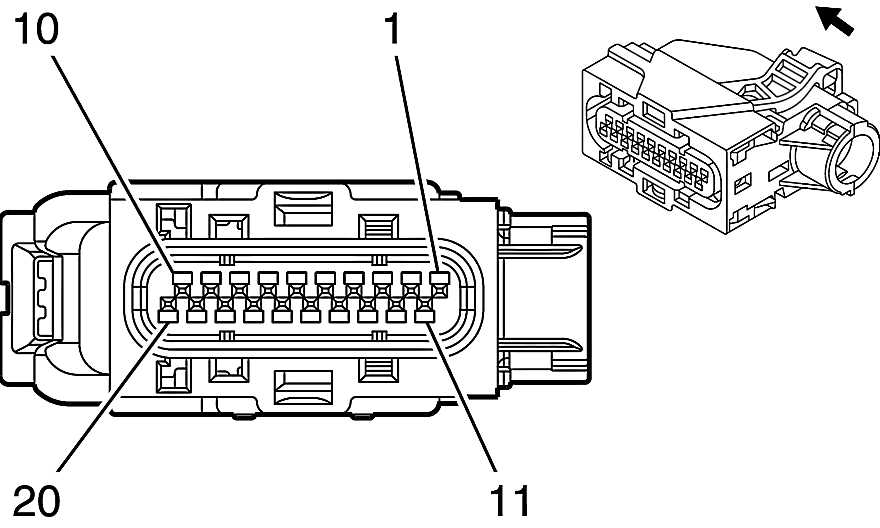

Control Solenoid Valve Assembly X1
Courtesy of GENERAL MOTORS CORP. Control Solenoid Valve Assembly X1
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 BK/WH |
451 |
Ground |
| 2 |
0.5 TN/BK |
2500 |
High Speed GMLAN Serial Data Bus+ |
| 3-4 |
- |
- |
Not Used |
| 5 |
0.5 TN/BK |
2500 |
High Speed GMLAN Serial Data Bus+ |
| 6-9 |
- |
- |
Not Used |
| 10 |
0.8 RD/WH |
3640 |
Battery Positive Voltage |
| 11 |
- |
- |
Not Used |
| 12 |
0.5 TN |
2501 |
High Speed GMLAN Serial Data Bus- |
| 13 |
0.5 PK |
1339 |
Ignition Voltage |
| 14 |
0.5 TN |
2501 |
High Speed GMLAN Serial Data Bus- |
| 15 |
0.5 D-BU |
5985 |
Ignition Voltage |
| 16-17 |
- |
- |
Not Used |
| 18 |
0.8 BK/WH |
451 |
Ground |
| 19 |
- |
- |
Not Used |
| 20 |
0.5 OG/BK |
1786 |
Park/Neutral Signal |
Connector Part Information
- Harness Type: Engine
- OEM Connector: 13570698
- Service Connector: 19151494
- Description: 20-Way F GT 150 Series, Sealed (D-BU w/ BK Case)
|
Terminal Part Information
- Terminated Lead: 13575400
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 15326267/19
- Core/Insulation Crimp: Pins: 2, 5, 12-15, 20 - E/4
- Core/Insulation Crimp: Pins: 1, 10, 18 - E/1
|
