Front Bumper Impact Bar Replacement

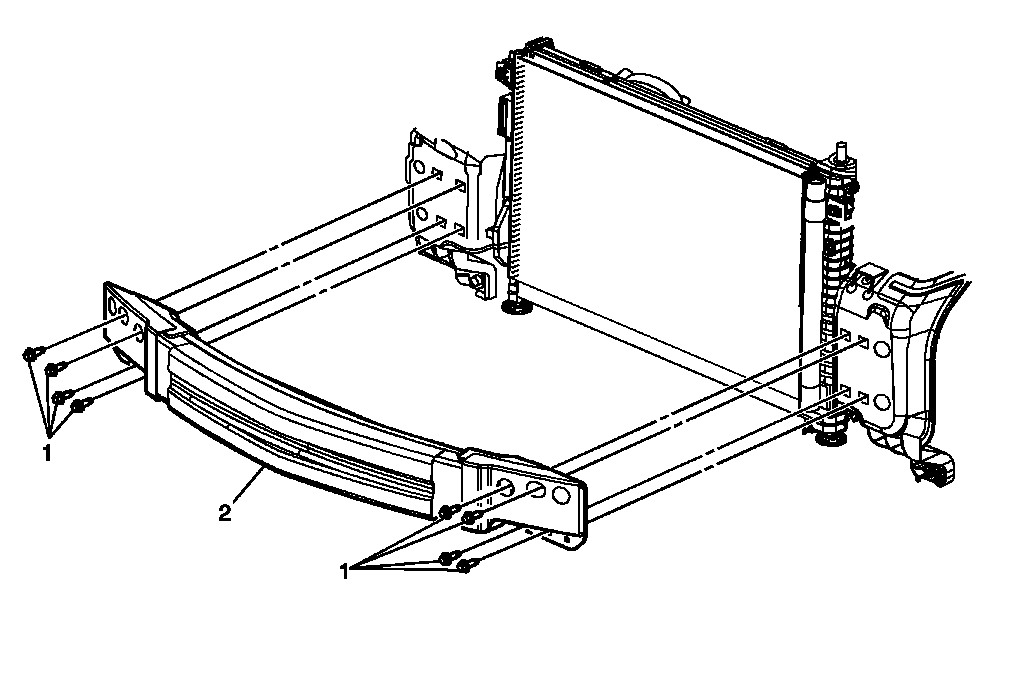

Fig 1: Identifying Front Bumper Impact Bar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the bumper fascia. Refer to Front Bumper Fascia Replacement (Acadia) or Front Bumper Fascia Replacement (Enclave) or Front Bumper Fascia Replacement (OUTLOOK) or Front Bumper Fascia Replacement (Traverse) .
1	Front Bumper Impact Bar Bracket Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 50 N.m (37 lb ft)
2	Front Bumper Impact Bar Procedure: Disconnect the electrical connectors/harnesses as needed. Transfer any parts as needed. Remove right and left side air baffle attached at the impact bar.
