Hood Primary Latch Release Cable Replacement

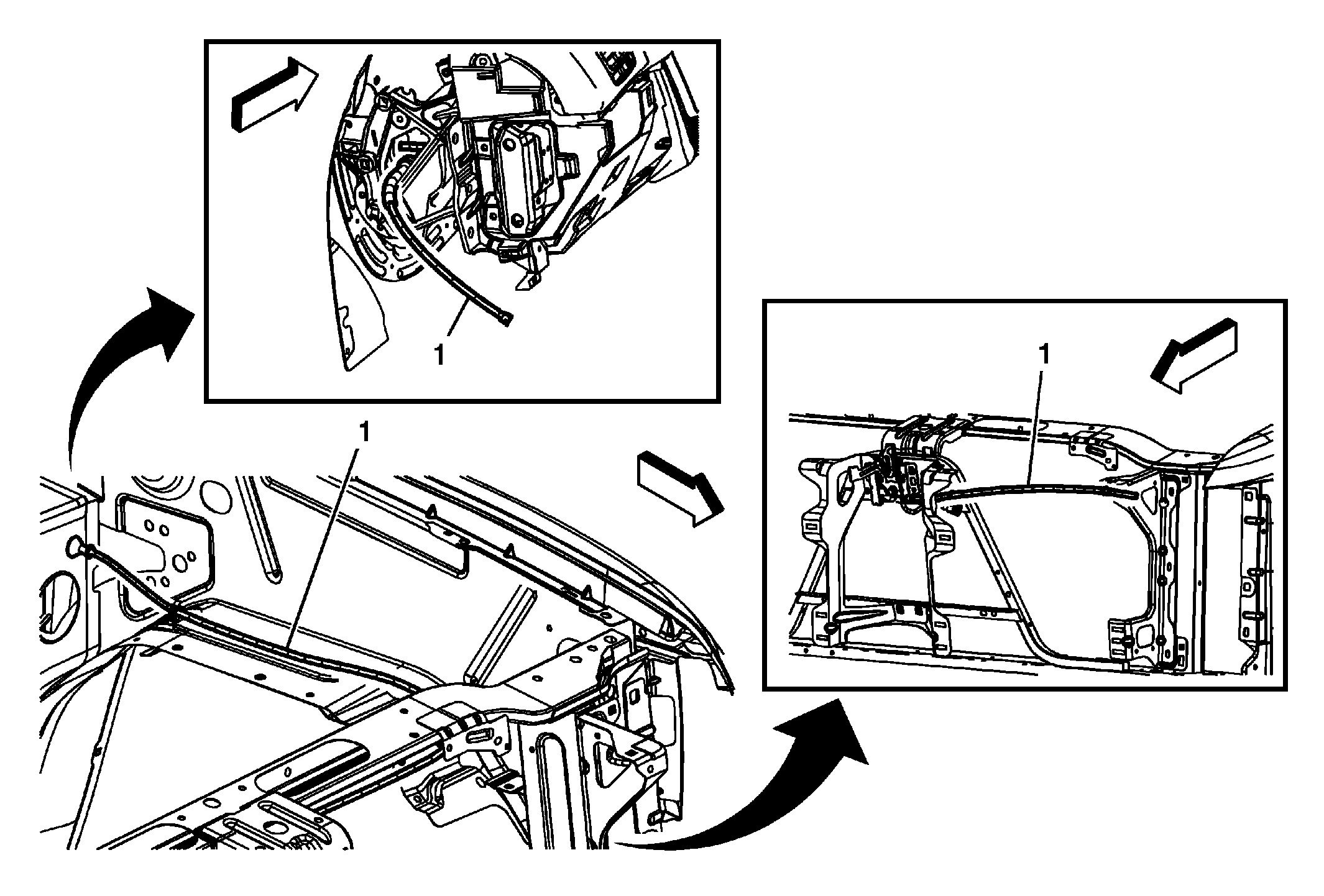

Fig 1: Identifying Hood Primary Latch Release Cable
GM2010725Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the Instrument Panel Insulator Panel Replacement. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Acadia) or Instrument Panel Insulator Panel Replacement - Left Side (Enclave) or Instrument Panel Insulator Panel Replacement - Left Side (OUTLOOK) or Instrument Panel Insulator Panel Replacement - Left Side (Traverse)
  2. Remove the Air cleaner. Refer to Air Cleaner Assembly Replacement .
  3. Remove the Hood Primary and Secondary Latch. Refer to Hood Primary and Secondary Latch Replacement
1 Hood Latch Release Cable

Procedure

  1. Attach mechanic's wire to the existing cable at the latch side to ease installation of the new cab
  2. Remove cable by pulling through the dash panel from inside the vehicle.
