Automatic Transmission Controls Schematics

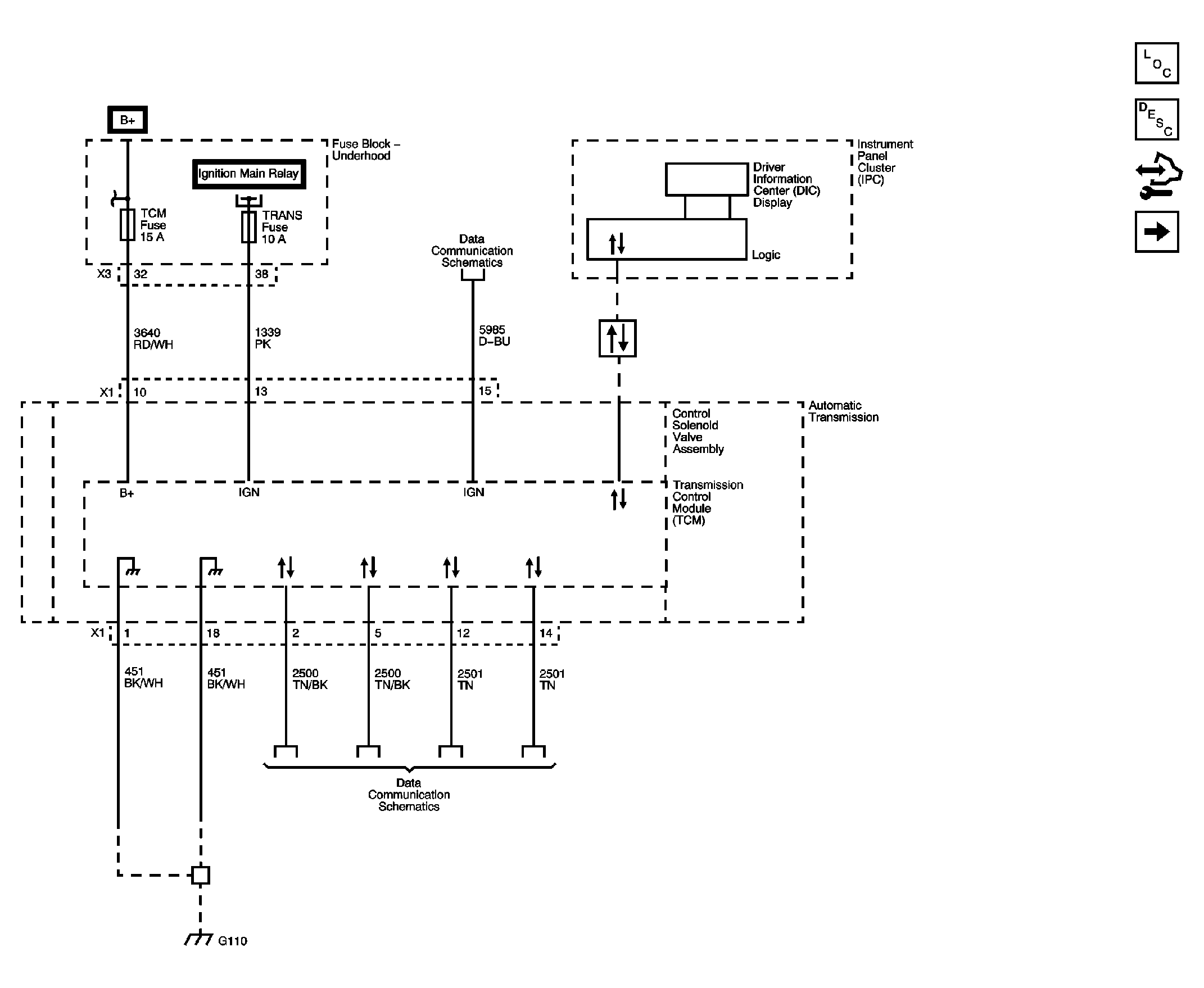

Fig 1: Module Power, Ground, Data Communication & MIL Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

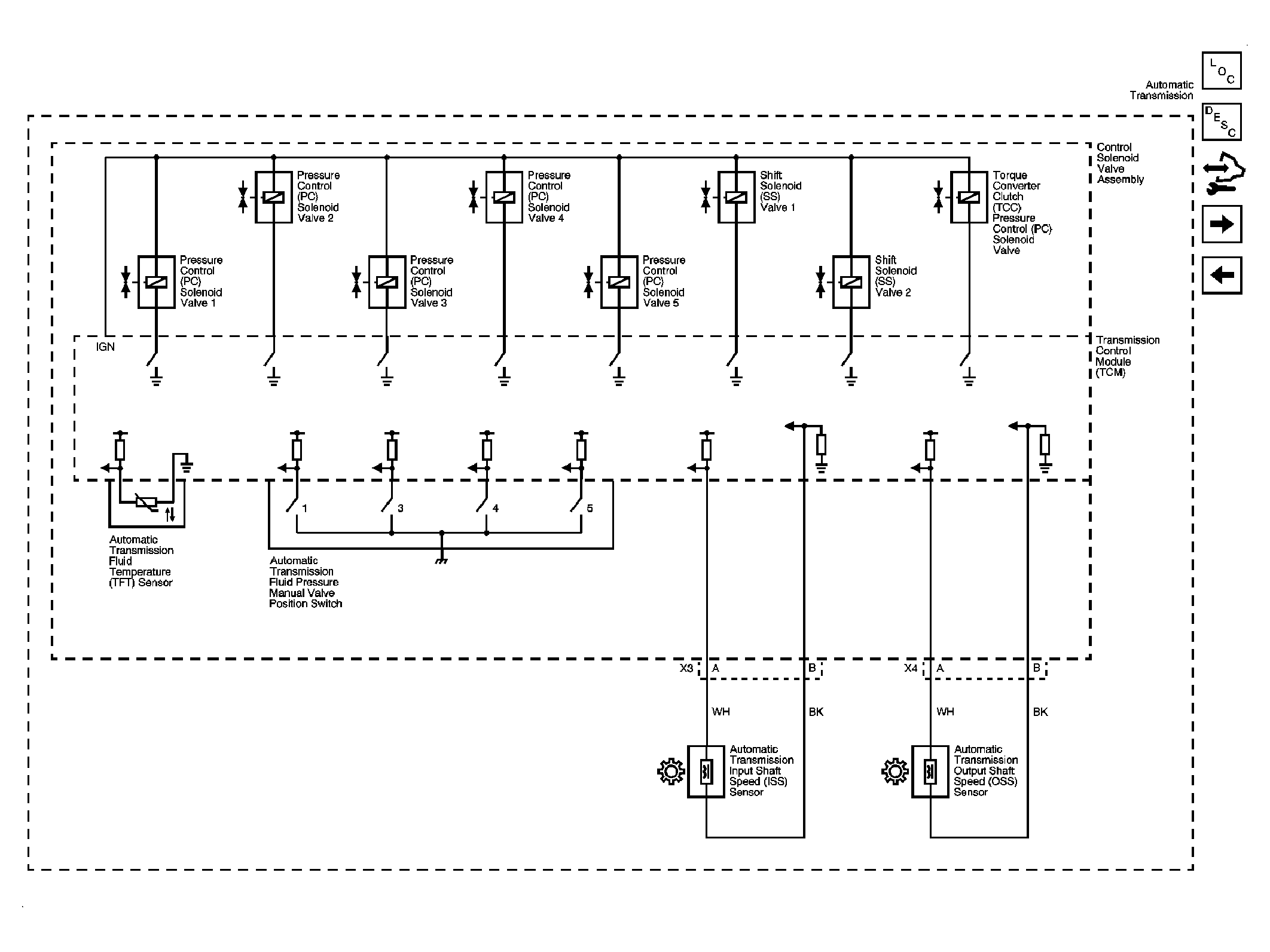

Fig 2: ISS, OSS, TFP, TFT, Pressure Controls & Shift Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

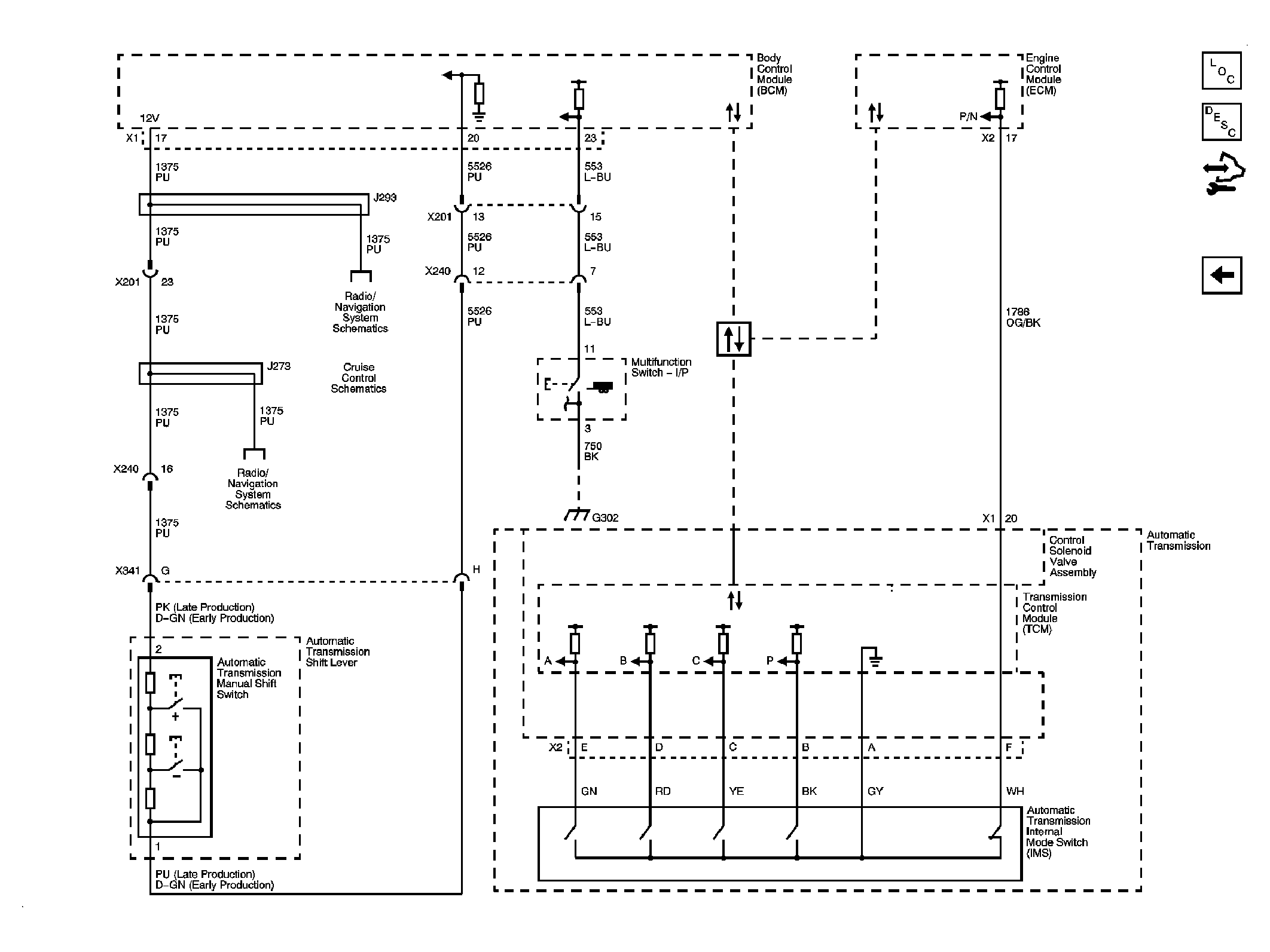

Fig 3: IMS & Tap Up/Tap Down Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
