HVAC Schematics

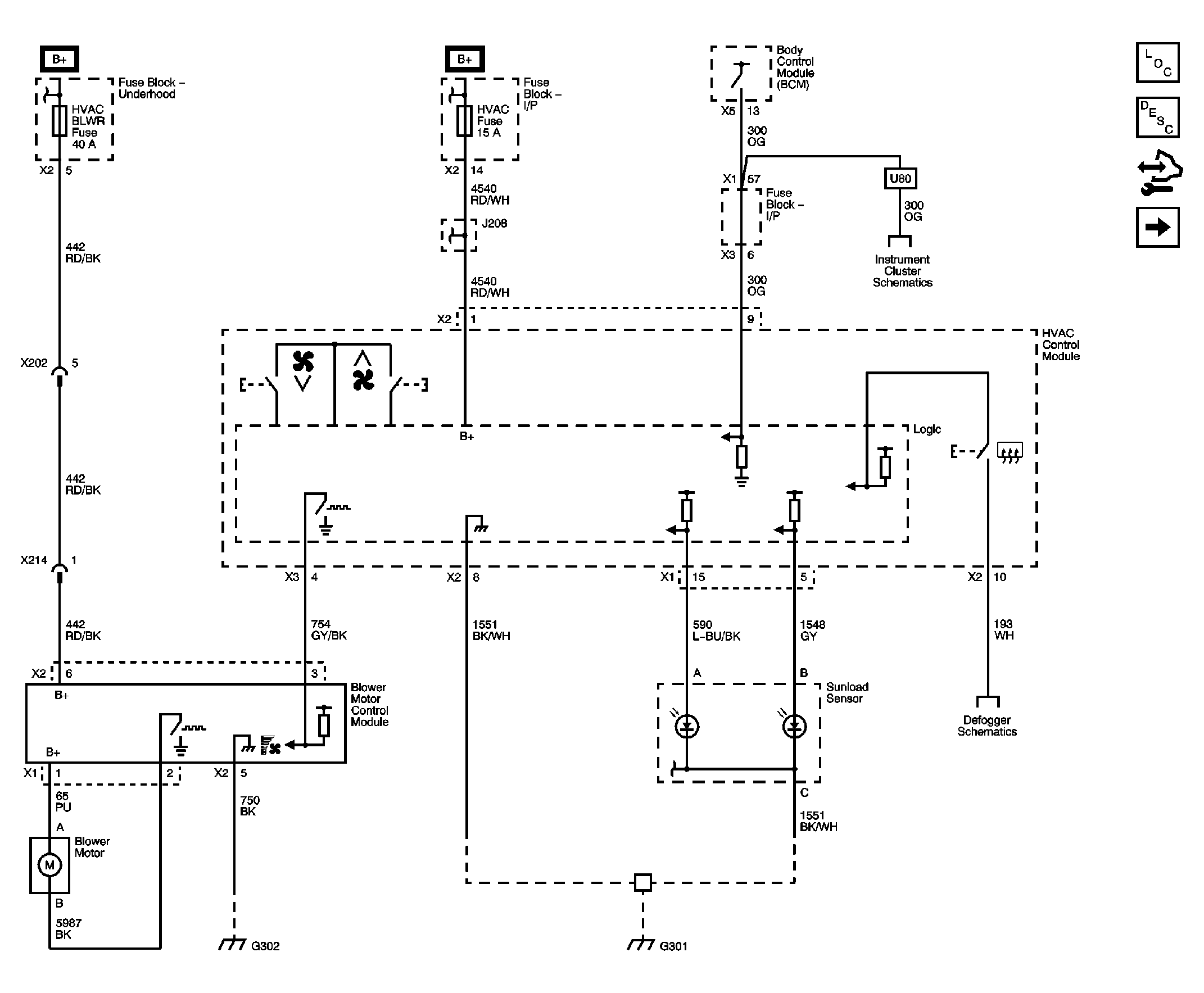

Fig 1: Module Power and Ground, Blower Control, Data Communication & Sunload Circuit Schematic
GM2248158Courtesy of GENERAL MOTORS CORP.

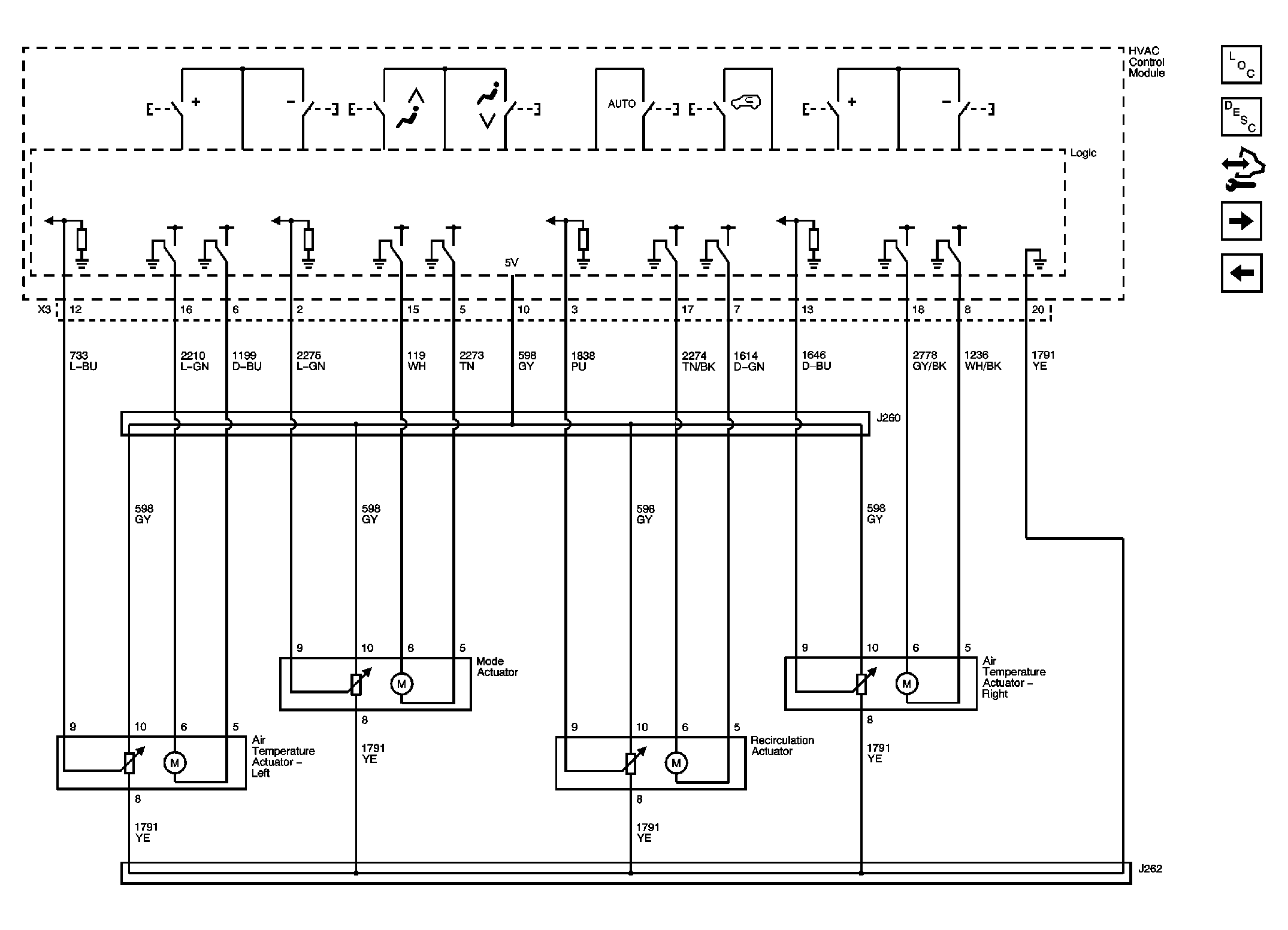

Fig 2: Actuators Circuit Schematic
GM2248162Courtesy of GENERAL MOTORS CORP.

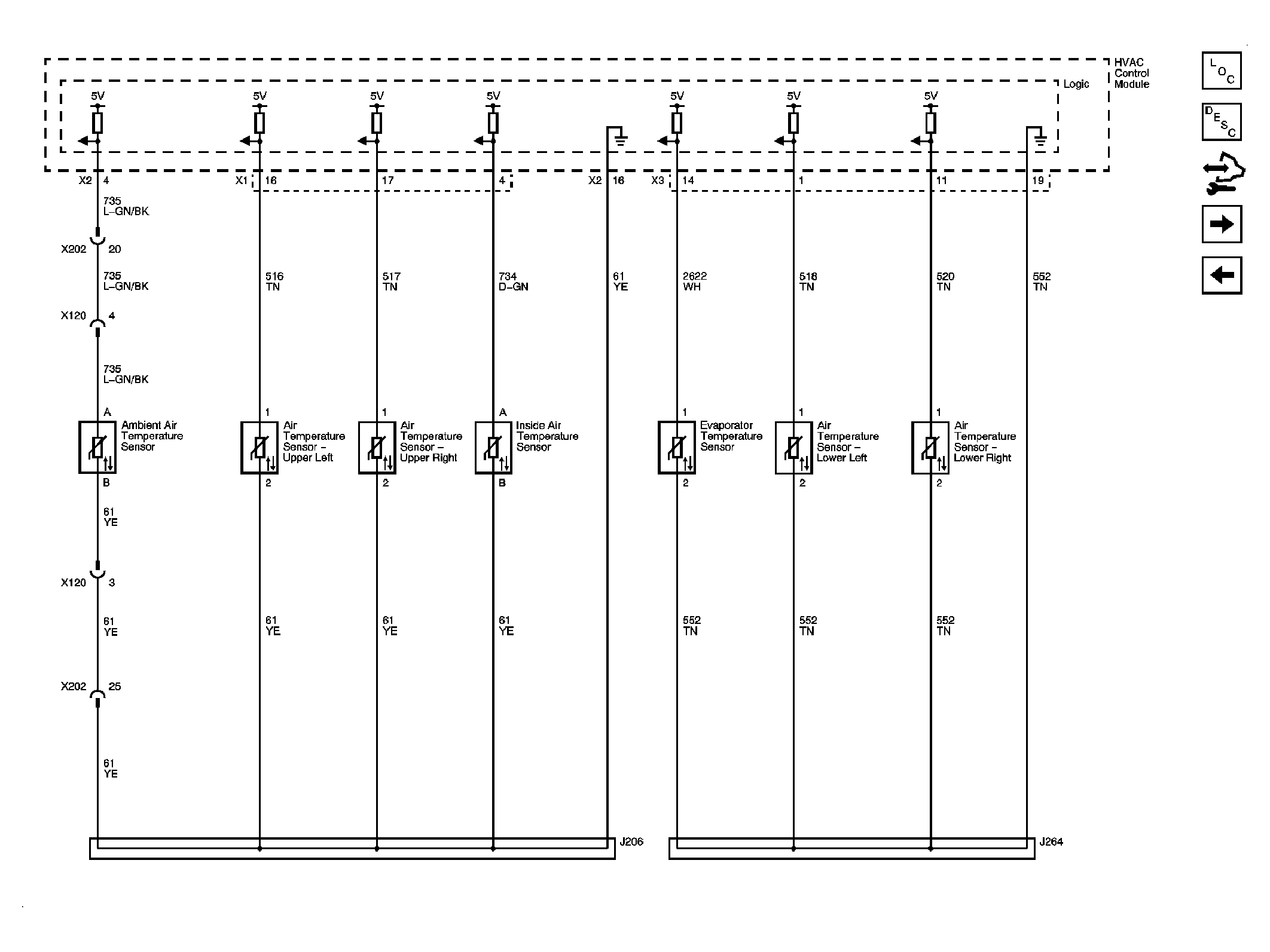

Fig 3: Sensors Circuit Schematic
GM2248163Courtesy of GENERAL MOTORS CORP.

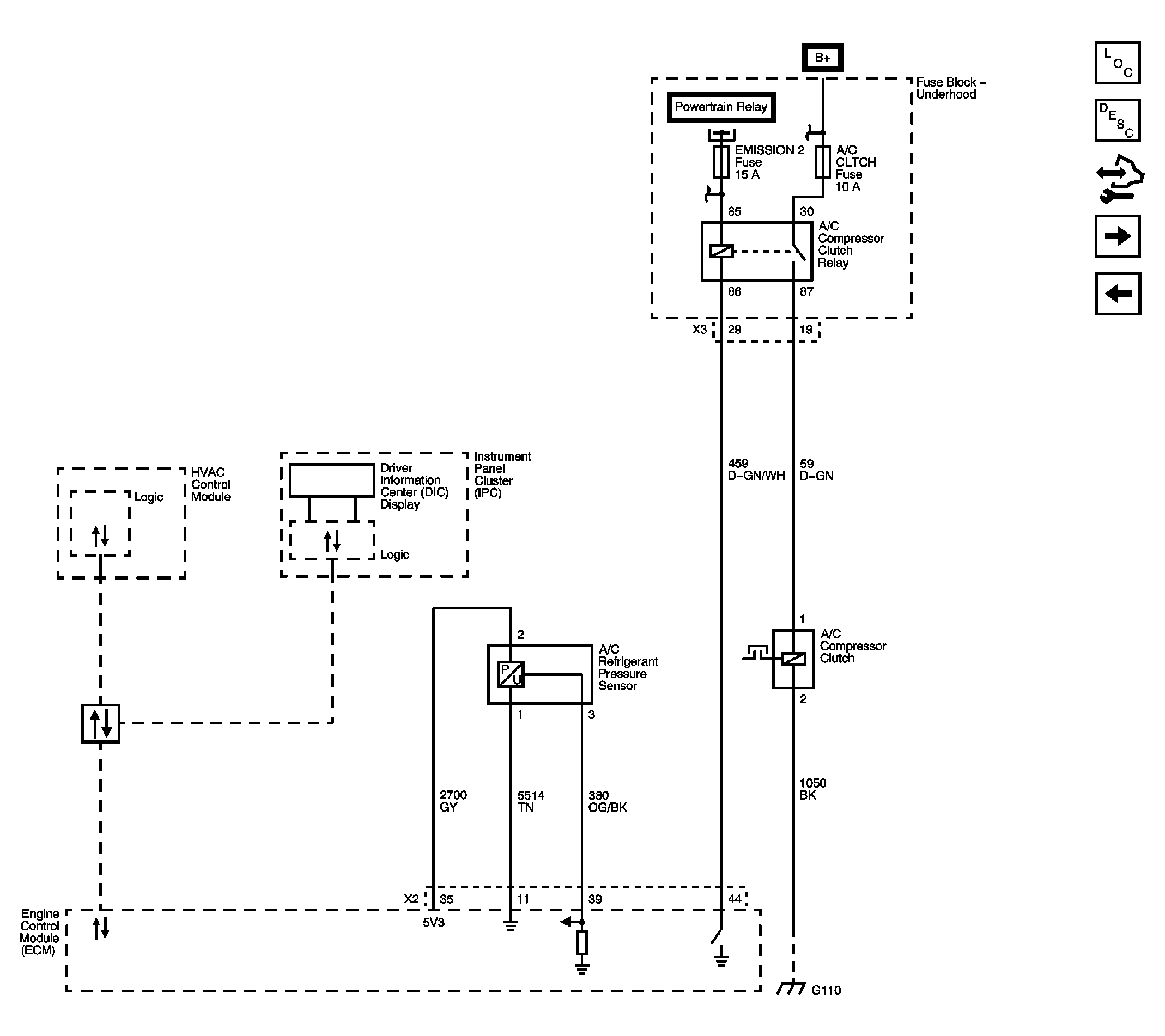

Fig 4: Compressor Controls Circuit Schematic
GM2248166Courtesy of GENERAL MOTORS CORP.

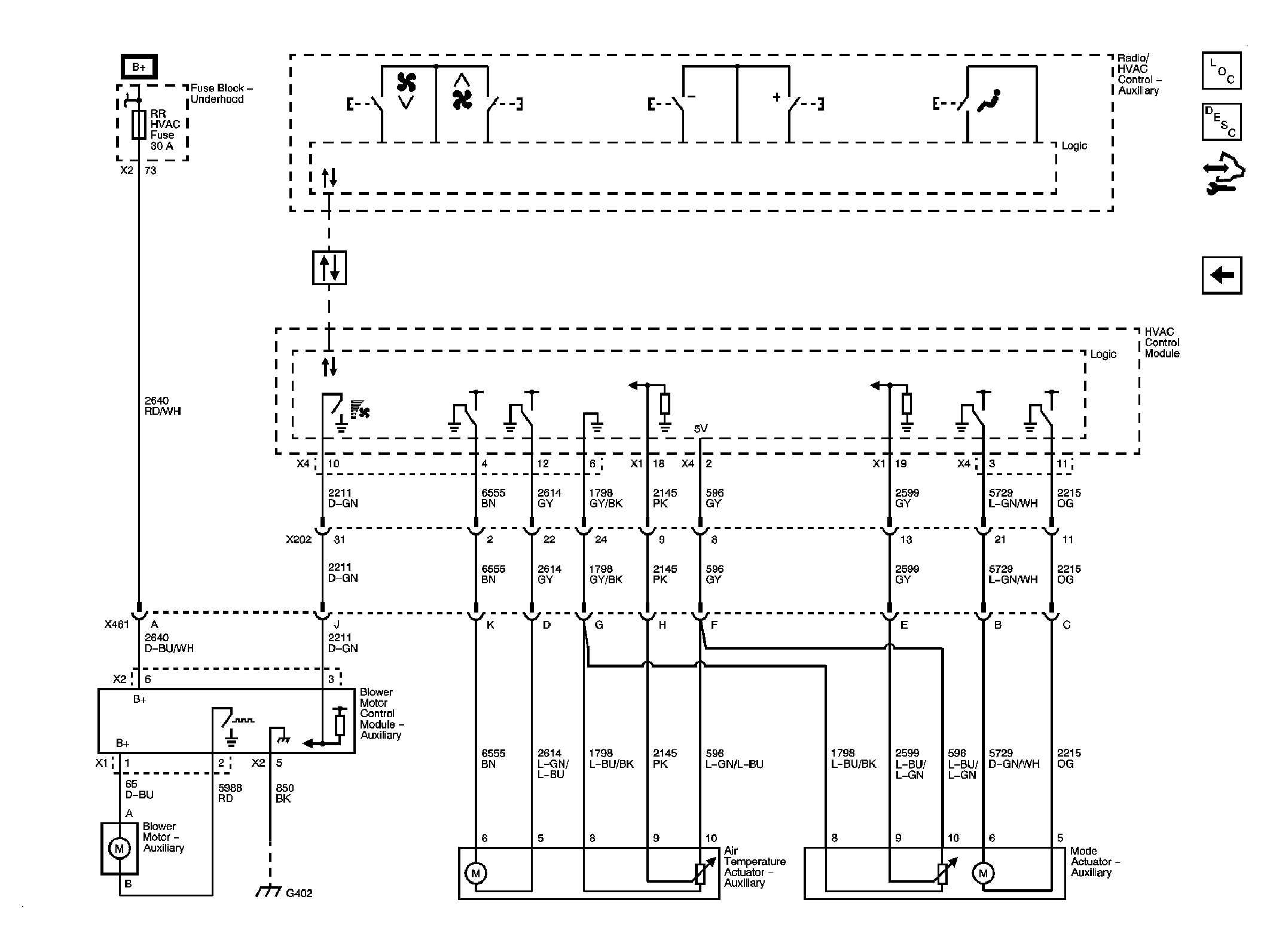

Fig 5: Rear HVAC Circuit Schematic
GM2248172Courtesy of GENERAL MOTORS CORP.
