Cigar Lighter/Power Outlet Schematics

Fig 1: Cigar Lighter/Power Outlet Circuit Schematic - DC Power

Courtesy of GENERAL MOTORS CORP.

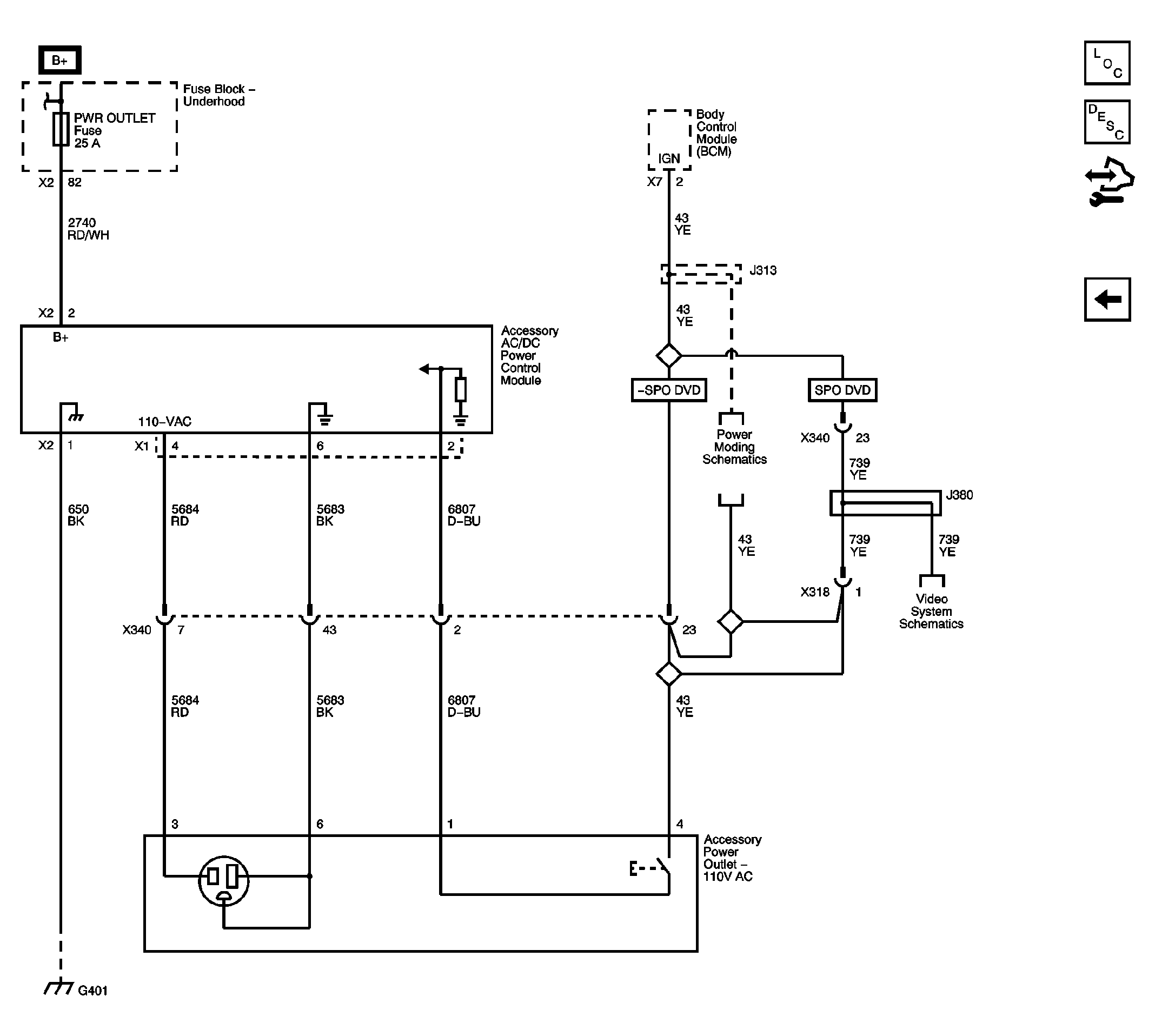

Fig 2: Cigar Lighter/Power Outlet Circuit Schematic - AC Power (KV1)

Courtesy of GENERAL MOTORS CORP.
