Acadia SLT, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Sun Roof/T-Top/Convertible Top
>>
Sunroof System
>>
Schematic and Routing Diagrams
>>
Sunroof Schematics
Sunroof Schematics

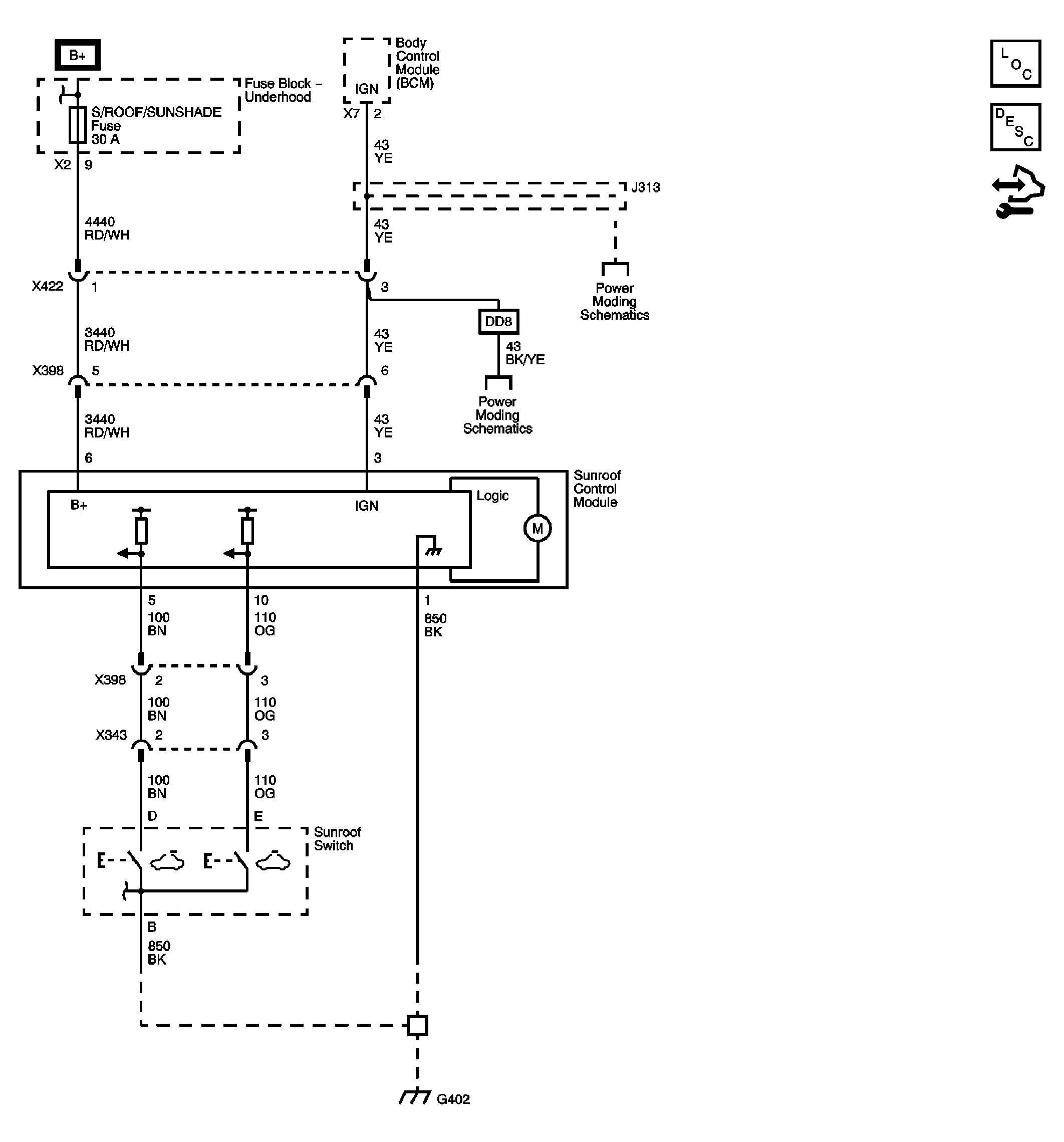

Fig 1: Sunroof Schematic Circuit (C3U)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
