Heated/Cooled Seat Schematics (except A45)

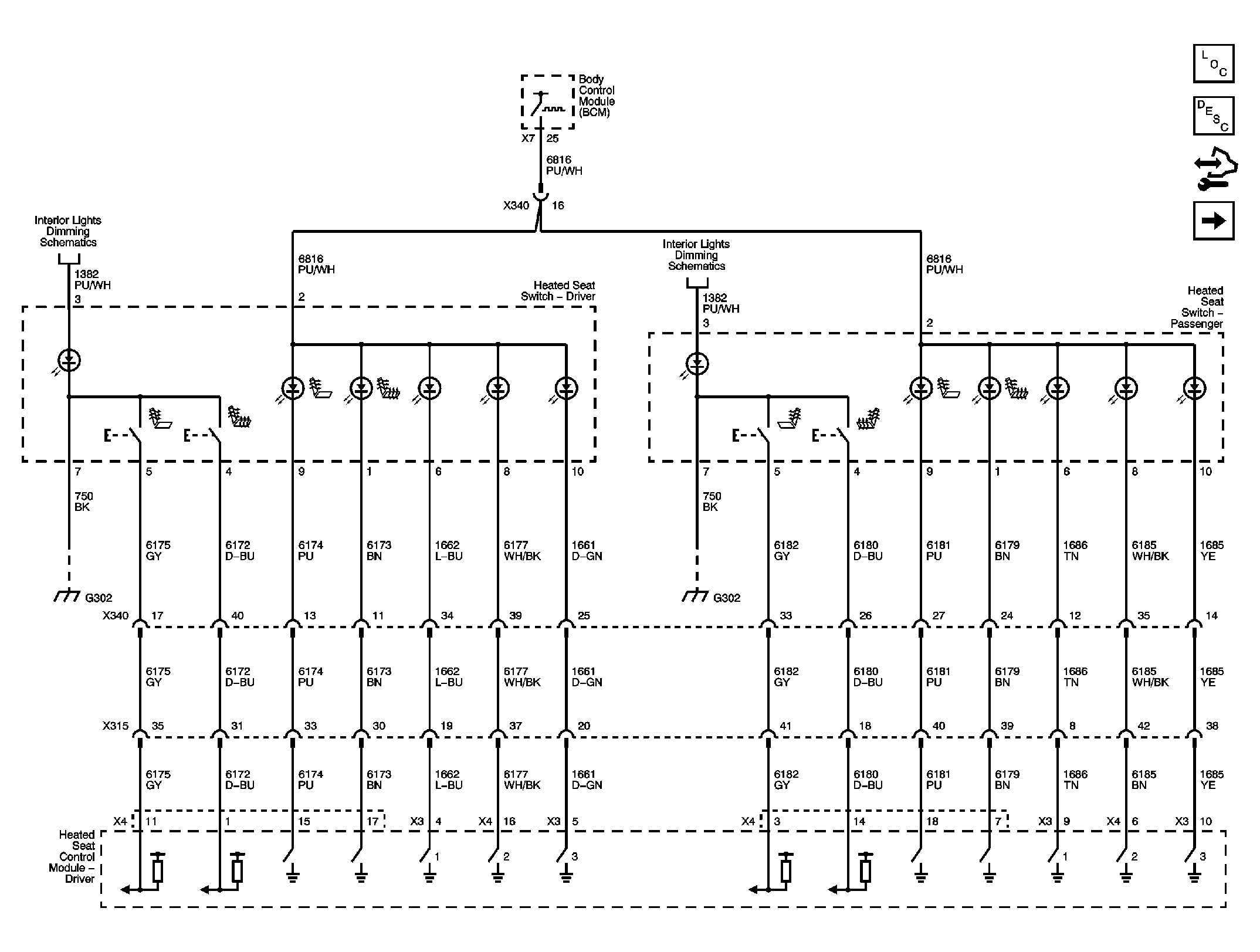

Fig 1: Indicators & Switches Circuit Schematic (Except A45)

Courtesy of GENERAL MOTORS CORP.

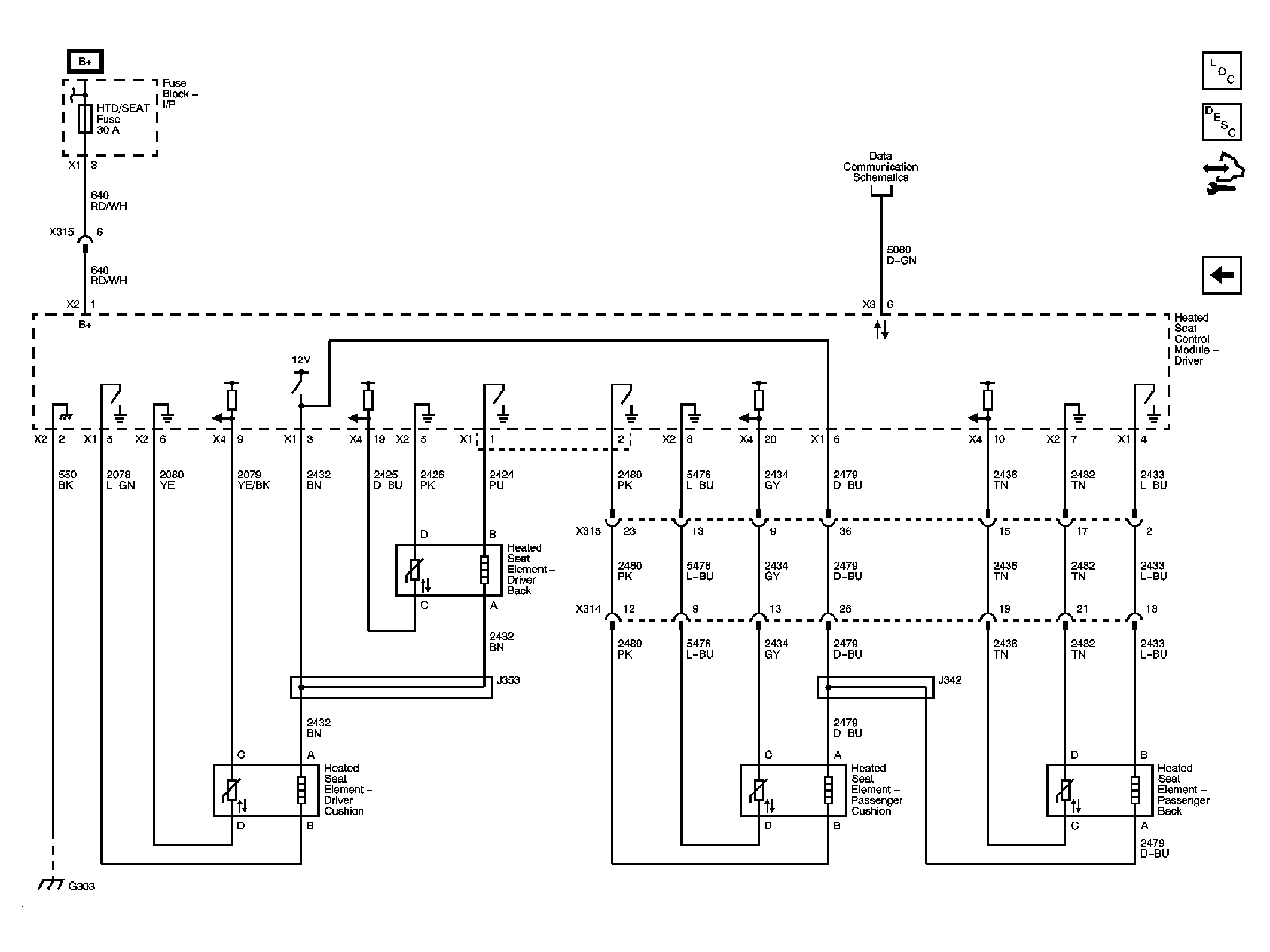

Fig 2: Heating Elements Circuit Schematic (Except A45)

Courtesy of GENERAL MOTORS CORP.
