Heated/Cooled Seat Schematics (A45 with KB6)

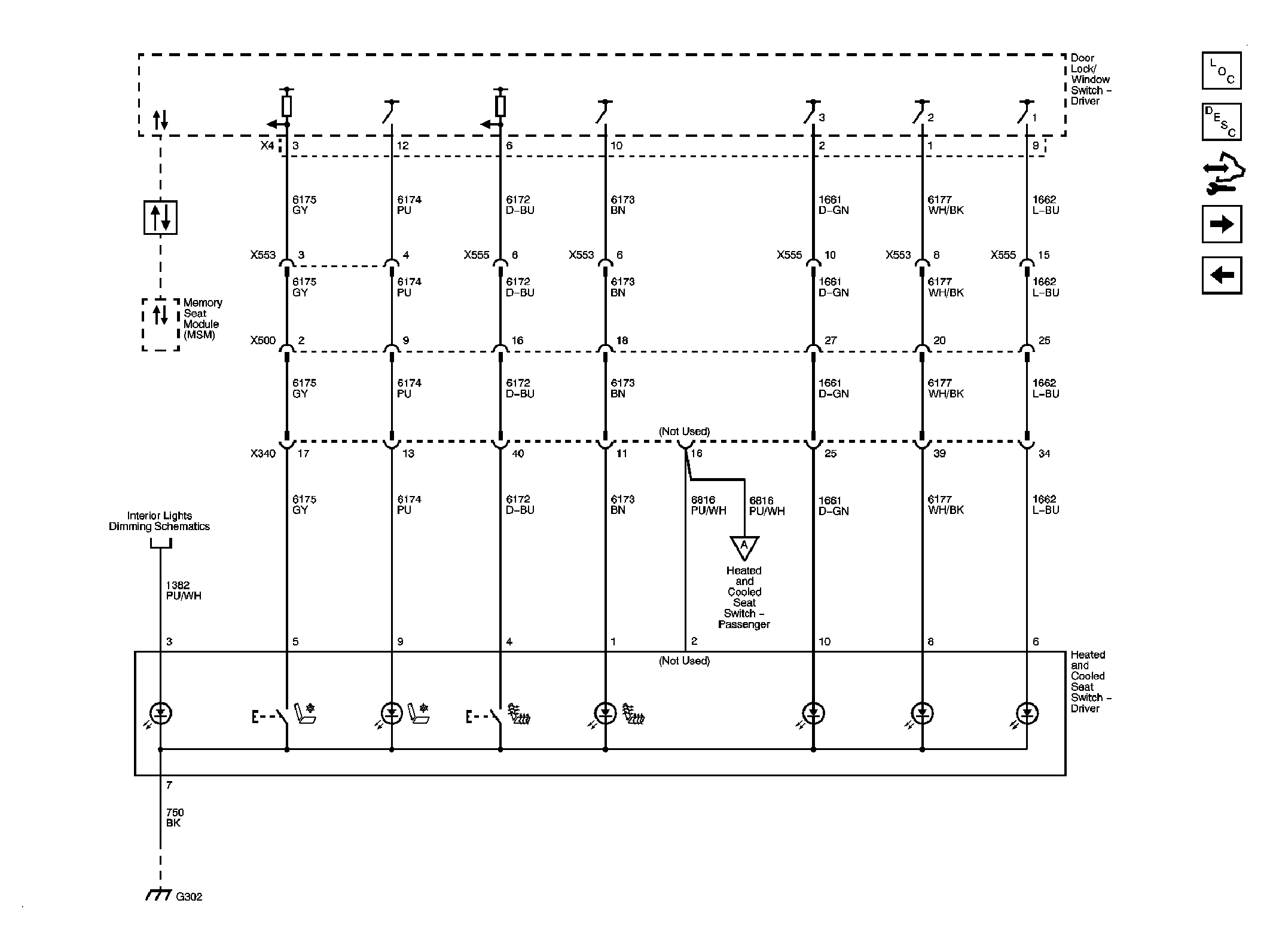

Fig 1: Driver Switch Circuit Schematic (A45 With KB6)

Courtesy of GENERAL MOTORS CORP.

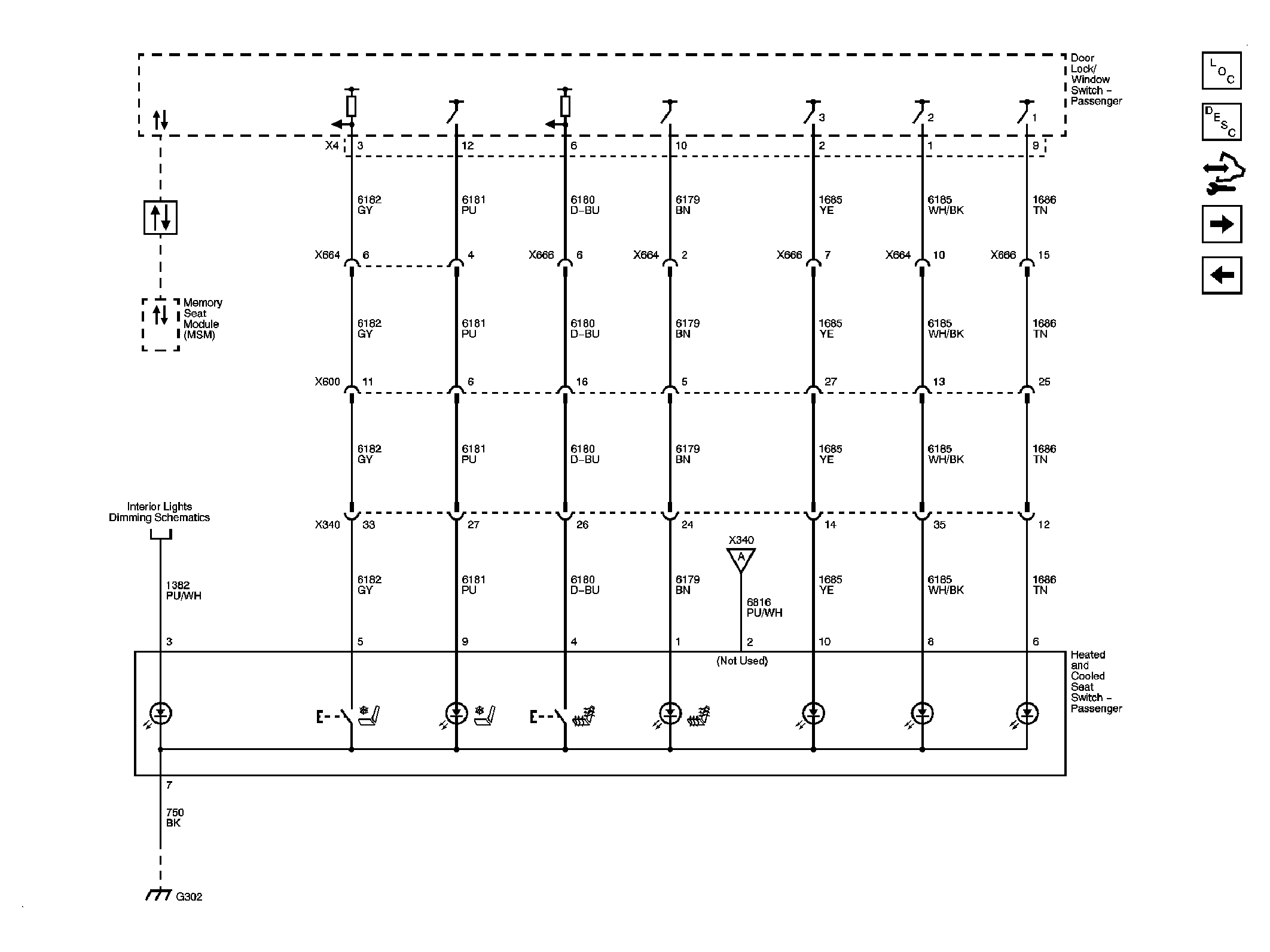

Fig 2: Passenger Switch Circuit Schematic (A45 With KB6)

Courtesy of GENERAL MOTORS CORP.

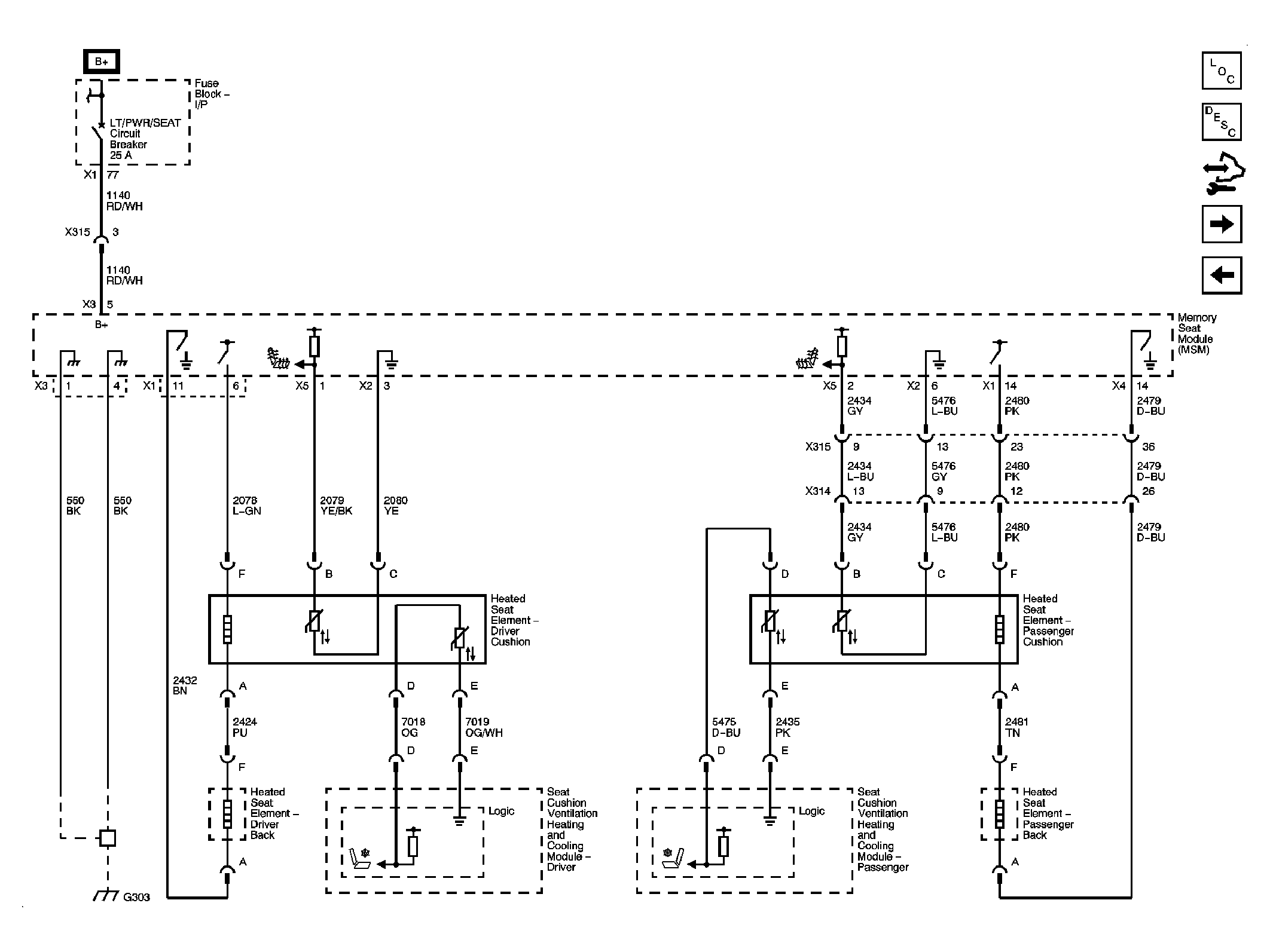

Fig 3: Cushion Temp Sensors & Heating Circuit Schematic (A45 With KB6)

Courtesy of GENERAL MOTORS CORP.

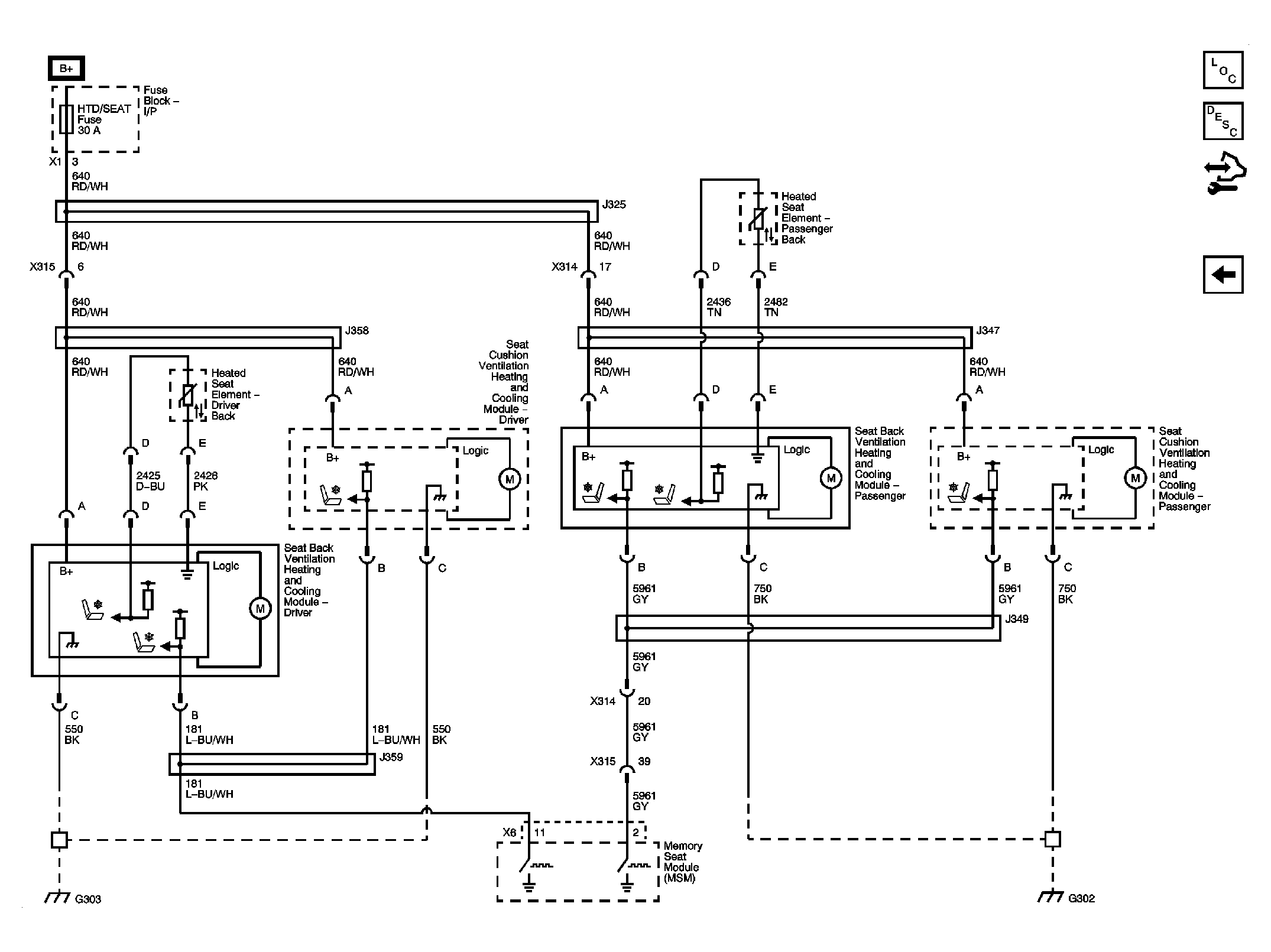

Fig 4: Back Temp Sensors & Cooling Circuit Schematic (A45 With KB6)

Courtesy of GENERAL MOTORS CORP.
