Heated/Cooled Seat Schematics (A45 with KA1)

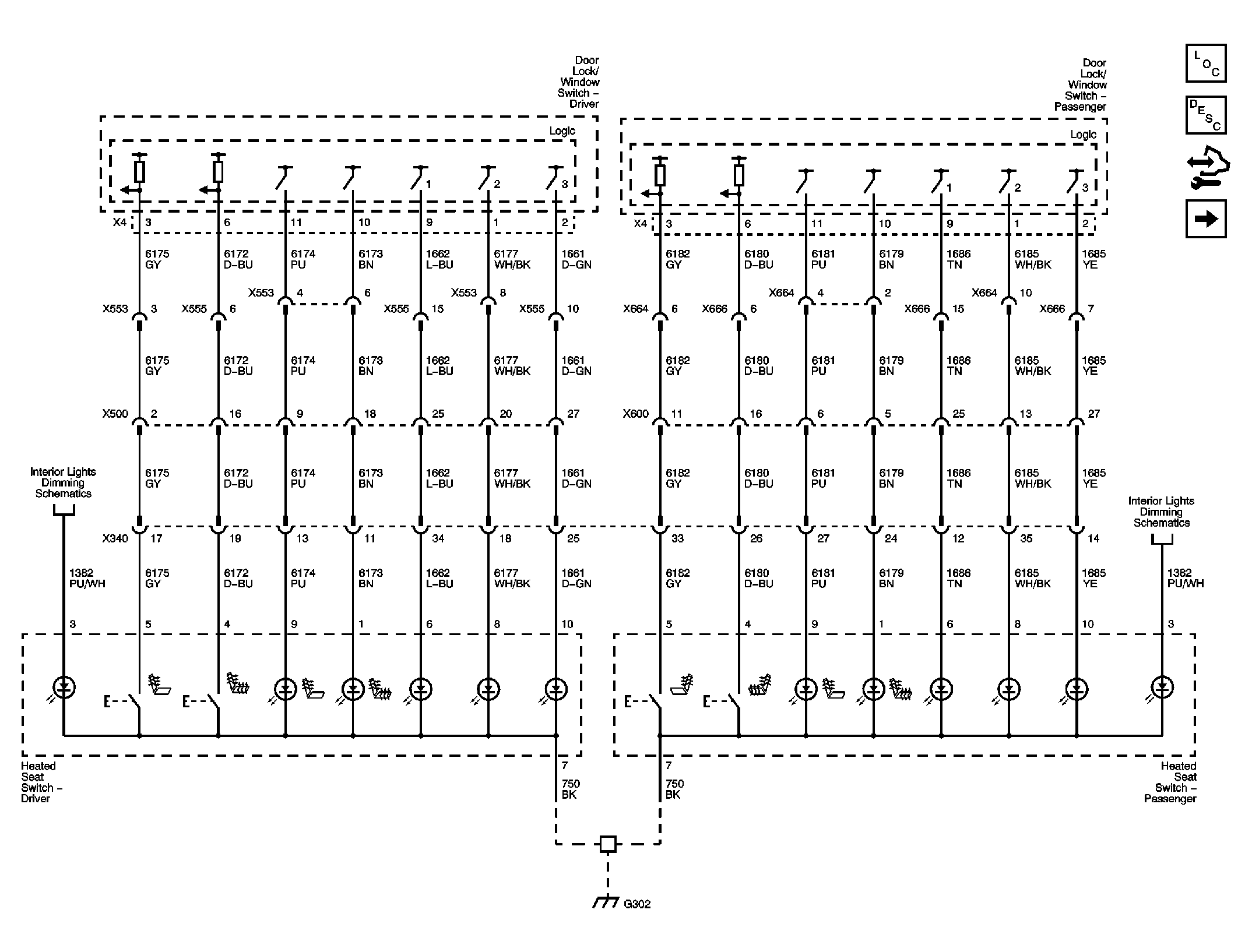

Fig 1: Indicators & Switches Circuit Schematic (A45 With KA1)

Courtesy of GENERAL MOTORS CORP.

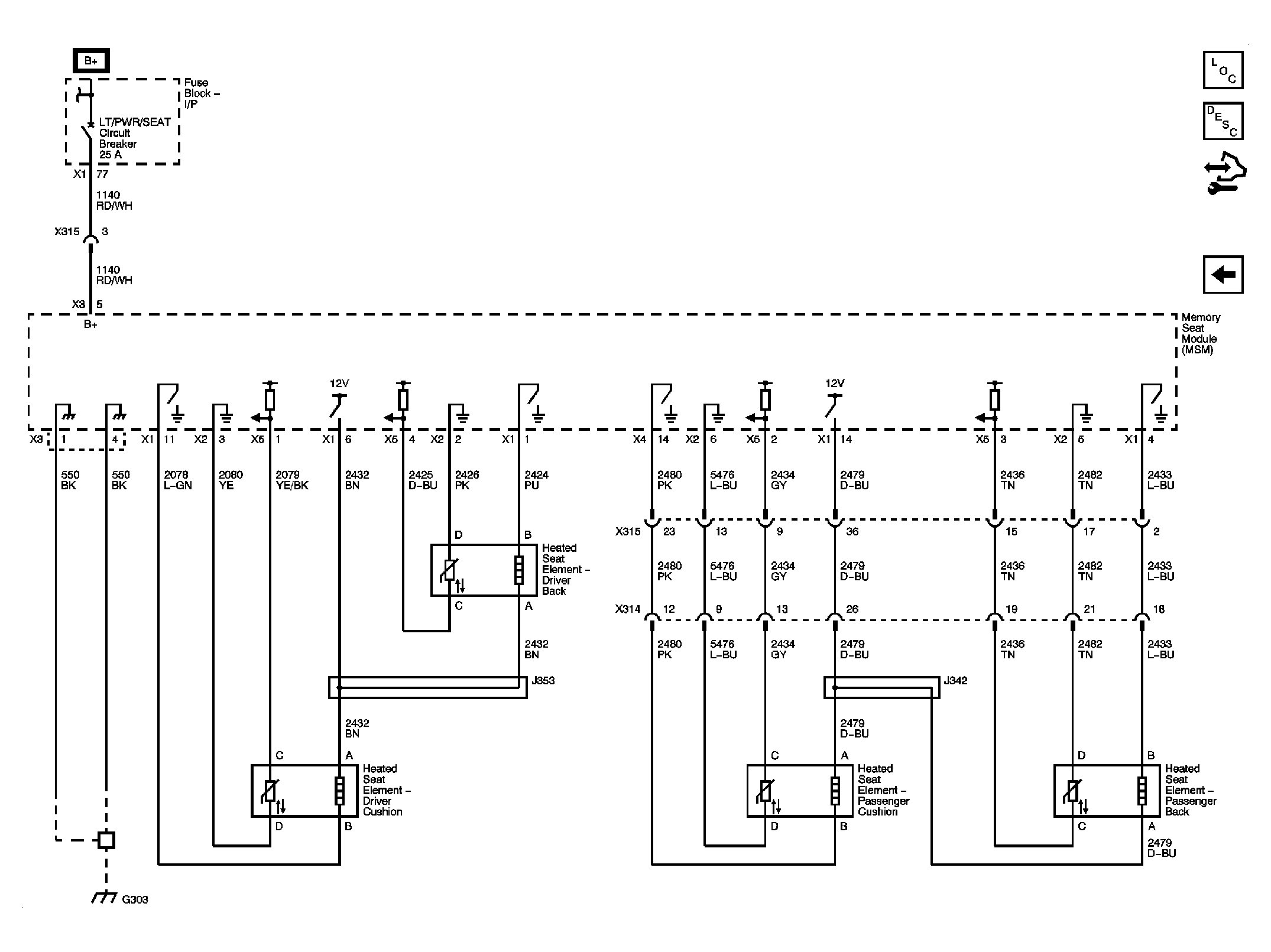

Fig 2: Heating Elements Circuit Schematic (A45 With KA1)

Courtesy of GENERAL MOTORS CORP.
