Liftgate Schematics

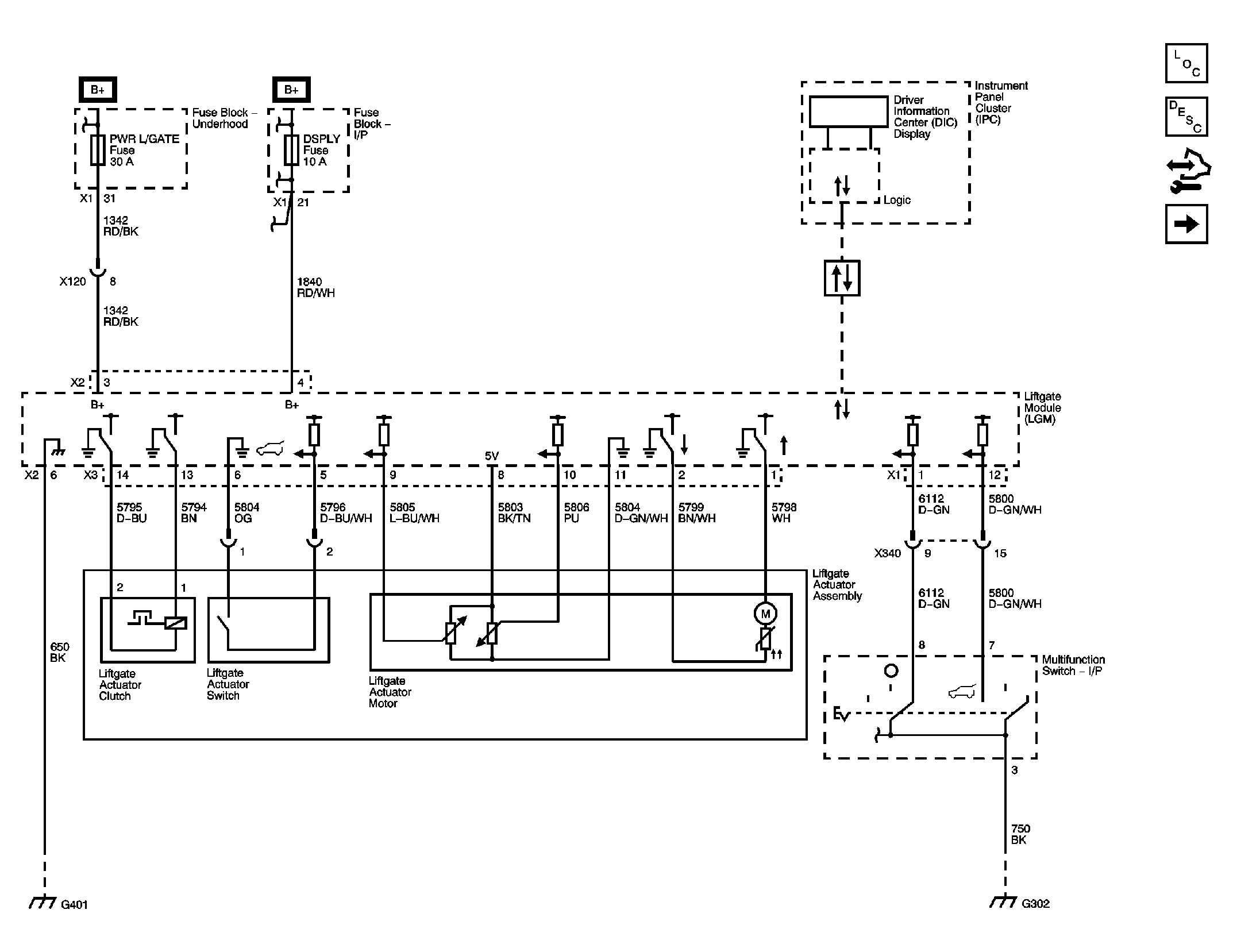

Fig 1: Module Power, Ground, Data Communication, Indicator, I/P Switch, and Liftgate Motor Circuit Schematic (TB5)

Courtesy of GENERAL MOTORS CORP.

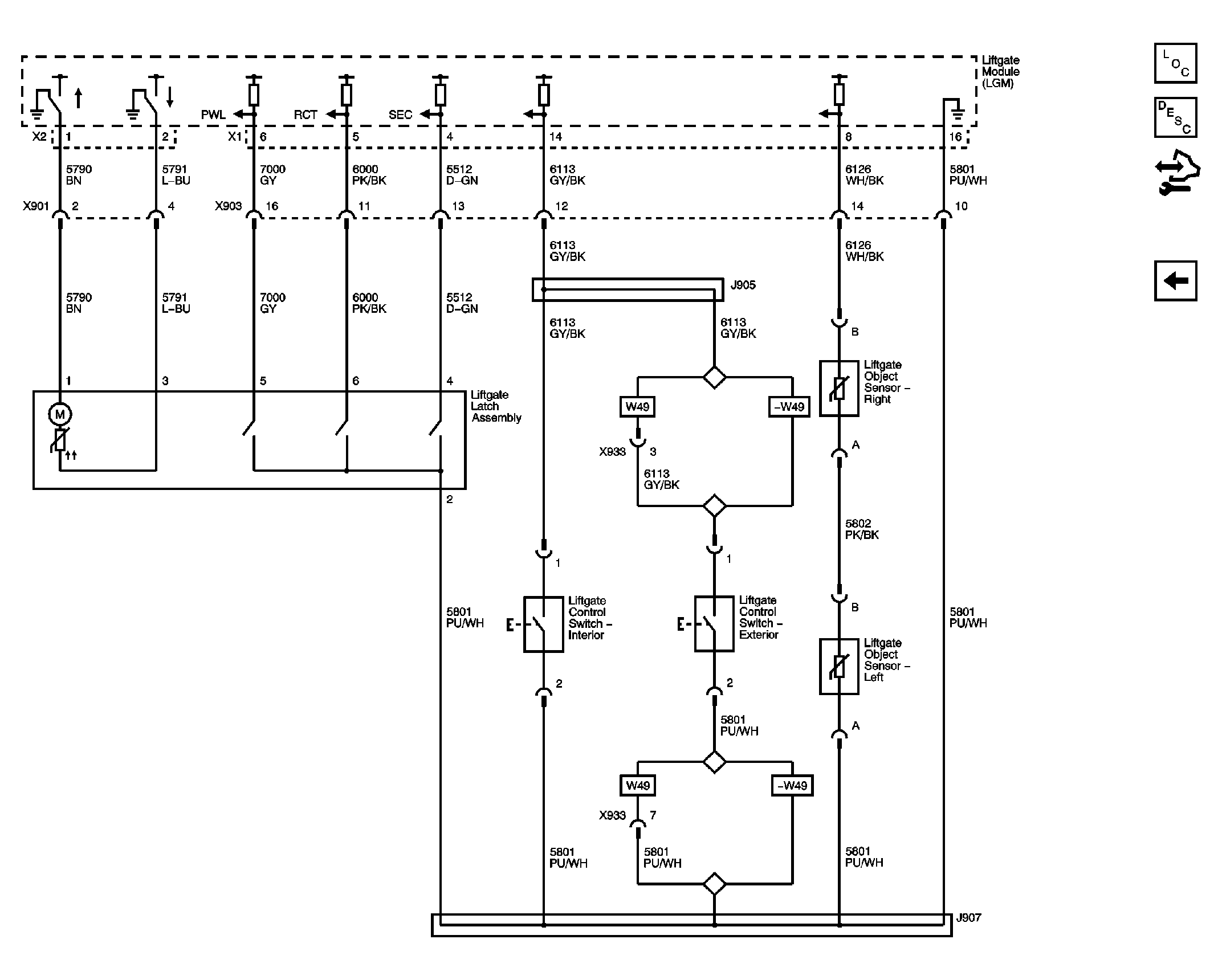

Fig 2: Latch, Object Sensors, and Switches Circuit Schematic (TB5)

Courtesy of GENERAL MOTORS CORP.
