Door Control Module Schematics

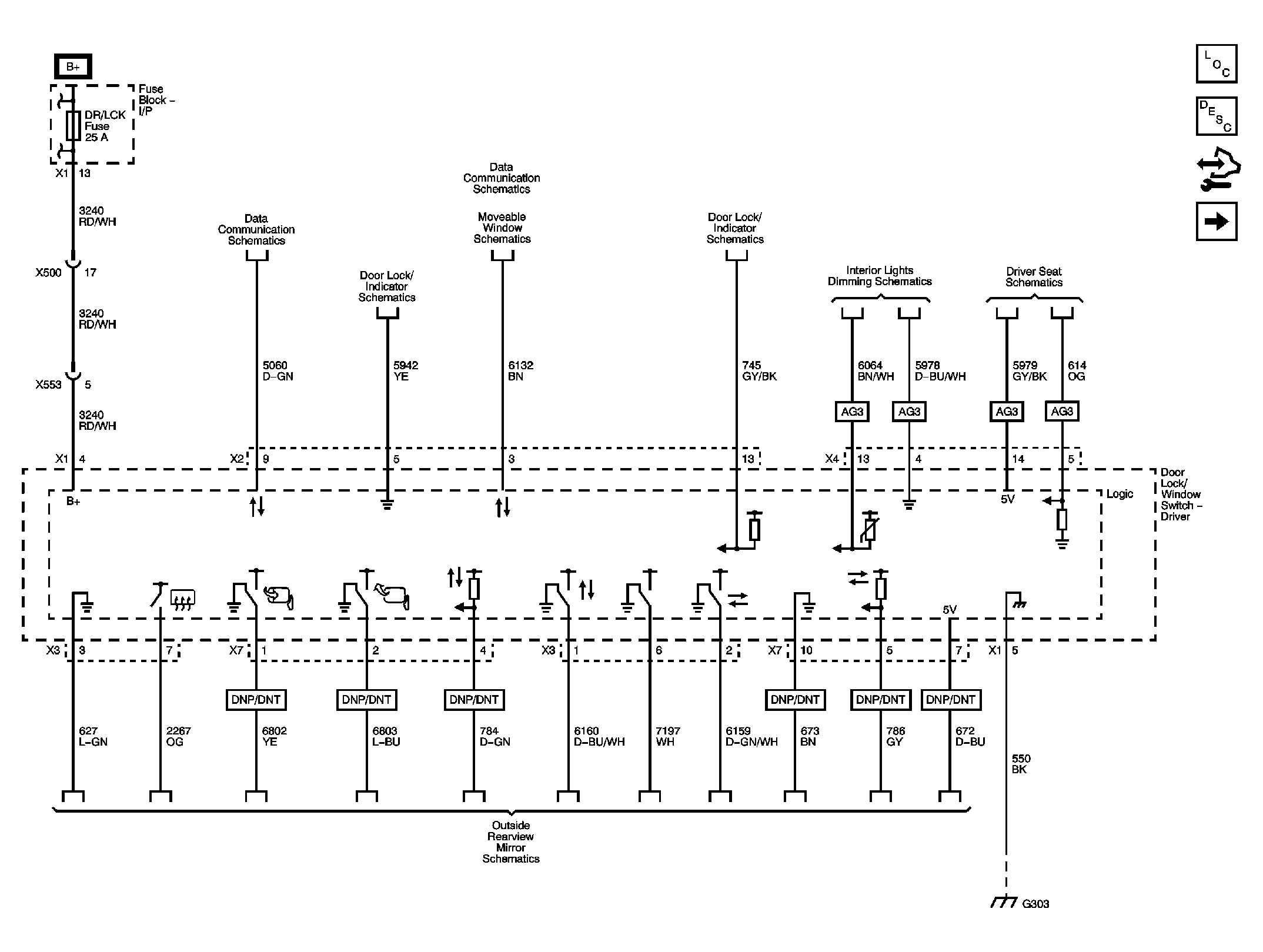

Fig 1: DDM Power, Ground & all except KA1 or KB6 References Circuit Schematic
GM2247990Courtesy of GENERAL MOTORS CORP.

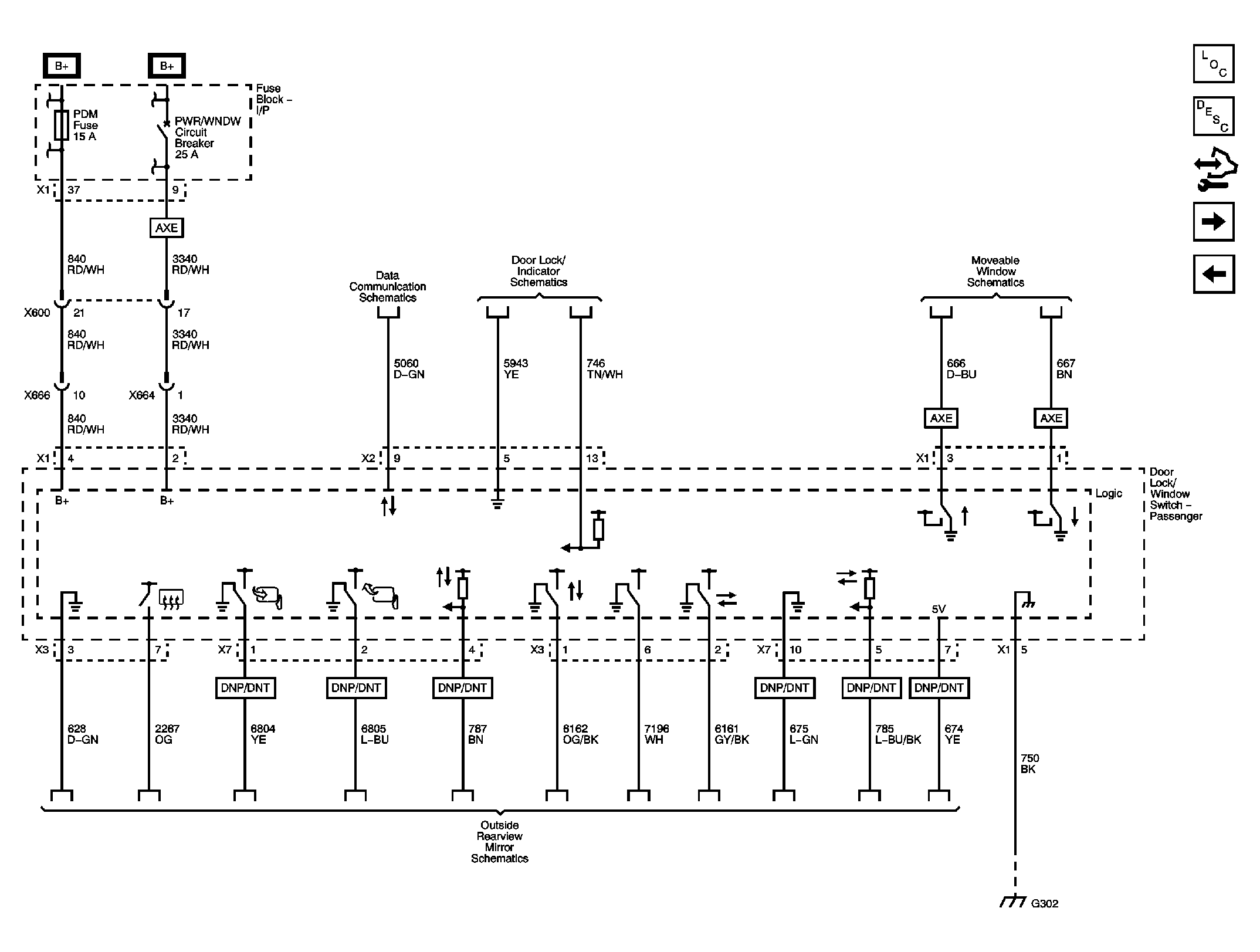

Fig 2: PDM Power, Ground & all except KA1 or KB6 References Circuit Schematic
GM2247994Courtesy of GENERAL MOTORS CORP.

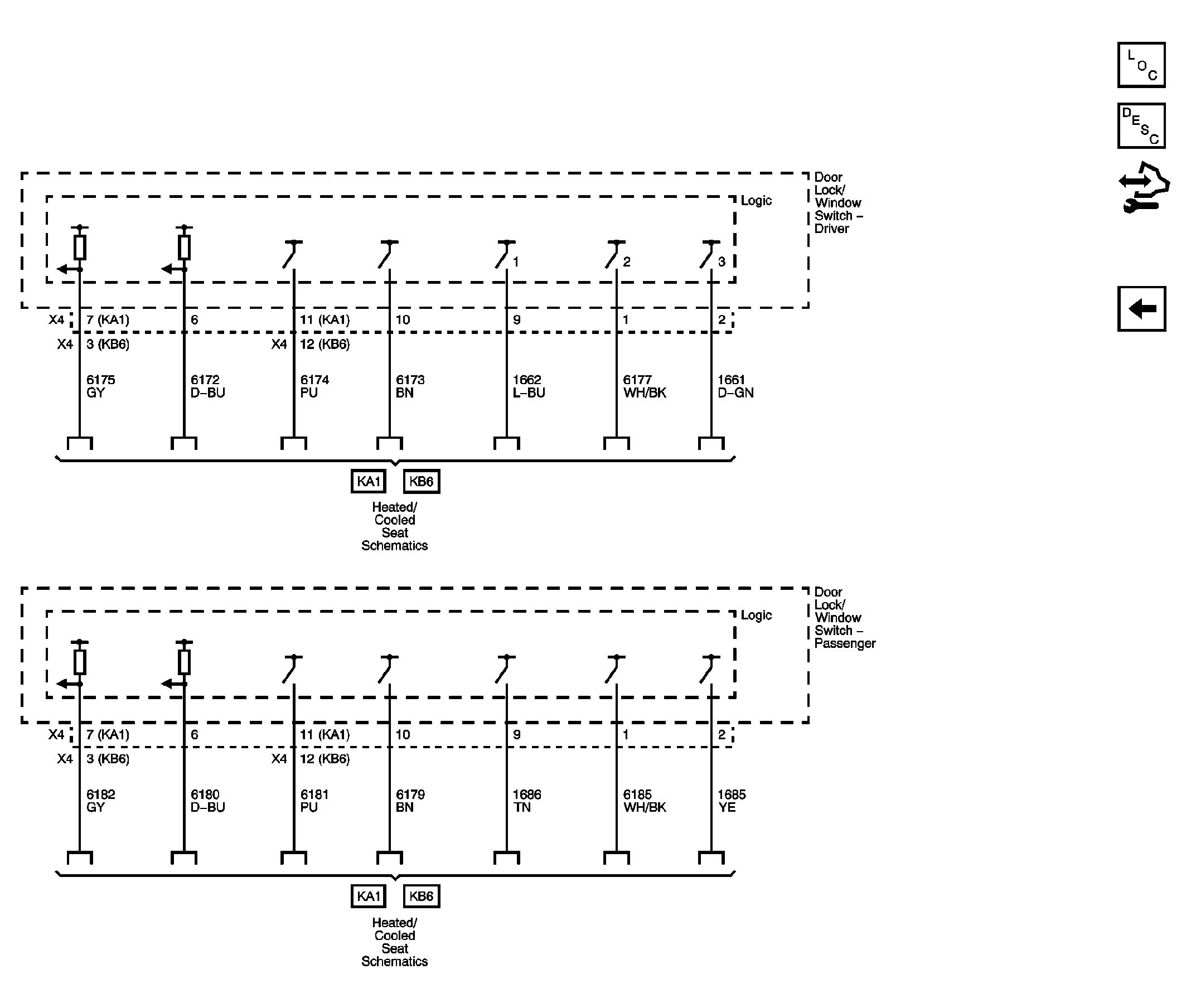

Fig 3: KA1 & KB6 References Circuit Schematic
GM2248001Courtesy of GENERAL MOTORS CORP.
