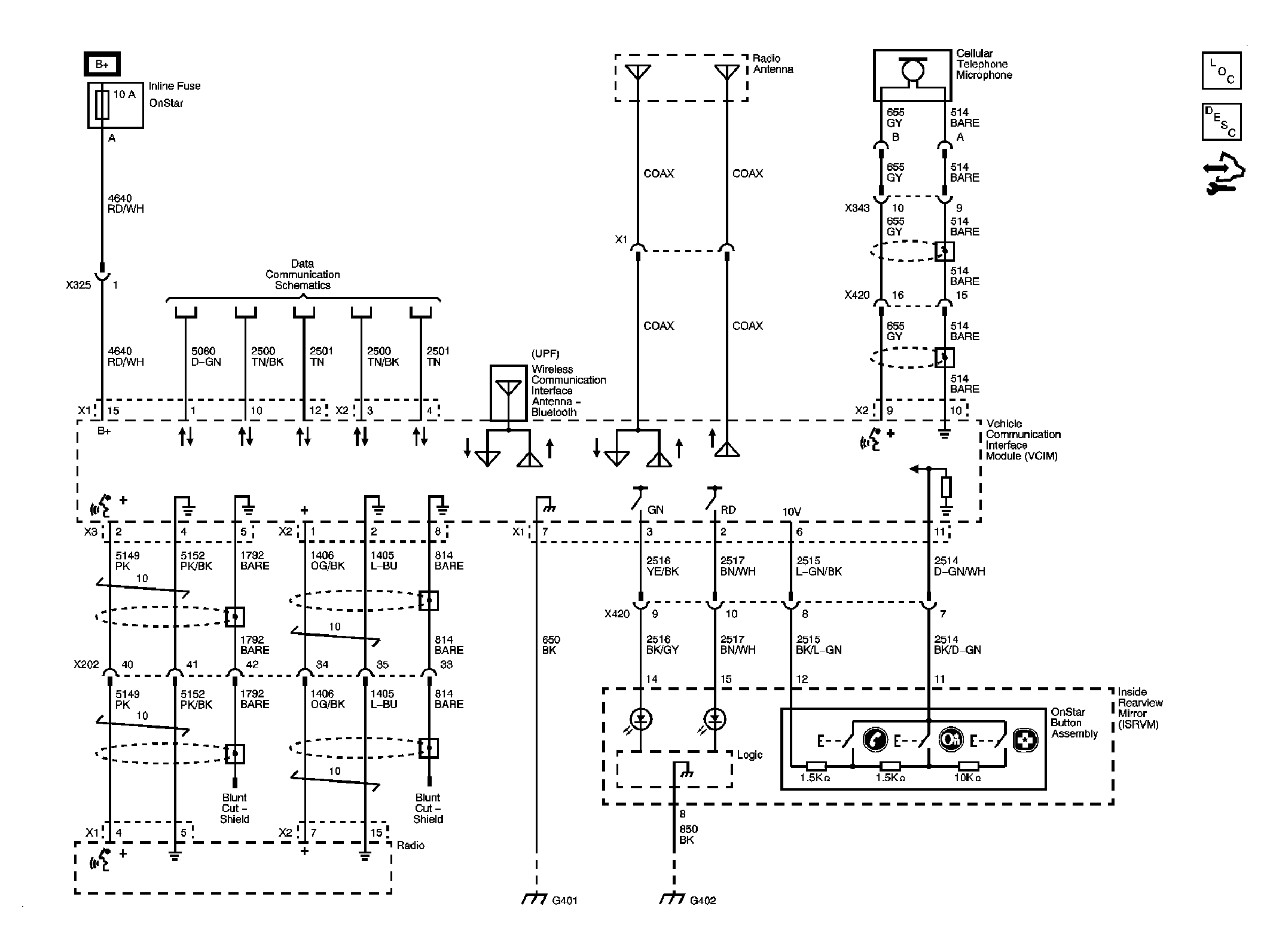

Home >> GMC >> 2010 >> Acadia SLT, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Cellular Systems, Entertainment Systems & Navigation Systems >> Schematic and Routing Diagrams >> OnStar Schematics
