Water Outlet Installation

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

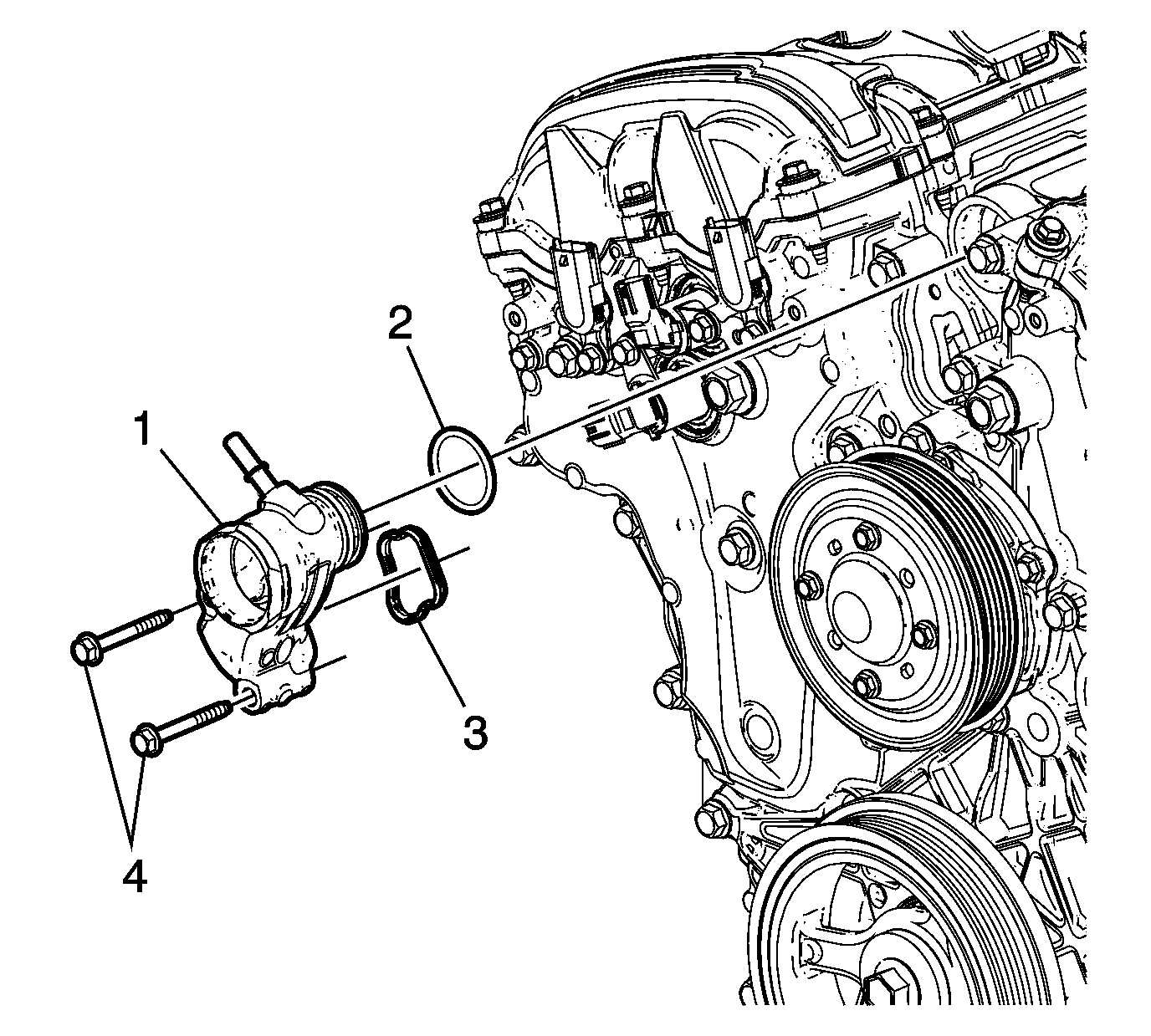

    Fig 1: View Of Water Outlet, Bolts & Seals
    GM2202024Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW water outlet seals (2) and (3).
  2. Install the water outlet (1).
  3. Install the water outlet bolts (4).
