Intake Manifold Installation (LF1 or LFW)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Intake Manifold Gasket

Courtesy of GENERAL MOTORS CORP.

Install the NEW intake manifold gasket (1).

Fig 2: View Of Intake Manifold Assembly

Courtesy of GENERAL MOTORS CORP.

Install the intake manifold assembly (2).
Install the intake manifold bolts (1).

Fig 3: Identifying Intake Manifold Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Tighten the intake manifold bolts in the sequence shown.
Tighten the intake manifold bolts in sequence to 25 N.m (18 lb ft).
Tighten the intake manifold bolts a second pass in sequence to 25 N.m (18 lb ft).

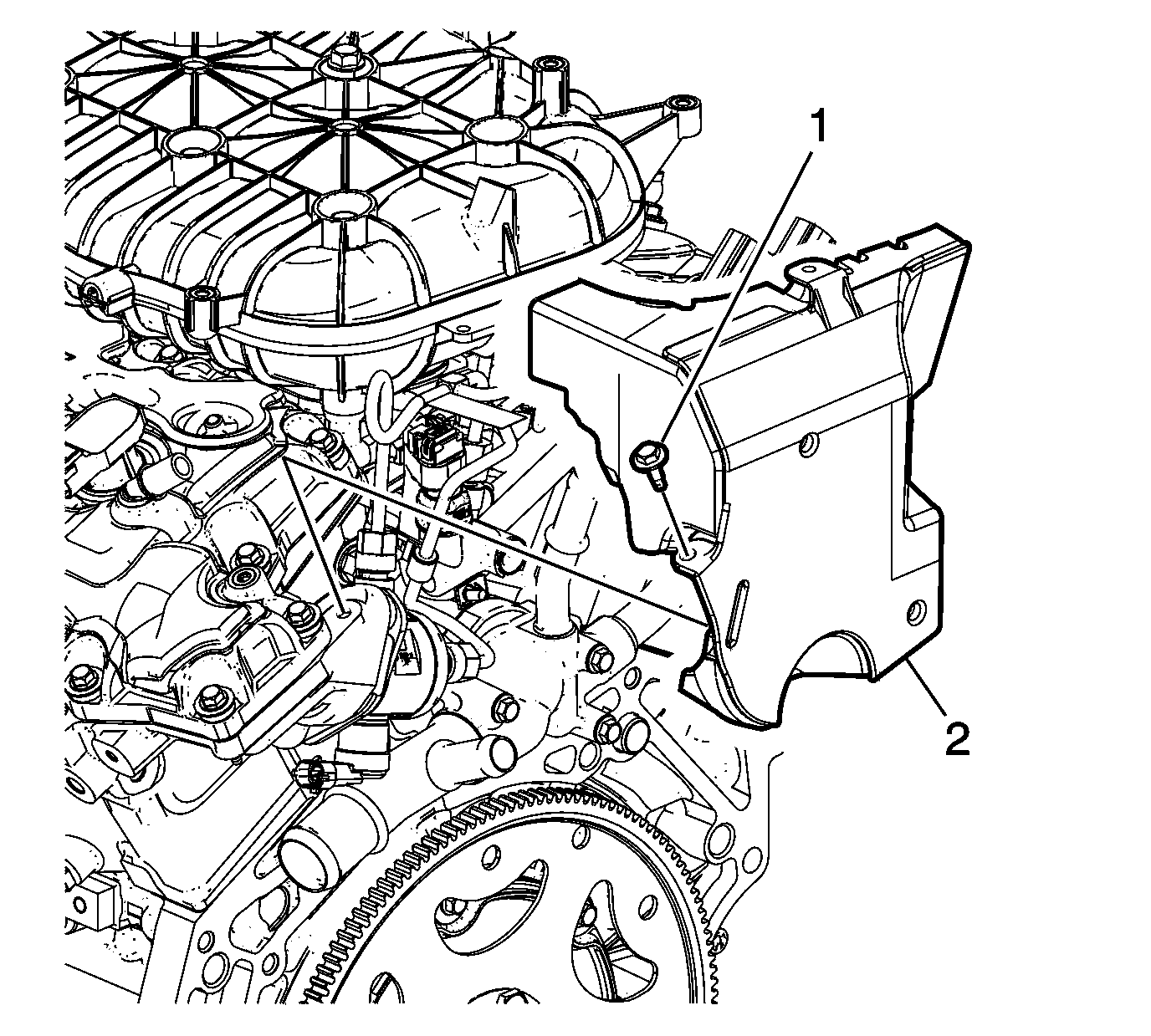

Fig 4: View Of Fuel Pump Cover & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the fuel pump cover (2).
Install the fuel pump cover bolt (1) and tighten to 10 N.m (89 lb in).

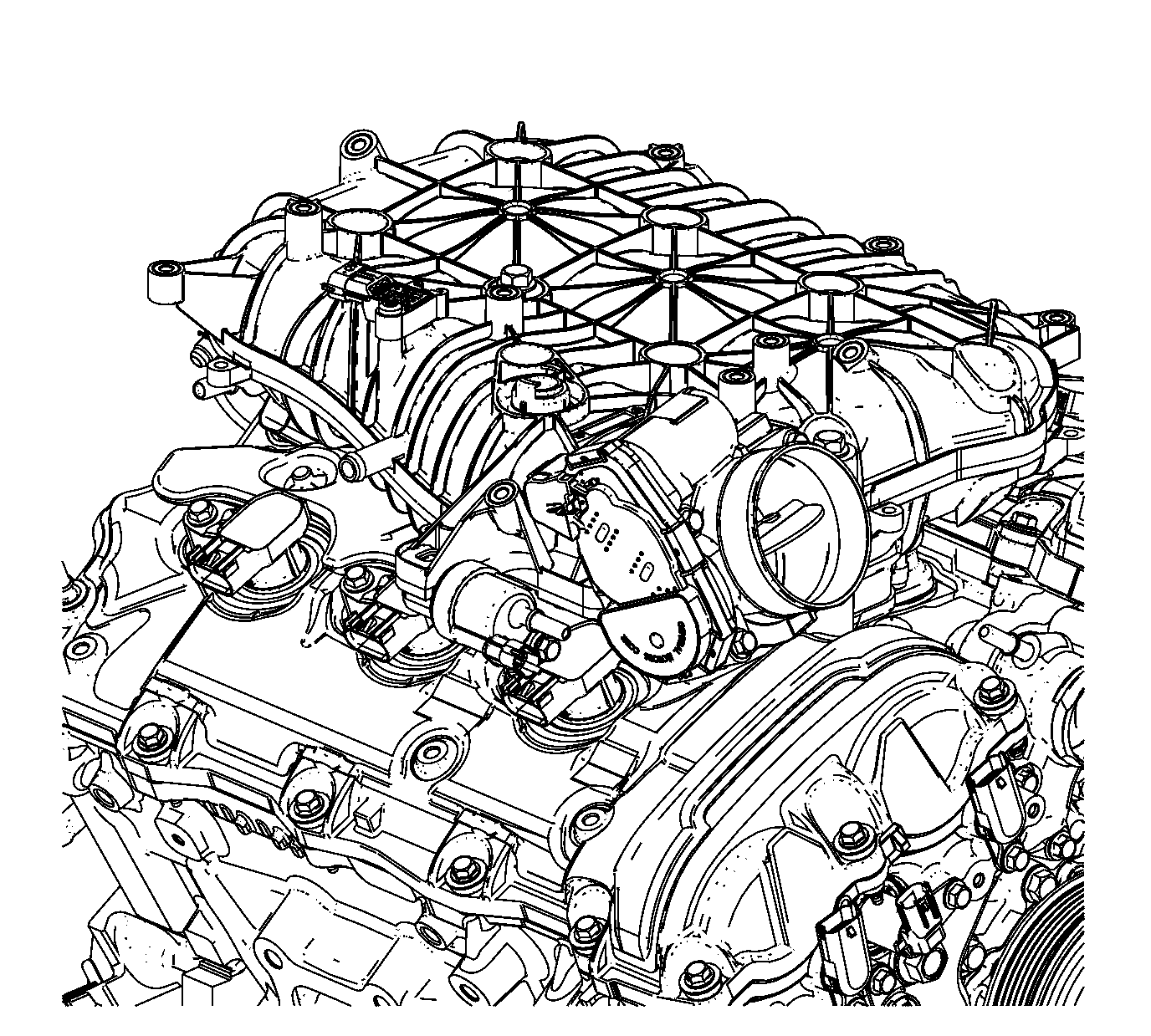

Fig 5: Identifying Upper Intake Manifold & EVAP Solenoid

Courtesy of GENERAL MOTORS CORP.

Connect the evaporative (EVAP) hose to the upper intake manifold and EVAP solenoid.

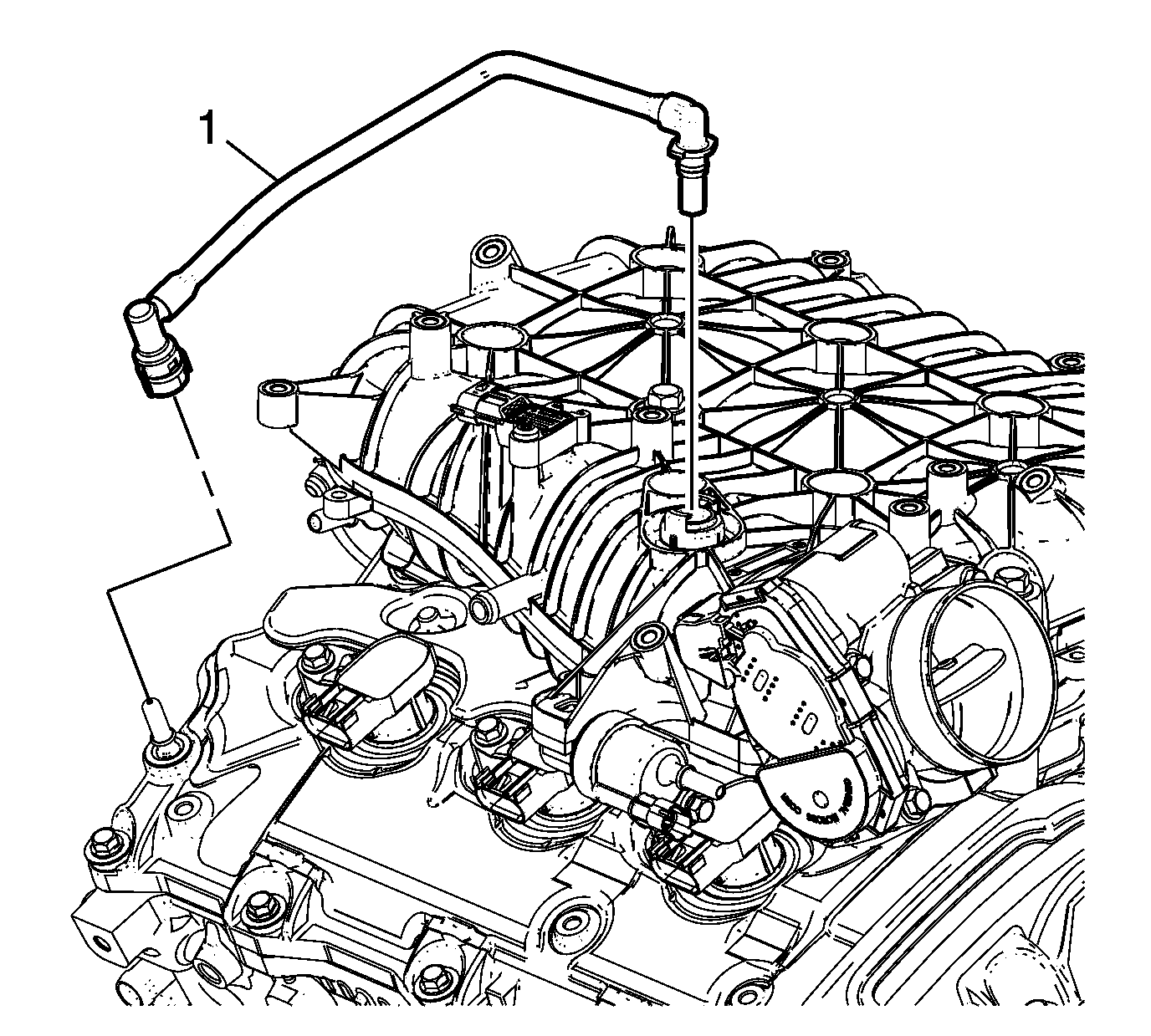

Fig 6: View Of Positive Crankcase Ventilation (PCV) Tube Assembly

Courtesy of GENERAL MOTORS CORP.

Connect the positive crankcase ventilation (PCV) tube assembly (1) to the upper intake manifold and the right camshaft cover.
