Driver Seat Schematics

Fig 1: Driver Seat Schematic (AG1)
GM2248501Courtesy of GENERAL MOTORS CORP.

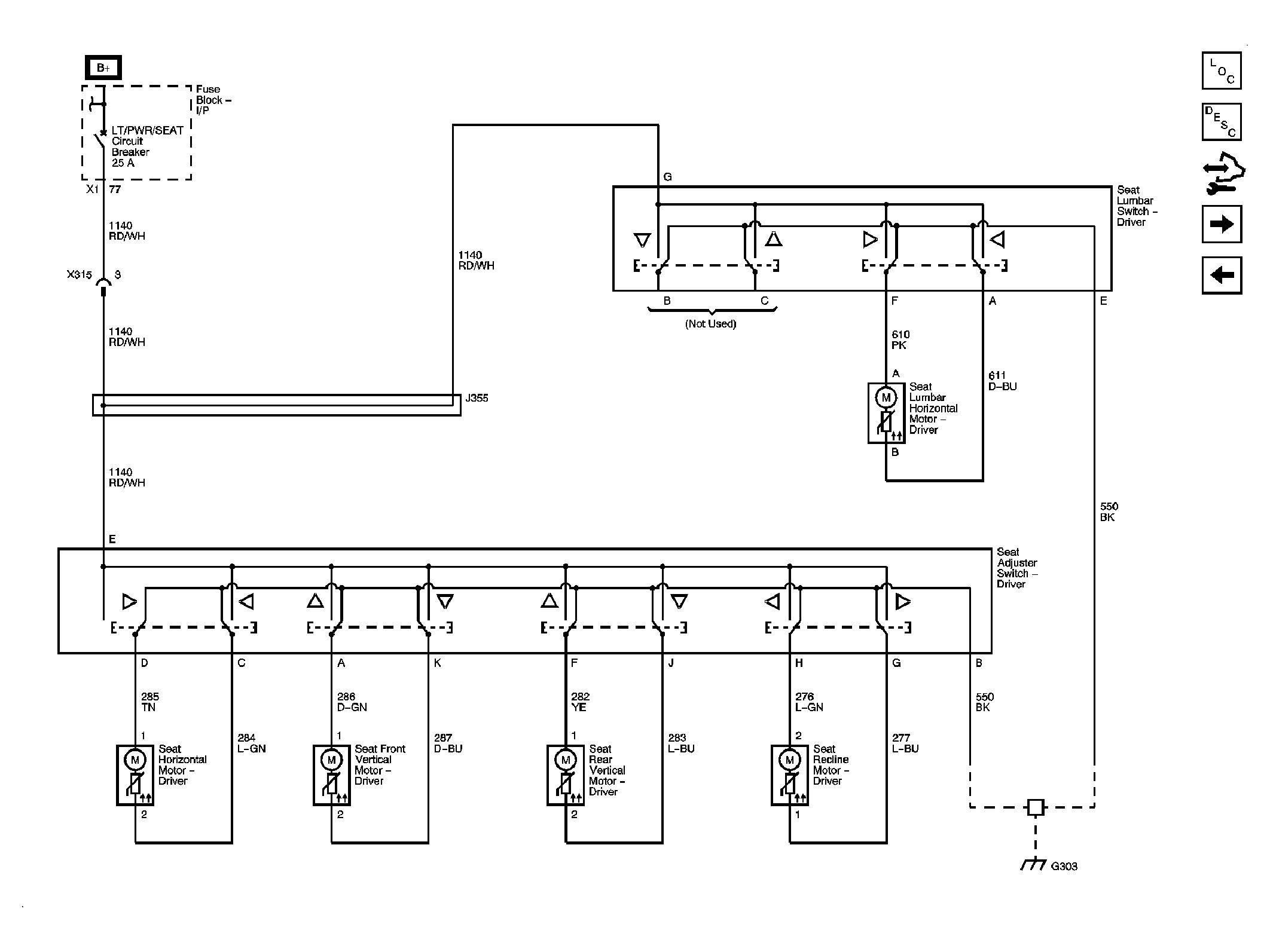

Fig 2: Driver Seat Schematic (AH5)
GM2248504Courtesy of GENERAL MOTORS CORP.

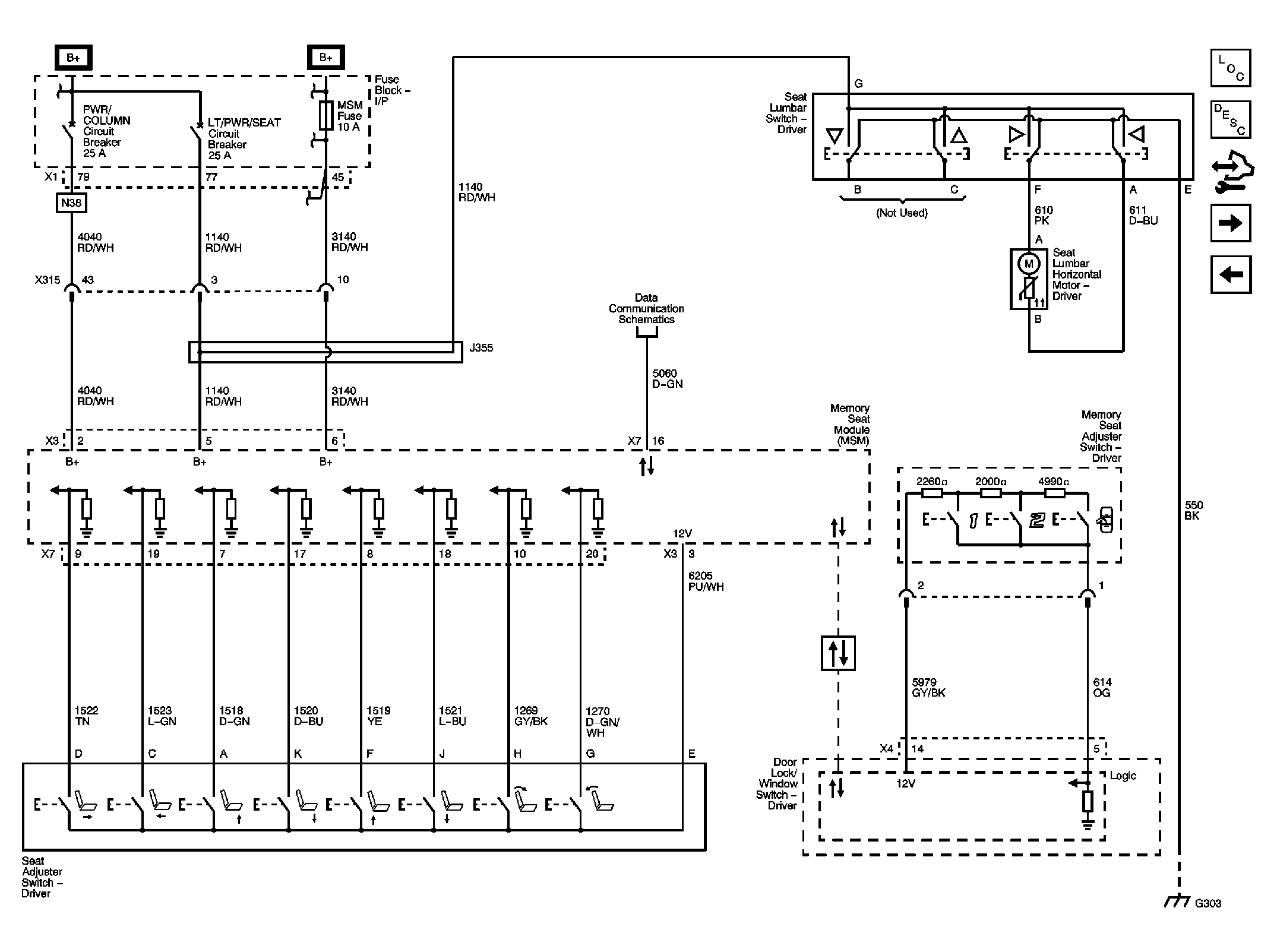

Fig 3: Module Power and Data Communication, Driver Switches and Lumbar Circuit Schematic (AG3)
GM2248507Courtesy of GENERAL MOTORS CORP.

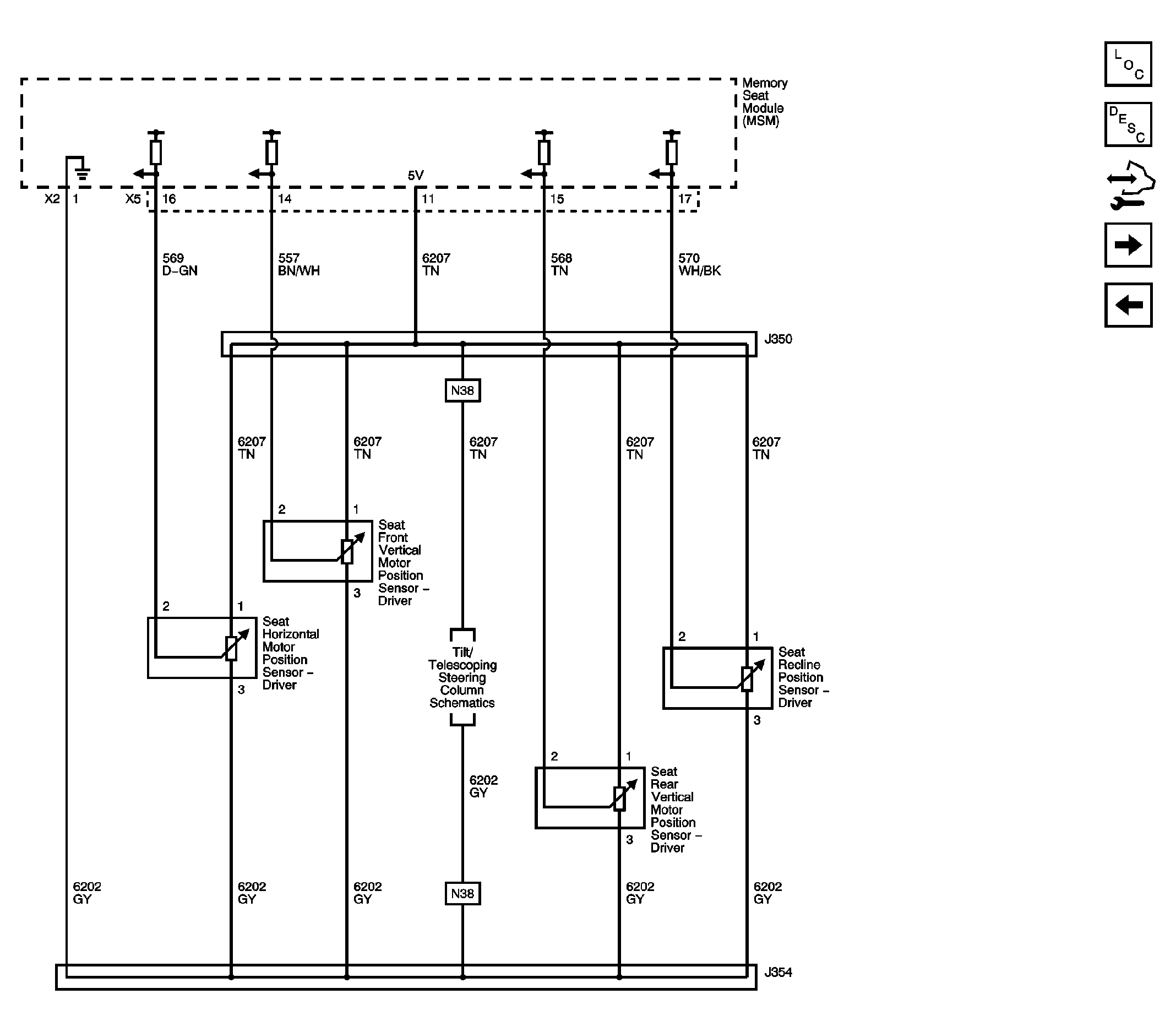

Fig 4: Position Sensors Circuit Schematic (AG3)
GM2248512Courtesy of GENERAL MOTORS CORP.
Fig 5: Module Ground, Recline, Horizontal, and Vertical Motors Circuit Schematic (AG3)
GM2248517Courtesy of GENERAL MOTORS CORP.
