Front Bumper Fascia Upper Support Replacement (Enclave)

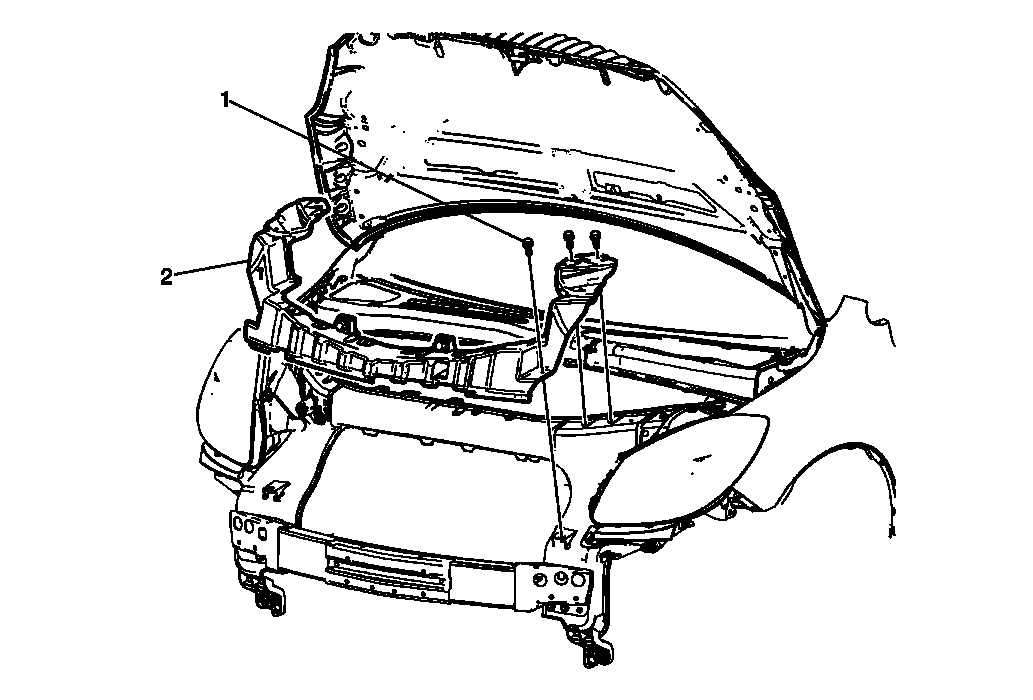

Fig 1: Identifying Front Bumper Fascia Upper Support (Enclave)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Enclave) . Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement . Remove the radiator upper support mounting bolts and position rearward.
1	Front Bumper Fascia Support Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Front Bumper Fascia Support

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Enclave) .
Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement .
Remove the radiator upper support mounting bolts and position rearward.

Front Bumper Fascia Support Bolt (Qty: 6)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Front Bumper Fascia Support
