Control Valve Body Assembly Disassemble




Control Valve Body Assembly Disassemble

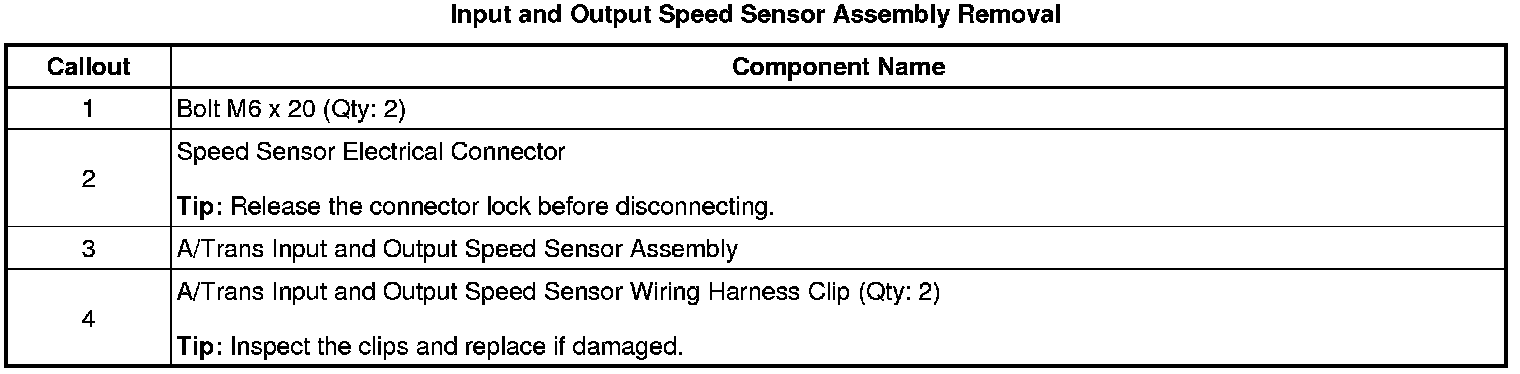

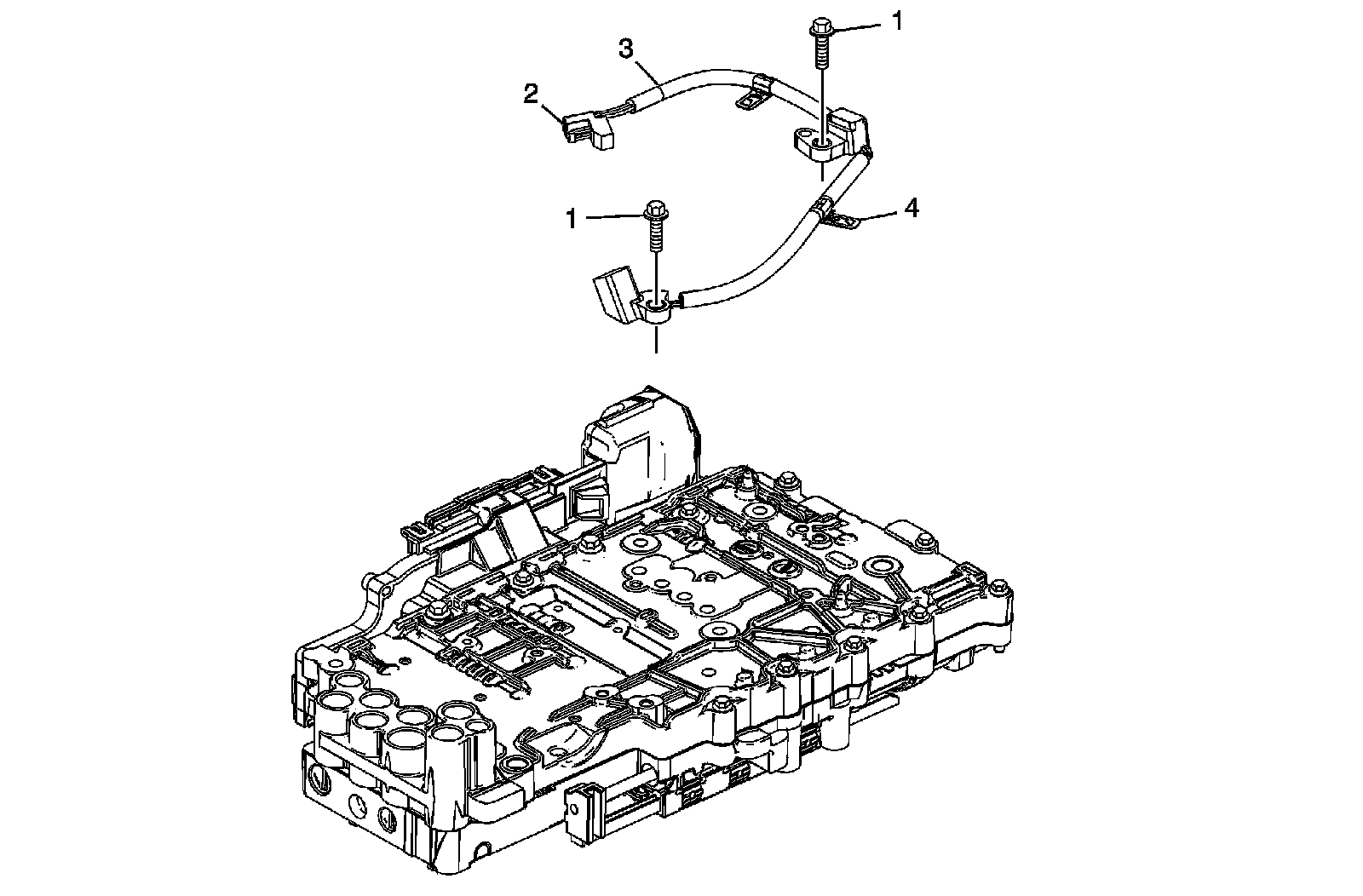

Input and Output Speed Sensor Assembly Removal

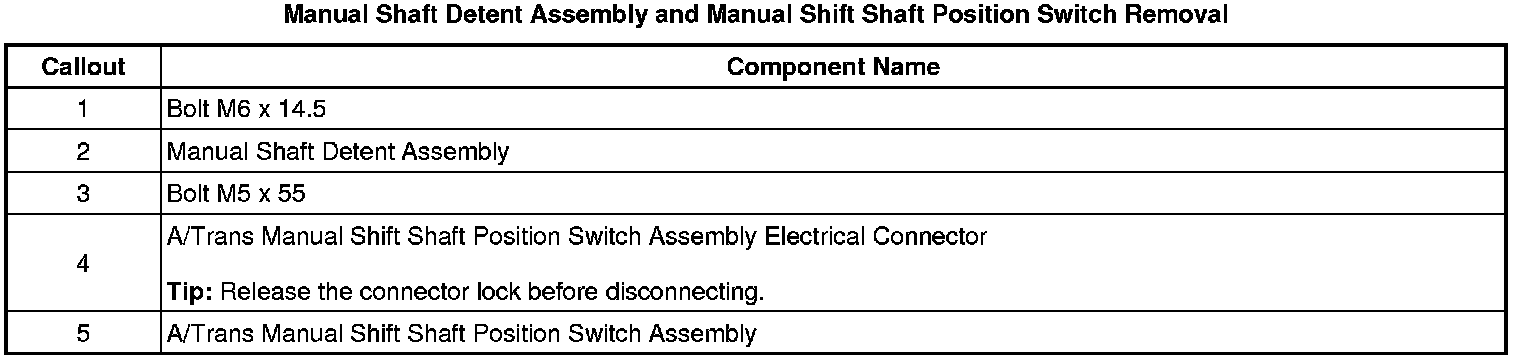

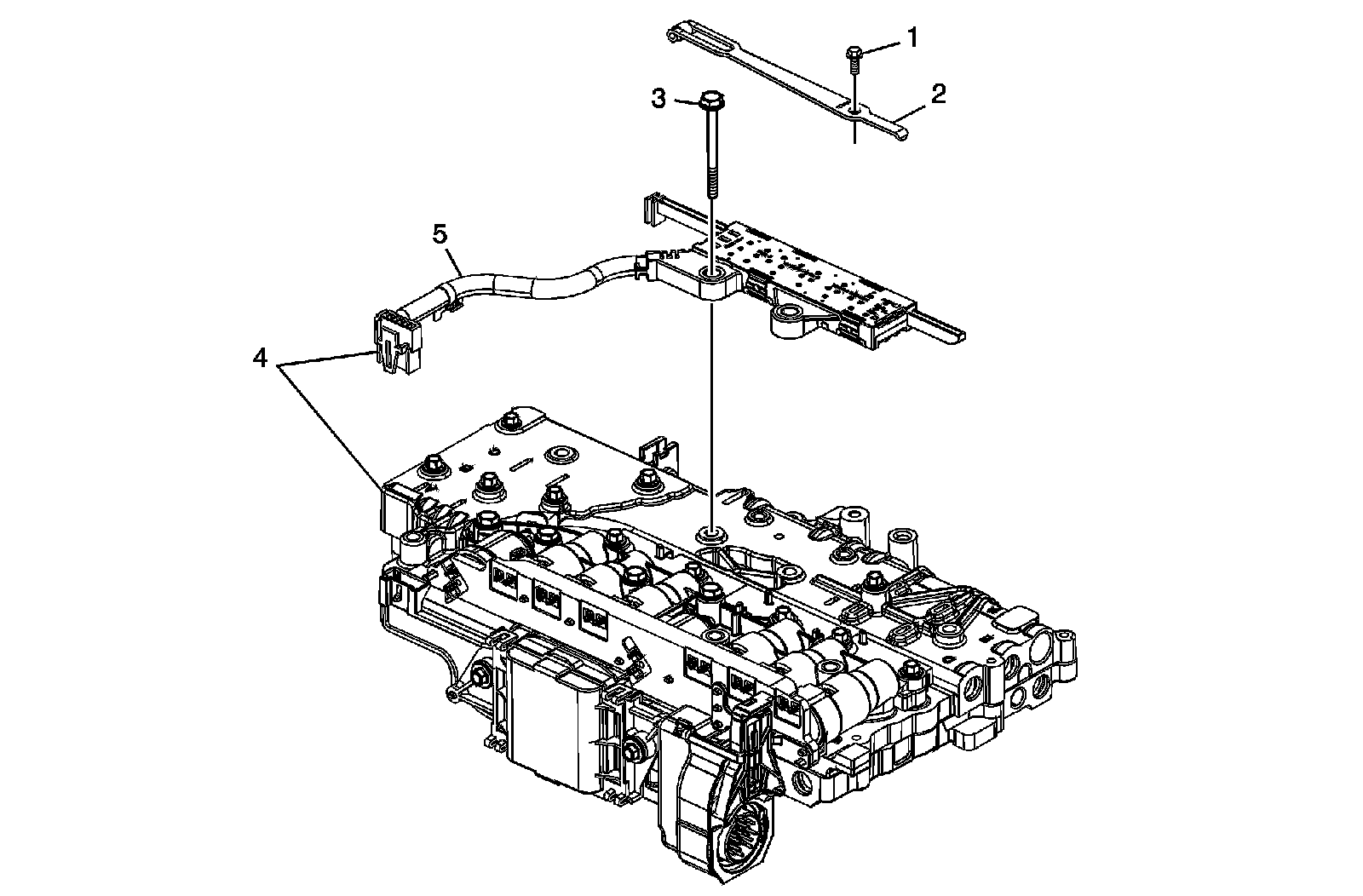

Manual Shaft Detent Assembly and Manual Shift Shaft Position Switch Removal

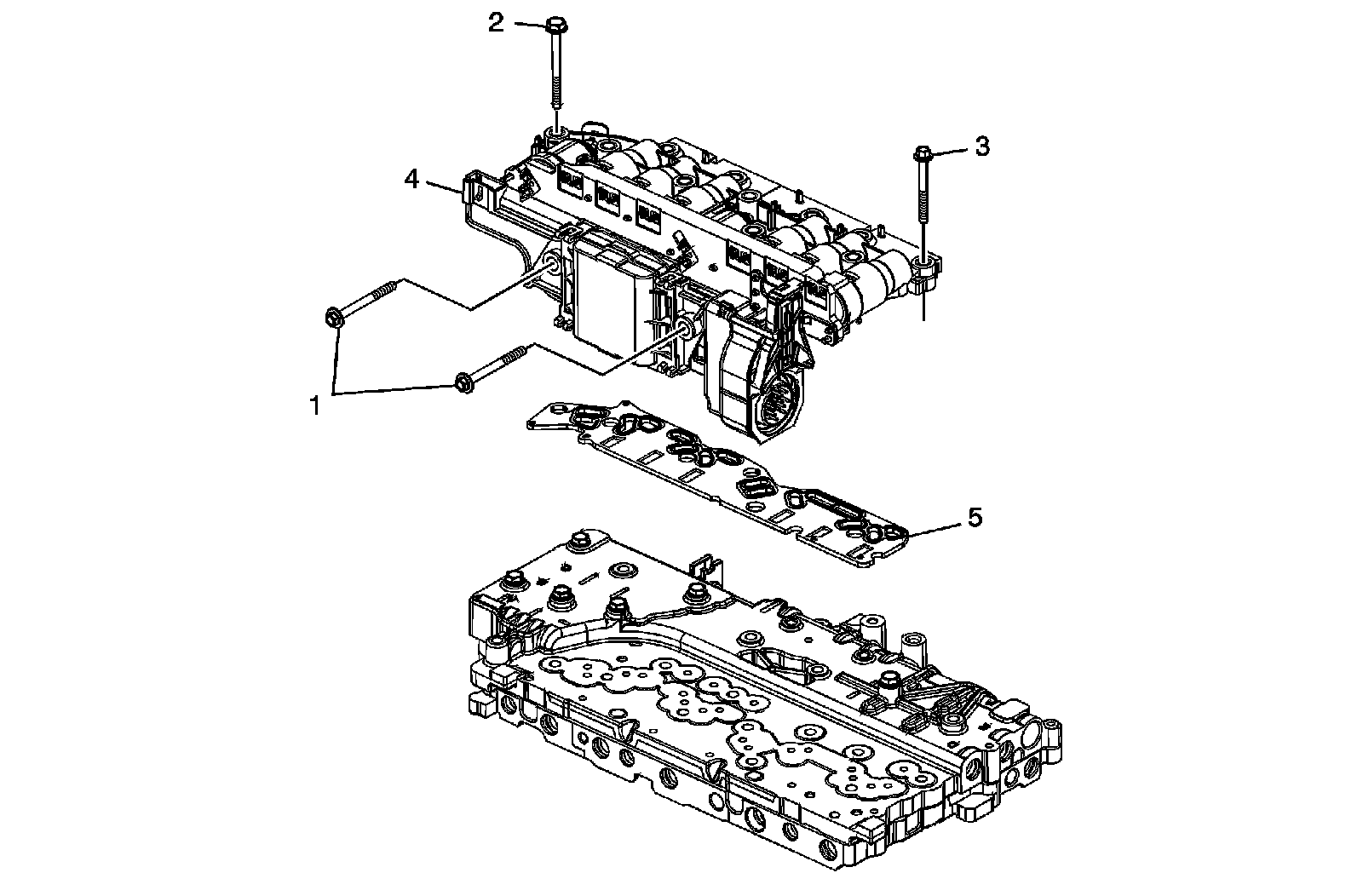

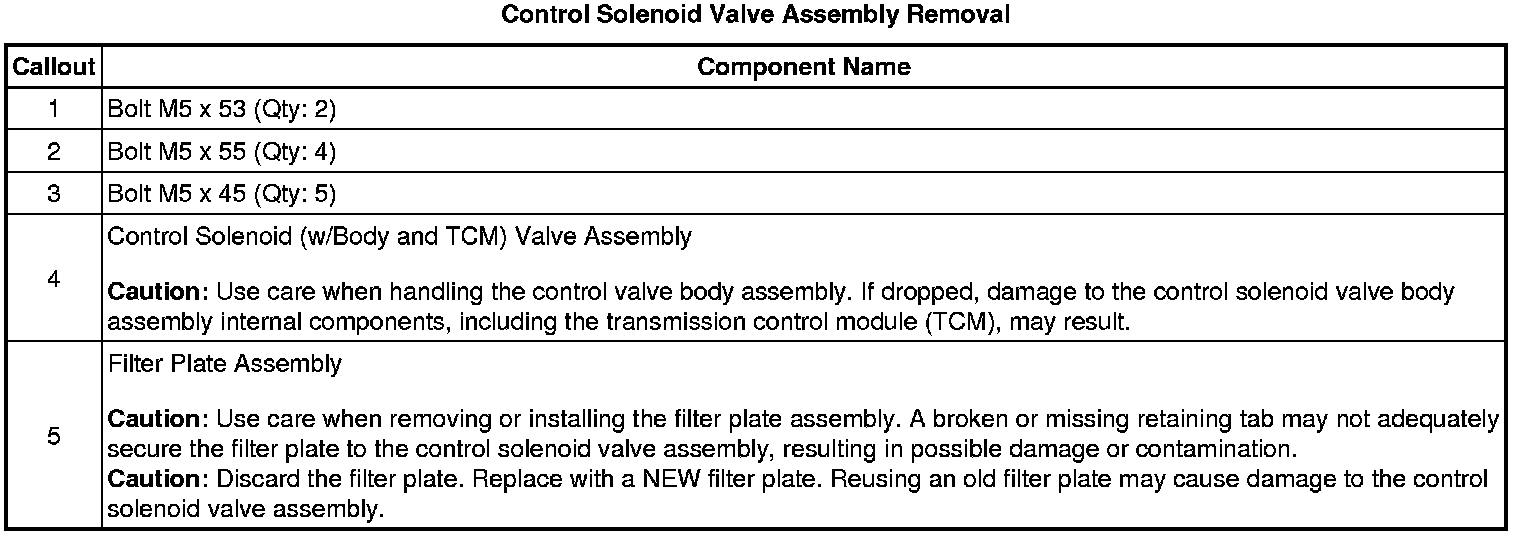

Control Solenoid Valve Assembly Removal

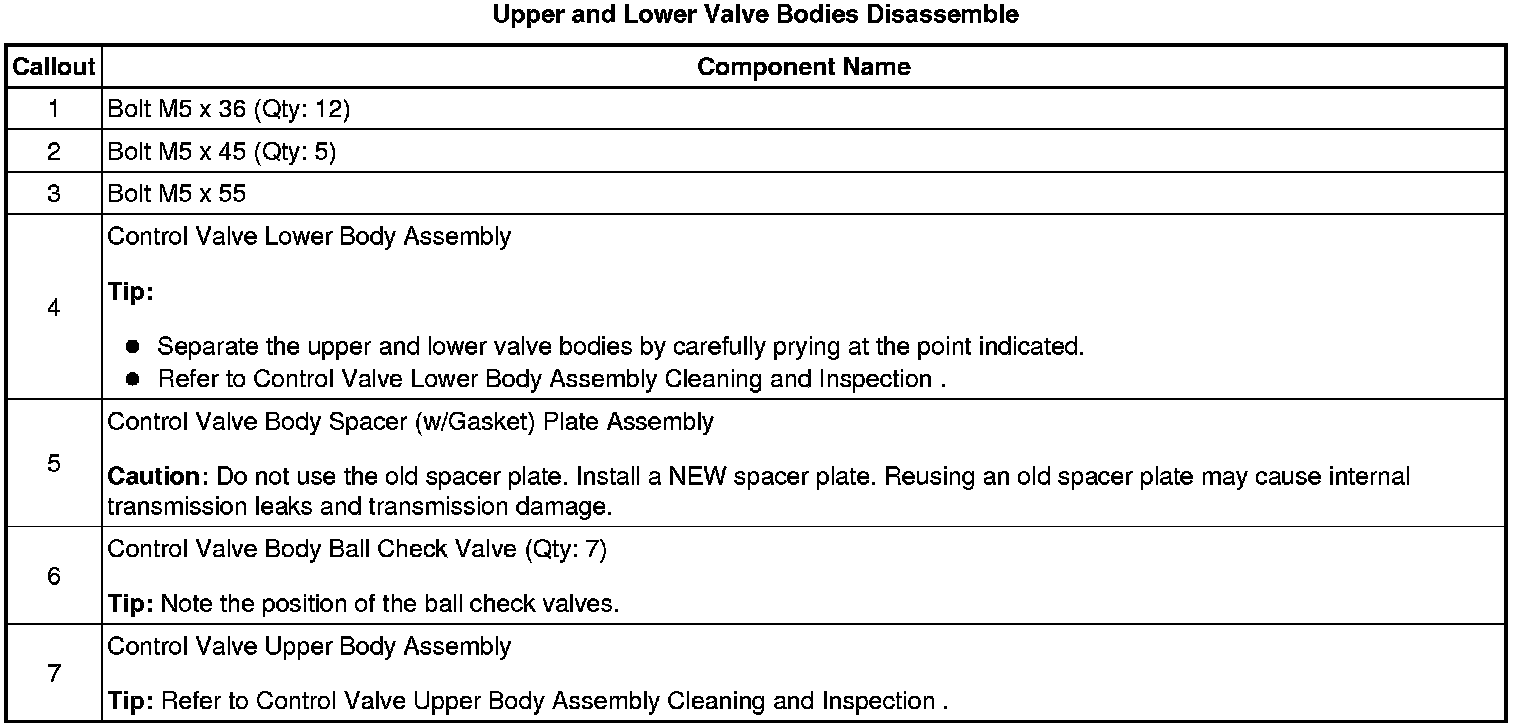

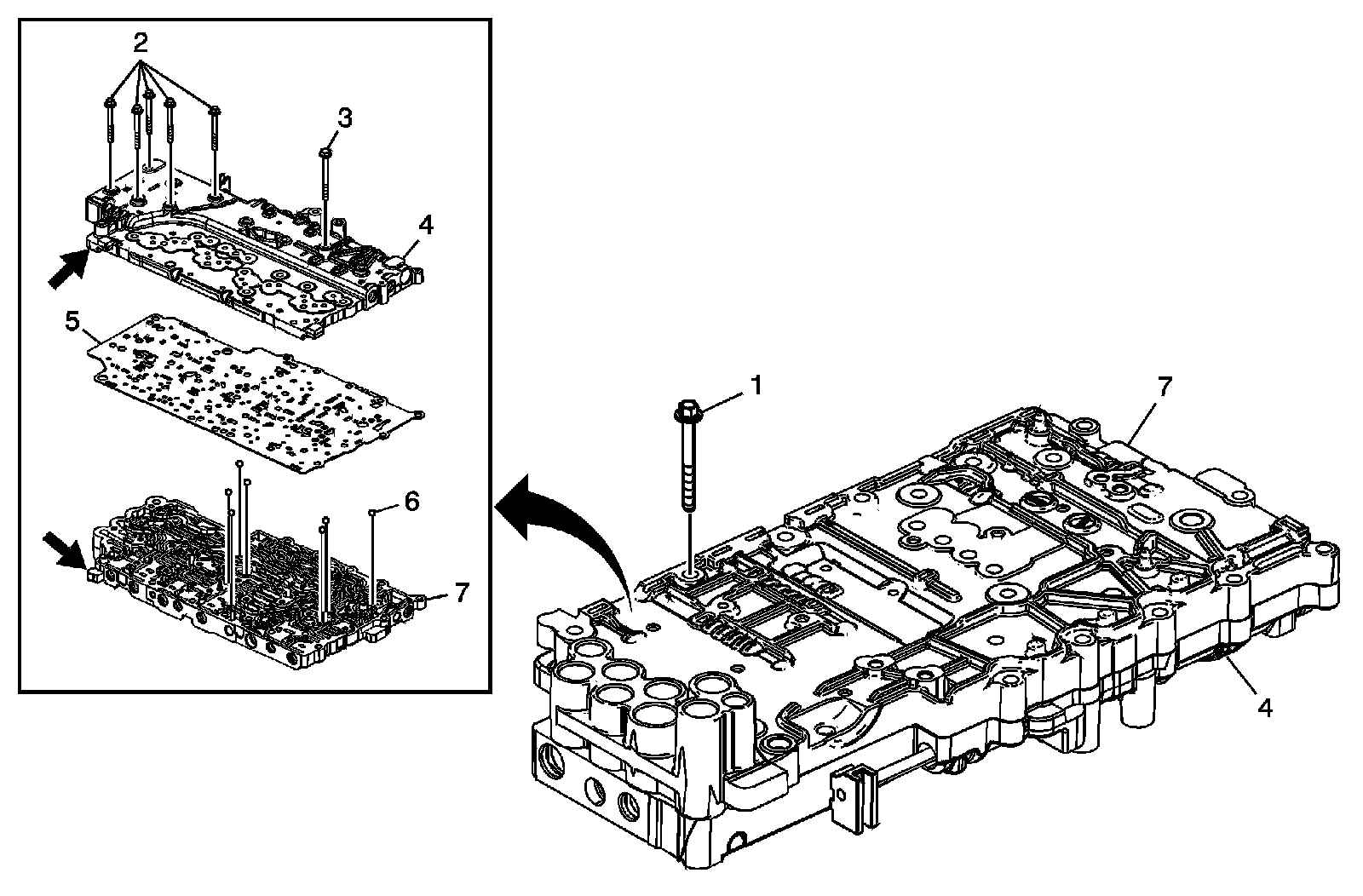

Upper and Lower Valve Bodies Disassemble
