Converter Housing Removal




Converter Housing Removal

Special Tools
* DT-49037 - MorTorq Bit
* J 41510 - T-50 Plus Bit

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

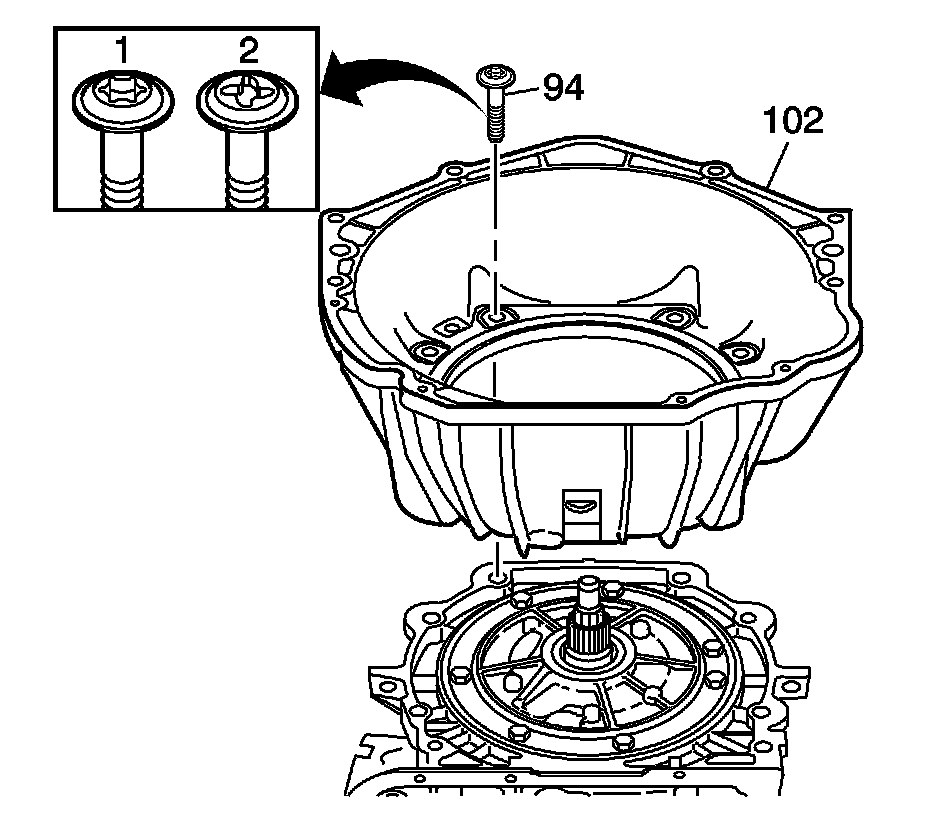

1. Remove the converter housing bolts (94). Use the J 41510 - T-50
plus bit for bolt (1) and DT-49037 - mortorq bit for bolt (2).
2. Remove the converter housing (102).
