Oil Pump Disassemble




Oil Pump Disassemble

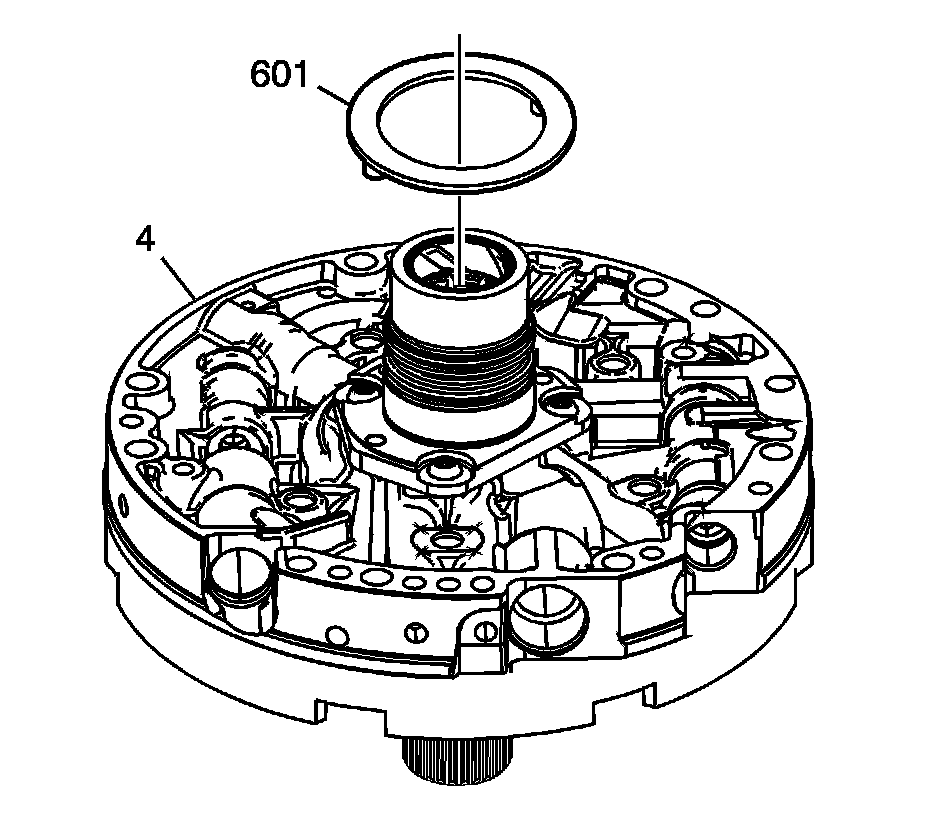

1. Remove the thrust (pump to drum) washer (601).




2. Remove the pump cover bolts (233).
3. Remove the pump cover (215) from the pump body (200).
