2-4 Band Servo Piston Pin Length Check




2-4 Band Servo Piston Pin Length Check

Special Tools

J 33037 - 2-4 Intermediate Band Apply Pin Gage

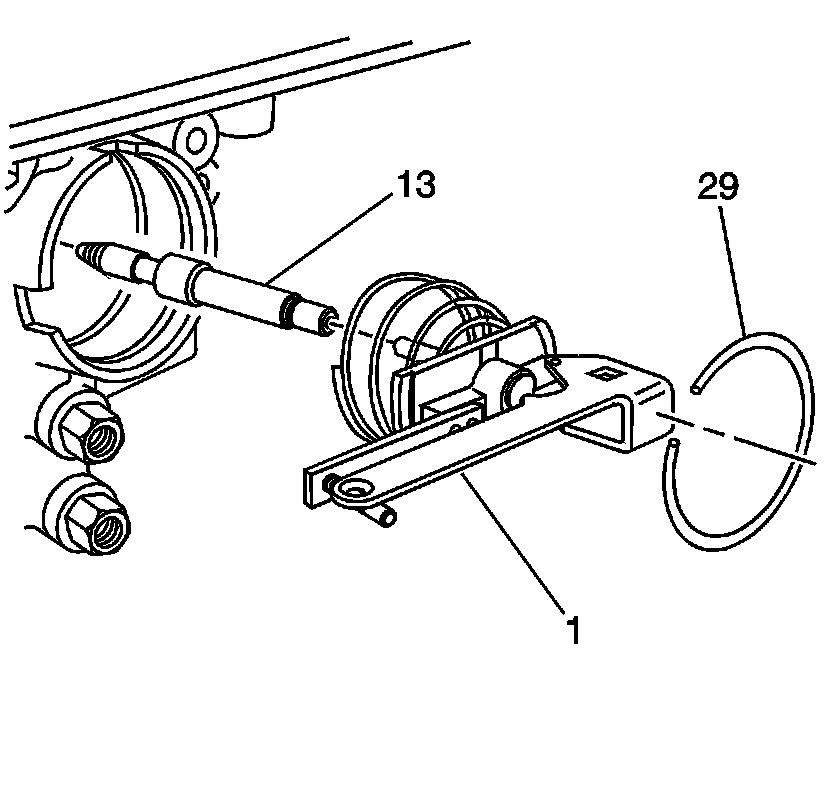

1. Install the band apply pin (13) and the J 33037 - pin gage.
2. Install the servo cover retaining ring (29) to secure the tool.

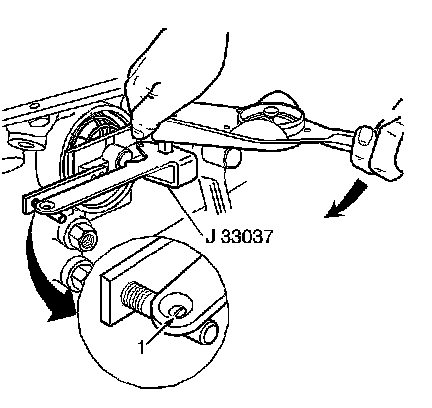

3. Apply 11 Nm(98 lb in) torque. If the white line appears in the gage slot (1), the pin length is correct.
4. If a new pin is needed, refer to 2-4 Band Servo Piston Pin Selection (2-4 Band Servo Piston Pin Selection) in order to determine the correct pin length.
