Parking Pawl: Service and Repair




6L50/6L80/6L90 - Automatic Transmission

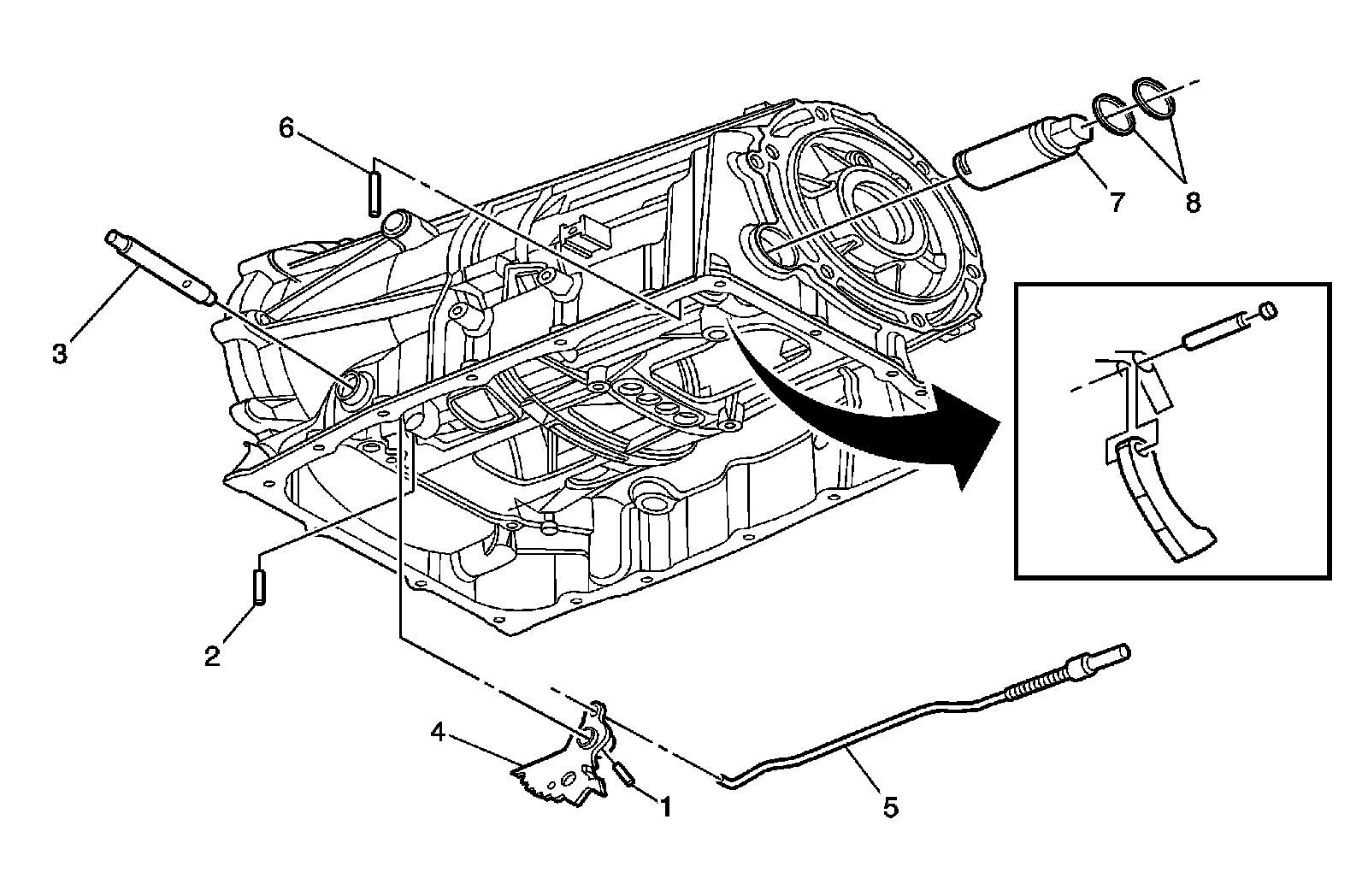

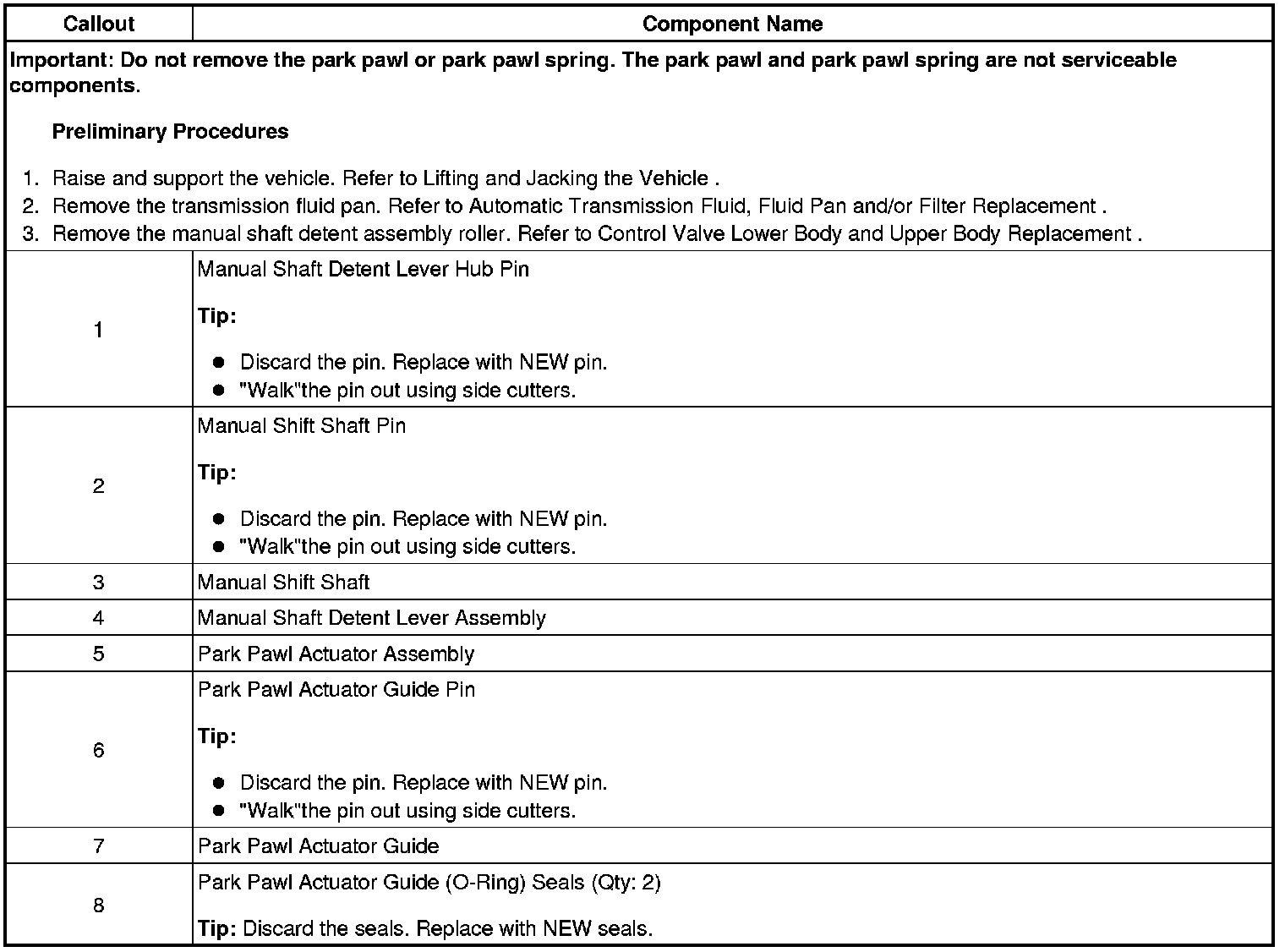

Manual Shift Detent Lever and Park Pawl Actuator Replacement
