Home >> GMC >> 2009 >> Yukon 2WD V8-5.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Service and Repair >> Temperature Valve Actuator Replacement - Right Side

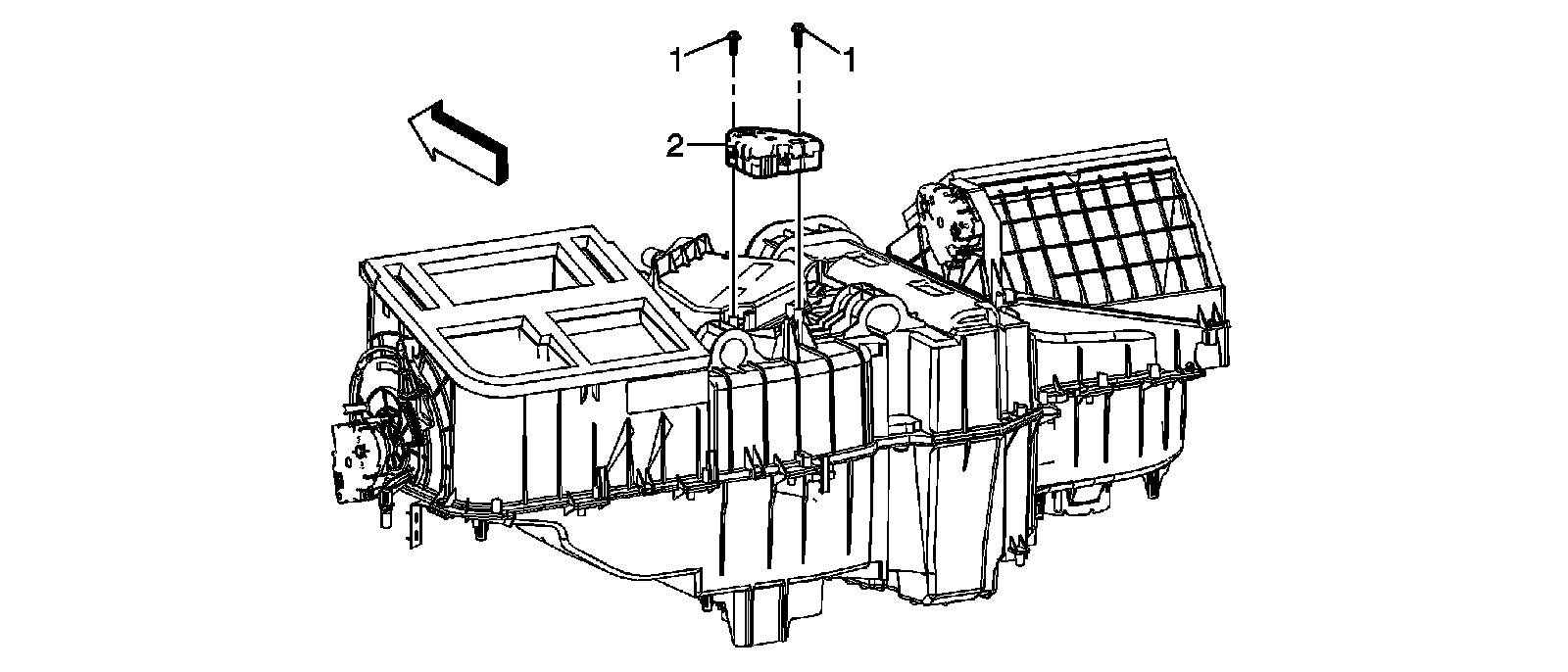

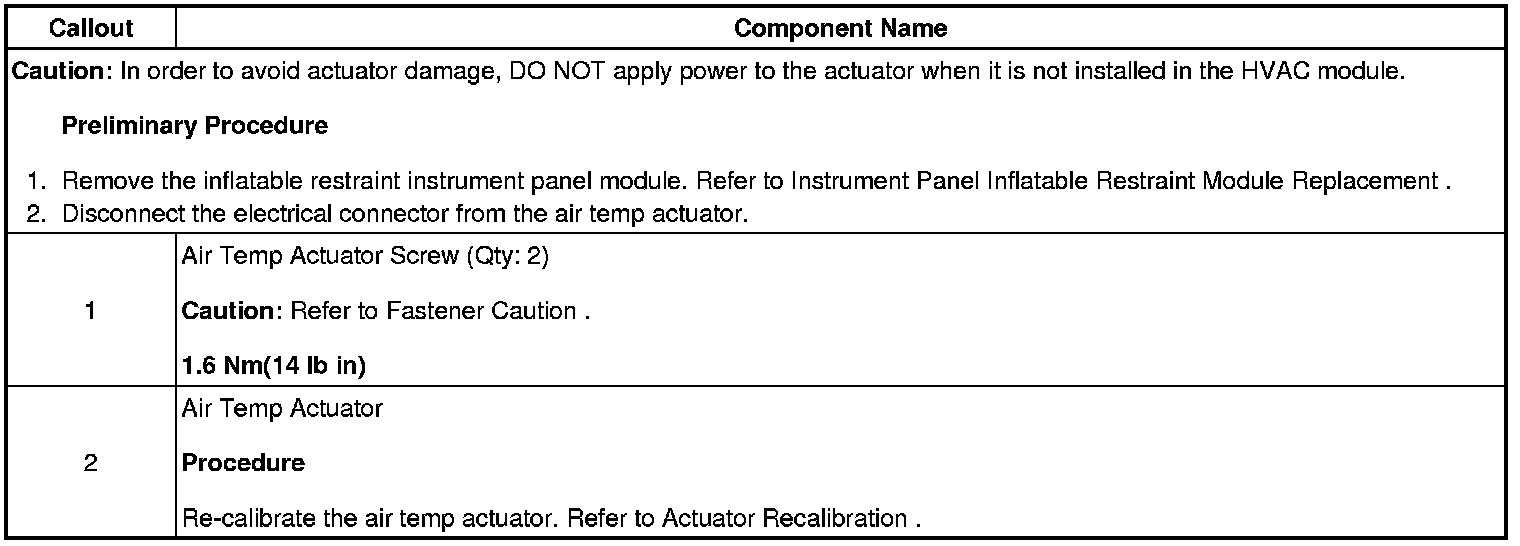

Temperature Valve Actuator Replacement - Right Side




Temperature Valve Actuator Replacement - Right Side
