90. Engine Coolant Air Bleed Pipe and Hole Cover Installation

Engine Coolant Air Bleed Pipe and Hole Cover Installation (RPO LC9/LY5/LMG/L76)





Note: Position the O-ring seal onto the nipple portion of the pipe.

1. Install the seals (308) onto the engine coolant air bleed pipe and covers.

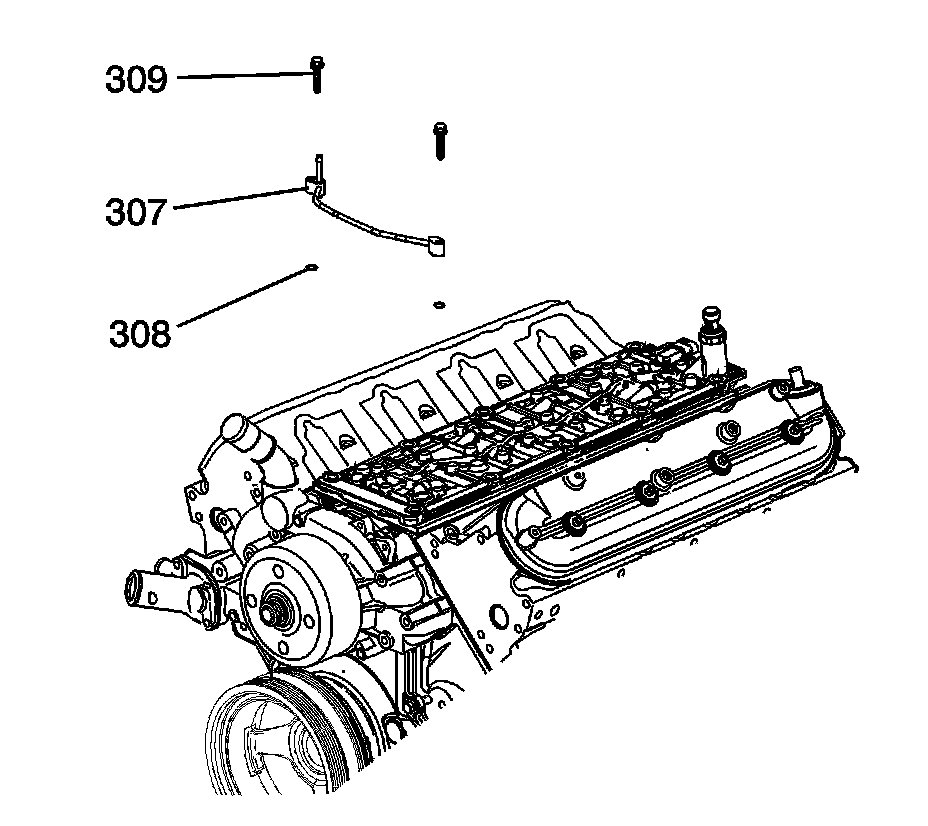

2. Install the pipe (307) and seals (308).

Caution: Refer to Fastener Caution (Fastener Caution)

3. Install the bolts (309) and tighten to 12 Nm(106 lb in).

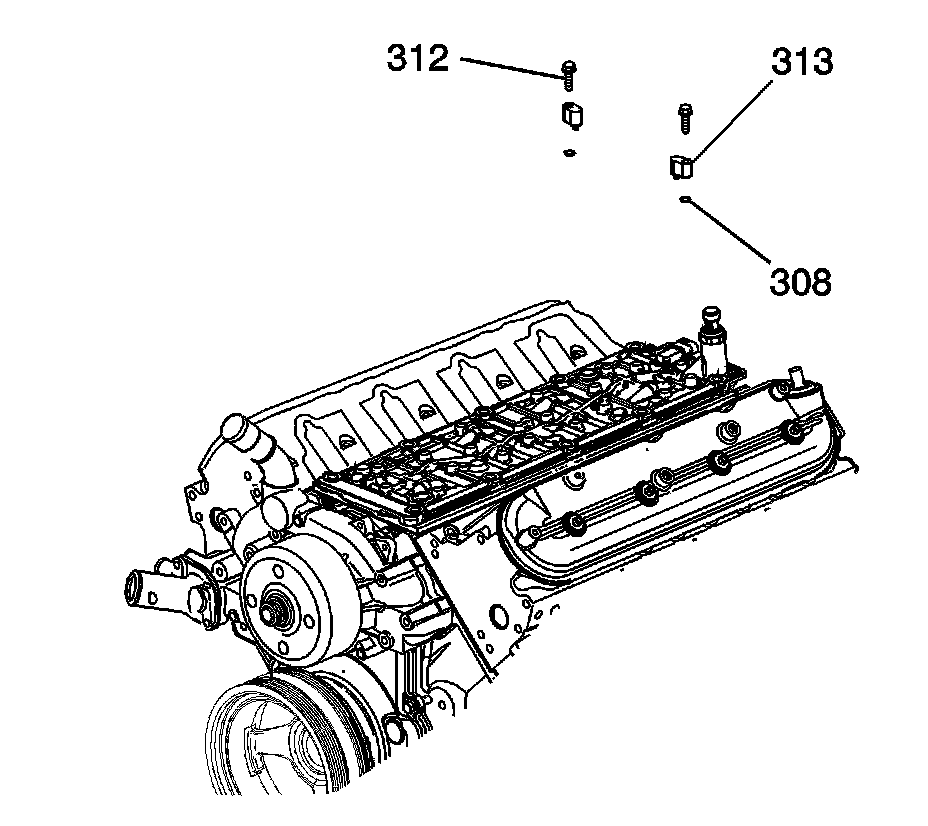

4. Install the covers (313) and seals (308).
5. Install the bolts (312) and tighten to 12 Nm(106 lb in).
