7. Water Pump Removal

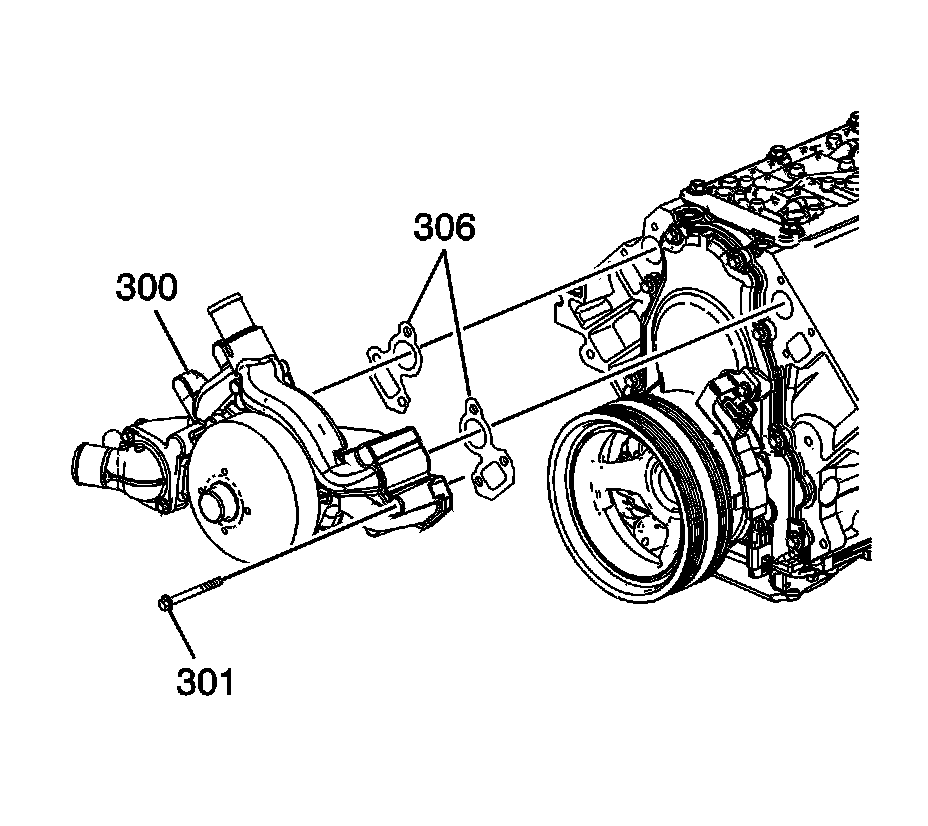

Water Pump Removal (RPO LY2/LC9/LY5/LMG)




1. Remove the water pump bolts (301).
2. Remove the water pump (300) and gaskets (306).
3. Discard the water pump gaskets.
