Engine Coolant Fan Replacement

Engine Coolant Fan Replacement (Non-HP2)

Removal Procedure




1. Remove the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement (Non-HP2) (Service and Repair)Cooling Fan and Shroud Replacement (HP2) (Service and Repair).

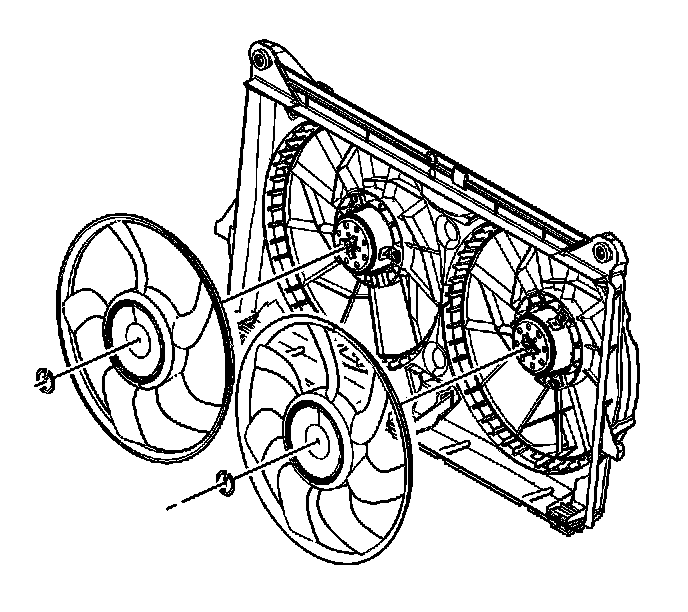

2. Remove the cooling fan blade retainers.
3. Remove the cooling fan blades.

Installation Procedure

Important: The electric cooling fan assembly uses a 5-blade fan and a 7-blade fan. It does not matter which side the fan blades are installed on. DO NOT install two 5-blade assemblies or two 7-blade assemblies, as this would cause a noise issue.





1. Install the cooling fan blades.
2. Install the cooling fan blade retainers.
3. Install the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement (Non-HP2) (Service and Repair)Cooling Fan and Shroud Replacement (HP2) (Service and Repair).
