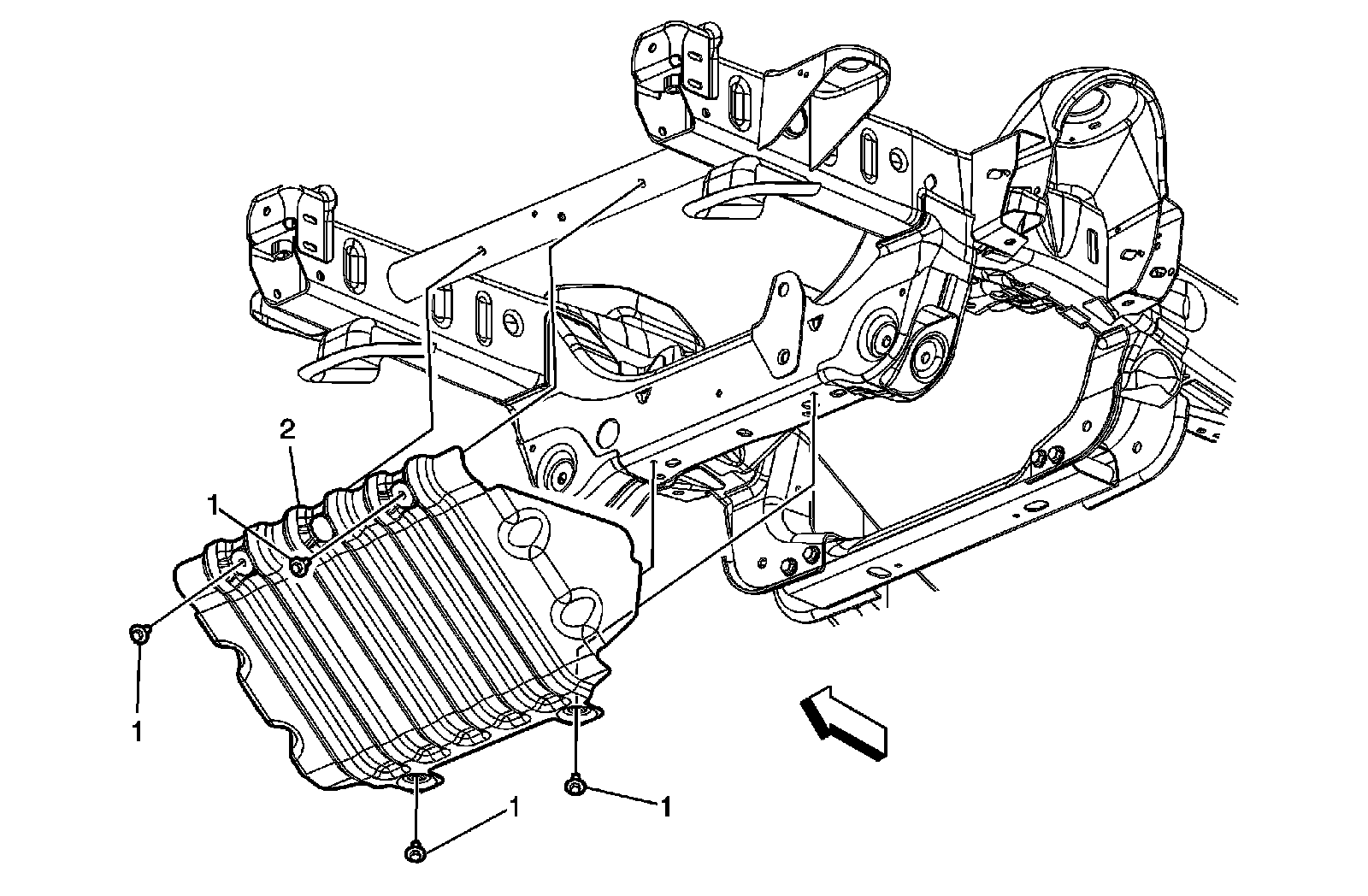

Engine Shield Replacement


Engine Shield Replacement

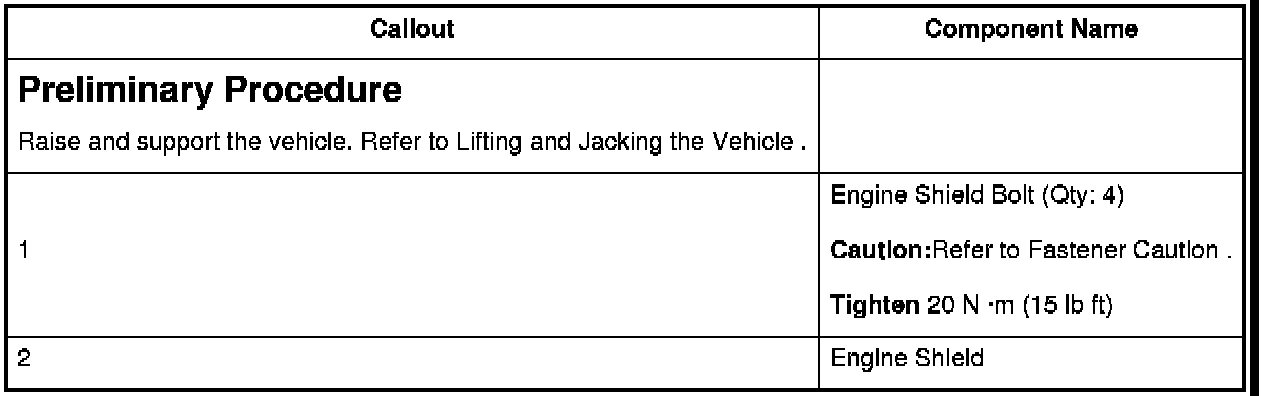

Preliminary Procedure

Caution:Refer to Fastener Caution.
Tighten
